Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: 3386 series
Payment & Shipping Terms
Range Of Nominal Resistance: |
10Ω~5MΩ |
Resistance Tolerance: |
±10% |
Terminal Resistance: |
≤±1%R Or 2Ω |
Contact Resistance Variation (CRV): |
≤±1%R Or 3Ω |
Insulation Resistance: |
≥ 1GΩ (100V AC) |
Withstand Voltage: |
500V (DC Or AC Peak Value) |
Effective Electrical Travel: |
≥250° |
Rated Power: |
0.5W ( 300V Max) |
Temperature Range: |
-55°C~+125°C |
TCR: |
±250×10-6/°C |
Collision (390m/S2, 4000 Times): |
ΔR≤±1%R |
Vibration (10-500HZ, 0.75mm, 6h): |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical Break≤100μS |
Temperature Variation (-55°C/30min, +125°C/30min, 5 Cycles): |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
Climate Category (IEC68-2-2): |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
Electrical Endurance (0.5W, 1000h): |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R Or 5Ω |
Mechanical Endurance (200 Cycles): |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R Or 5Ω |
Steady Damp Heat (IEC68-2-3, Ca, 96h): |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
Total Mechanical Travel: |
300°±10° |
Starting Torque: |
≤20mN.m |
Stopper Torque: |
≤75mN.m |
Standard Package: |
50 Pcs /tube |
Range Of Nominal Resistance: |
10Ω~5MΩ |
Resistance Tolerance: |
±10% |
Terminal Resistance: |
≤±1%R Or 2Ω |
Contact Resistance Variation (CRV): |
≤±1%R Or 3Ω |
Insulation Resistance: |
≥ 1GΩ (100V AC) |
Withstand Voltage: |
500V (DC Or AC Peak Value) |
Effective Electrical Travel: |
≥250° |
Rated Power: |
0.5W ( 300V Max) |
Temperature Range: |
-55°C~+125°C |
TCR: |
±250×10-6/°C |
Collision (390m/S2, 4000 Times): |
ΔR≤±1%R |
Vibration (10-500HZ, 0.75mm, 6h): |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical Break≤100μS |
Temperature Variation (-55°C/30min, +125°C/30min, 5 Cycles): |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
Climate Category (IEC68-2-2): |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
Electrical Endurance (0.5W, 1000h): |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R Or 5Ω |
Mechanical Endurance (200 Cycles): |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R Or 5Ω |
Steady Damp Heat (IEC68-2-3, Ca, 96h): |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
Total Mechanical Travel: |
300°±10° |
Starting Torque: |
≤20mN.m |
Stopper Torque: |
≤75mN.m |
Standard Package: |
50 Pcs /tube |
product name:

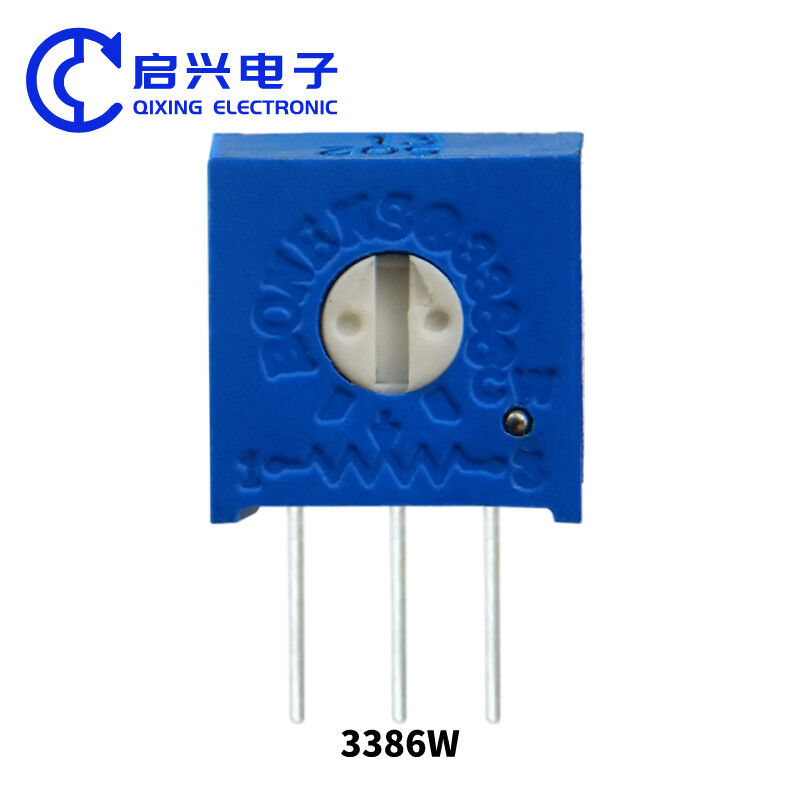

3386 series single turn metal glass glaze preset Potentiometer
product description:
The 3386 Potentiometer is one of the glass glazed precision single loop adjustable Potentiometer. The color of the product is generally blue, and occasionally it is specially customized. 3386 Potentiometer are divided into Potentiometer with handles and Potentiometer without handles. The handles are 8mm, 3mm and 5mm long. The 3386 Potentiometer is widely used in communication products, security products, instruments, digital products, electronic medical equipment, household appliances, computers and other fields. The 3386 Potentiometer models include 3386P, 3386F, 3386W, 3386X, 3386Y, 3386MP, etc.
Product Features:
Characteristics of 3386 Single Circle Metal Glass Glaze Potentiometer
1.3386 Potentiometer can be made into various types of Potentiometer.
2.3386 Potentiometer has high resolution, and its resistance can change continuously.
3.3386 The Potentiometer has a long service life.
4.3386 Potentiometer has simple manufacturing process and low price.
5.3386 The resistance range of Potentiometer is wide.
6.3386 The sliding temperature coefficient and noise of Potentiometer are large.
7.3386 Potentiometer has poor temperature resistance and humidity resistance, which is more suitable for use in places with good environmental conditions.
Product size:
Specification parameters:
| Electrical Characteristics |
Range of nominal resistance | 10KΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω | |||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||
| Insulation resistance | ≥ 1GΩ (100V AC) | |||||
| Withstand voltage | 500V (DC or AC peak value) | |||||
| Effective electrical travel | ≥250° | |||||
|
Characteristics |
Rated power | 0.5W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Physical Characteristics |
Total mechanical travel | 300°±10° | ||||
| Starting torque | ≤20mN.m | |||||
| Stopper torque | ≤75mN.m | |||||
| Standard package | 50 pcs /tube | |||||
application area:
Widely used in various electronic devices, including audio devices, electronic instruments, communication equipment, etc. It is commonly used for functions such as calibrating circuits, adjusting volume, and controlling brightness.
product catalog:
There are two types of glass glaze pre adjustment potentiometers: multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
