Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: 3362 series
Payment & Shipping Terms
Range Of Nominal Resistance: |
10Ω~5MΩ |
Resistance Tolerance: |
±10% |
Terminal Resistance: |
≤±1%R Or 2Ω |
Contact Resistance Variation (CRV): |
≤±1%R Or 3Ω |
Insulation Resistance: |
≥ 1GΩ (100V AC) |
Withstand Voltage: |
500V (DC Or AC Peak Value) |
Effective Electrical Travel: |
≥200° |
Rated Power: |
0.25W ( 300V Max) |
Temperature Range: |
-55°C~+125°C |
TCR: |
±250×10-6/°C |
Collision (390m/S2, 4000 Times): |
ΔR≤±1%R |
Vibration (10-500HZ, 0.75mm, 6h): |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical Break≤100μS |
Temperature Variation (-55°C/30min, +125°C/30min, 5 Cycles): |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
Climate Category (IEC68-2-2): |
ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ |
Electrical Endurance (0.25W, 1000h): |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R Or 5Ω |
Mechanical Endurance (200 Cycles): |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R Or 5Ω |
Steady Damp Heat (IEC68-2-3, Ca, 96h): |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
Total Mechanical Travel: |
260°±10° |
Starting Torque: |
≤20mN.m |
Stoper Torque: |
≥50mN.m |
Standard Package: |
50 Pcs /tube |
Range Of Nominal Resistance: |
10Ω~5MΩ |
Resistance Tolerance: |
±10% |
Terminal Resistance: |
≤±1%R Or 2Ω |
Contact Resistance Variation (CRV): |
≤±1%R Or 3Ω |
Insulation Resistance: |
≥ 1GΩ (100V AC) |
Withstand Voltage: |
500V (DC Or AC Peak Value) |
Effective Electrical Travel: |
≥200° |
Rated Power: |
0.25W ( 300V Max) |
Temperature Range: |
-55°C~+125°C |
TCR: |
±250×10-6/°C |
Collision (390m/S2, 4000 Times): |
ΔR≤±1%R |
Vibration (10-500HZ, 0.75mm, 6h): |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical Break≤100μS |
Temperature Variation (-55°C/30min, +125°C/30min, 5 Cycles): |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
Climate Category (IEC68-2-2): |
ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ |
Electrical Endurance (0.25W, 1000h): |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R Or 5Ω |
Mechanical Endurance (200 Cycles): |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R Or 5Ω |
Steady Damp Heat (IEC68-2-3, Ca, 96h): |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
Total Mechanical Travel: |
260°±10° |
Starting Torque: |
≤20mN.m |
Stoper Torque: |
≥50mN.m |
Standard Package: |
50 Pcs /tube |

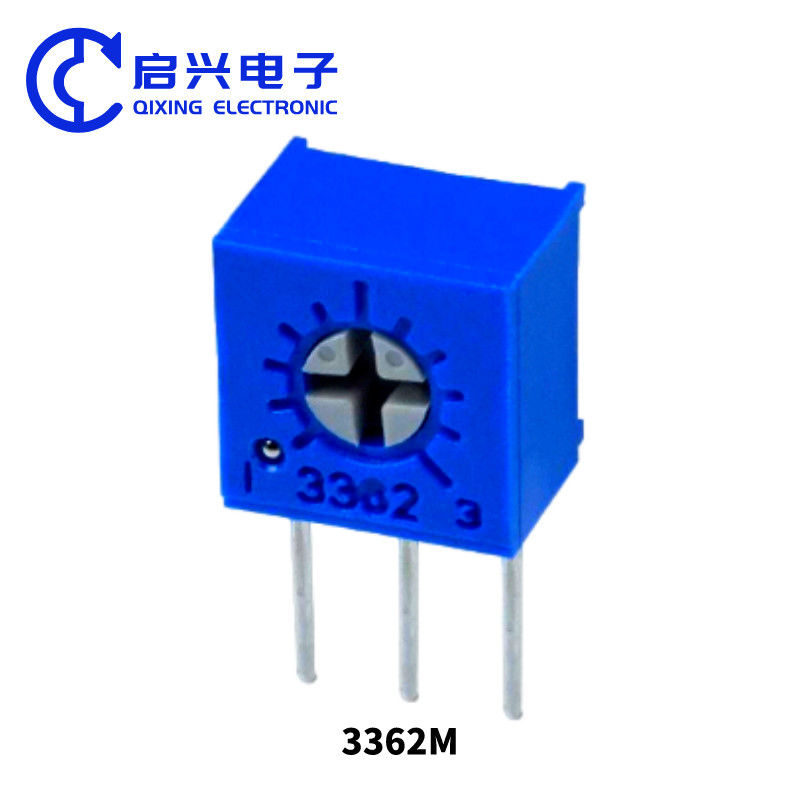

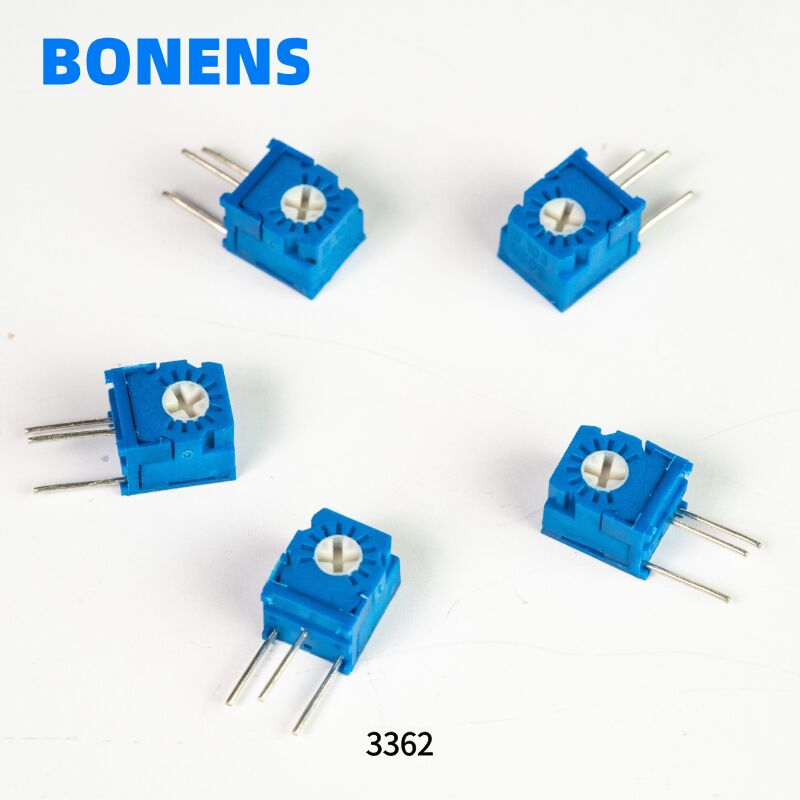

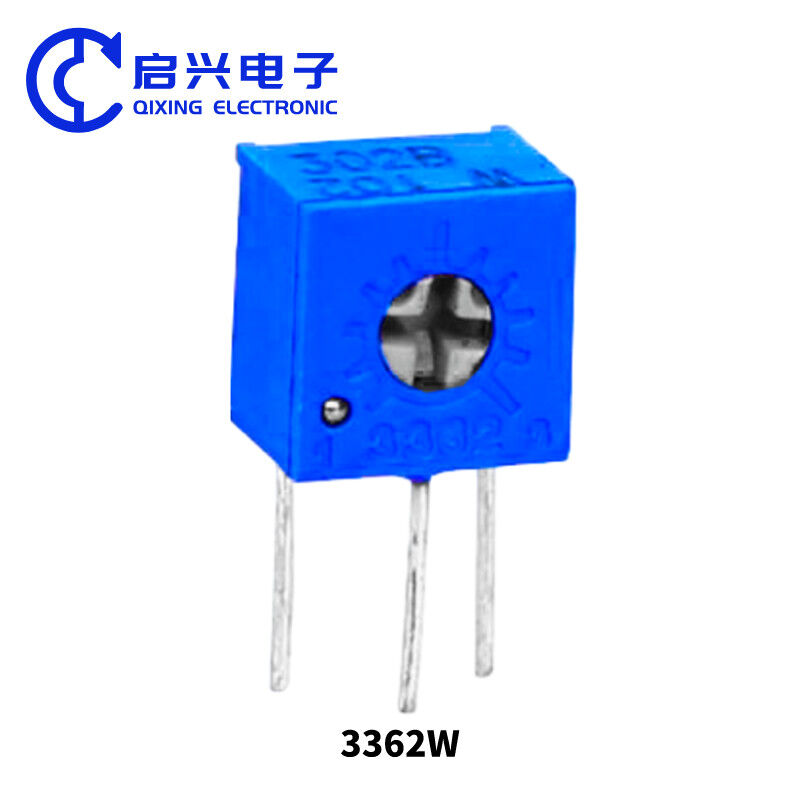

3362 Series Single Turn Metal Glass Glaze Trim Potentiometer
product name:
3362 series single turn metal glass glaze preset Potentiometer
product description:
3362 series metal glass glaze preset Potentiometer is a single turn adjustable Potentiometer, metal ceramic Potentiometer, micro package, and the rotor is designed for the automatic adjustment interface of the machine; Sealed, capable of withstanding harsh environments and immersion cleaning; Built-in board bracket and multi wire brush can effectively reduce contact resistance changes
Product Features:
The 3362 Series Metal Glass Glaze Trimmer Potentiometer is an adjustable electronic component that uses glass glaze as a resistive material with high accuracy and stability. Small dimensions, rated power of 0.25W, effective stroke of 260°, suitable for some small electronic equipment adjustment. The 3362 glass glaze pre-regulator has the characteristics of high reliability and long life, and is suitable for some equipment that needs to work stably for a long time.
Product size:
Specification parameters:
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω | |||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||
| Insulation resistance | ≥ 1GΩ (100V AC) | |||||
| Withstand voltage | 500V (DC or AC peak value) | |||||
| Effective electrical travel | ≥200° | |||||
Environment Characteristics |
Rated power | 0.25W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ |
|||||
| Electrical endurance (0.25W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |||||
| Physical Characteristics | Total mechanical travel | 260°±10° | ||||
| Starting torque | ≤20mN.m | |||||
| Stoper torque | ≥50mN.m | |||||
| Standard package | 50 pcs /tube | |||||
application area:
The 3362 singleturn trimmer potentiometer can be used in a variety of electronic devices such as audio amplifiers, filters, frequency meters, etc
product catalog:
There are two types of glass glaze pre adjustment potentiometers: multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
