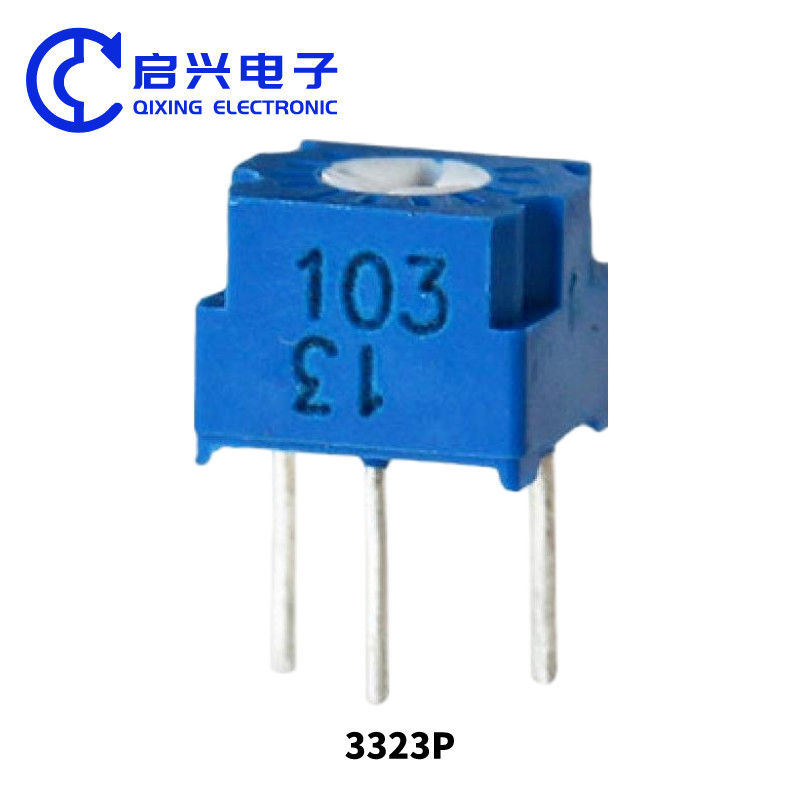

3323 Series Single Turn Metal Glass Glaze Trim Potentiometer
product name:
Series 3323 Single Turn Glass Glaze Trimmer Potentiometers
product description:
The 3323 series single coil metal glass glaze fine adjustment potentiometer is a common type of glass glaze pre adjustment potentiometer. This potentiometer is a precision adjustable potentiometer that is typically rotated using a screwdriver, colored blue, and has three legs. It is widely used in fields such as circuit protection devices and industrial controllers.
Product Features:
The 3323 Single Turn Metal Glass Glaze Pre-Regulating Potentiometer is a precision adjustable potentiometer with the following features:
1. Consists of three feet, which can be rotated all the way with a screwdriver.
2. The color is generally blue.
3. Two adjustment positions with high resistance value and low resistance value, which can be used for circuit control and protection.
4. Using metal glass glaze technology, it has high heat resistance, corrosion resistance, impact resistance and other properties.
5. It can be fine-tuned and has high adjustment accuracy.
6. Widely used in the adjustment and matching of electronic equipment.
7. With high accuracy and stability, it can ensure the normal operation of the circuit.
Product size:
Specification parameters:
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% |
|||||
| Terminal resistance | ≤±1%R or 2Ω |
|||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
|||||
| Insulation resistance | ≥ 1GΩ (100V AC) |
|||||
| Withstand voltage | 500V (DC or AC peak value) |
|||||
| Effective electrical travel | ≥200° |
|||||
Environment Characteristics |
Rated power | 0.5W ( 300V max) | ||||
| Temperature range | -55°C~+125°C |
|||||
| TCR | ±250×10-6/°C |
|||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ |
|||||
| Electrical endurance (0.25W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Physical Characteristics | Total mechanical travel | 270°±10° | ||||
| Starting torque | ≤20mN.m |
|||||
| Stoper torque | ≥50mN.m | |||||
| Standard package | 50 pcs /tube |
|||||
application area:
Products are widely used in the fields of instrumentation, electrical appliances, audio equipment, communications, medical equipment, security products, industrial control televisions, telephones, office automation equipment, and information and communication equipment.
product catalog:
There are two types of glass glaze pre adjustment potentiometers: multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
