PRODUCT NAME

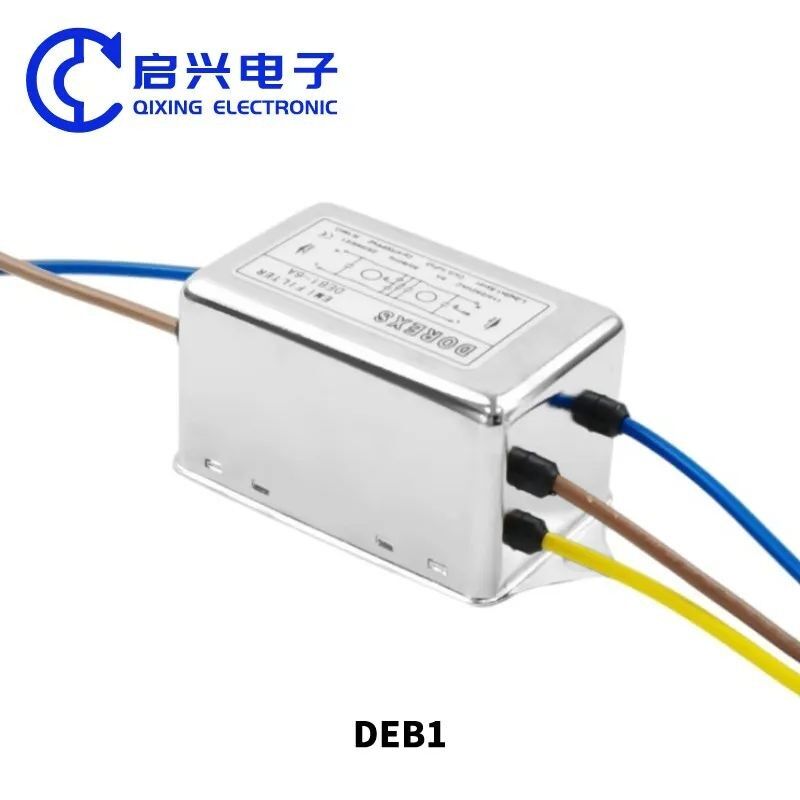

220VAC single-phase two-stage power line filter DEB1 1A 3A 6A EMI Filter AC 220VAC power supply noise filter
PRODUCT INTRODUCTION
This series of products produced by our company has a good suppression effect on differential mode interference and common mode interference of 10khz-30mhz. It has low price, good performance, and supports various parameter customization; the wiring method is convenient and fast to install and easy to use. Quick installation. It has good performance in solving high-frequency interference from 100khz-30mhz. It has been widely used in various electrical appliances, testing equipment, medical equipment, fire protection systems, laser cutting equipment, urban security monitoring systems, stage lighting equipment, power grid control systems, LED lighting drive systems, industrial automation robots and other complex fields. It can effectively ensure the normal and safe operation of these devices, effectively reduce equipment failures, and reduce the interference of high-frequency signals to peripheral equipment and the power grid.
PRODUCT FEATURES
Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
Rated current: 20A---30A
Universal series filters with favorable price and low cost
Has good suppression effect on common mode and differential mode interference
,
ELECTRICAL CHARACTERISTICS
| Rated voltage | 115/250VAC |
| Rated frequency | 50/60Hz |
| Test power supply | 1500VDC (line/line) |
| Test power supply | 2150VAC (line/ground) |
| Insulation resistance | >50MΩ@500VDC |
| climate category | 25/085/21 |
PRODUCT MODEL
| odel | Rated current | leakage current | Connection method | Safety certification | Remark | |
| enter | output | |||||
| DEB1-1A | 3A | <2.0mA | Wire | Wire | CE CQC,ROHS |
Support parameter customization |
| DEB1-3A | 6A | <2.0mA | Wire | Wire | ||
| DEB1-6A | 10A | <2.0mA | Wire | Wire | ||
PRODUCT INTERNAL CIRCUIT DIAGRAM
PRODUCT SIZE
INSERTION LOSS
————Common Mode ----------Differential Mode
DEB1-1A DEB1-3A
DEB1-6A
PRODUCTION PACKAGING
APPLICATION AREA
Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment
