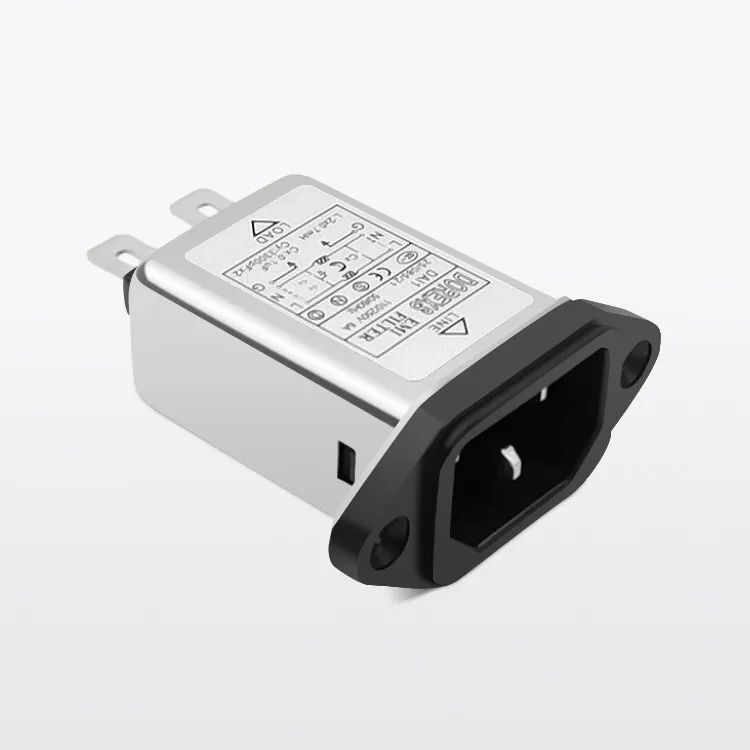

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter

Product Details

Place of Origin: Chengdu, Sichuan

Brand Name: BONENS

Model Number: DAI1

Payment & Shipping Terms

Get Best Price
Highlight:
DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter

product name:

DAI1 series IEC type socket -type anti -interference for electrical equipment EMI power filter 1A 3A 6A 10A

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 0



Product introduction:

The DAI1 series EMI power cord noise filter uses high -quality manganese zinc iron oxygen magnetic ring and capacitor. The process quality is first -class and excellent performance. This series of products has a standard IEC socket input interface, modular design, small volume, low price, and solving 1MHz-30MHz high-frequency interference performance. Has a good co -mode and differential interference inhibitory. The product design is simple, but the performance is good, the connection is convenient, easy to use, and the price is low.

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 1



PRODUCT FEATURES



■ Single -phase AC 220VAC Power Noise Noise Filter (DC Lifting)
■ Basic type, price discount, low cost
■ Standard 6.3*0.8 interface output, convenient and fast
■ It has a good inhibitory effect on the interference of common models and differential models

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 2

ELECTRICAL CHARACTERISTICS





Rated voltage 115/250VAC
Rated frequency 50/60Hz
Test power supply 1500VDC (line/line)
Test power supply 2150VAC (line/ground)
Insulation resistance >50MΩ@500VDC
climate category 25/085/21



PRODUCT MODEL



Model Rated current Leakage current Product internal circuit diagram Safety certification remark
DAI1-1A 1A <0.5mA DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 3

CUL,CE

ROHS
Support parameter customization
DAI1-3A 3A <0.5mA
DAI1-6A 6A <0.5mA
DAI1-10A 10A <0.5mA



PRODUCT SIZE

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 4

INSERTION LOSS



————共模(Common Mode)----------差模(Differential Mode)
DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 5DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 6
                                   DAI1-1A                                                                          DAI1-3A
DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 7DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 8
                                    DAI1-6A                                                                       DAI1-10A

PRODUCTION PACKAGING

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 9

APPLICATION AREA



Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

DAI1 1A 3A 6A 10A IEC outlet IEC emi line filter 10
