Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Certification: CE,ROHS
Model Number: DAC41-D
Payment & Shipping Terms
Name: |
Three-phase Power Filter DAC41-D |
Model: |
DAC41-D |
Rated Current: |
6A-30A |
Rated Voltage: |
380/440VAC |
Rated Frequency: |
50/60Hz |
Test Power Supply: |
1500VDC (line/line) 2750VAC (line/ground) |
Insulation Resistance: |
>50MΩ@500VDC |
Climate Category: |
25/085/21 |
Safety Certification: |
CE,ROHS |
Remark: |
Support Parameter Customization |
Housing Material: |
Iron Nickel Plating |
Name: |
Three-phase Power Filter DAC41-D |
Model: |
DAC41-D |
Rated Current: |
6A-30A |
Rated Voltage: |
380/440VAC |
Rated Frequency: |
50/60Hz |
Test Power Supply: |
1500VDC (line/line) 2750VAC (line/ground) |
Insulation Resistance: |
>50MΩ@500VDC |
Climate Category: |
25/085/21 |
Safety Certification: |
CE,ROHS |
Remark: |
Support Parameter Customization |
Housing Material: |
Iron Nickel Plating |
PRODUCT NAME:

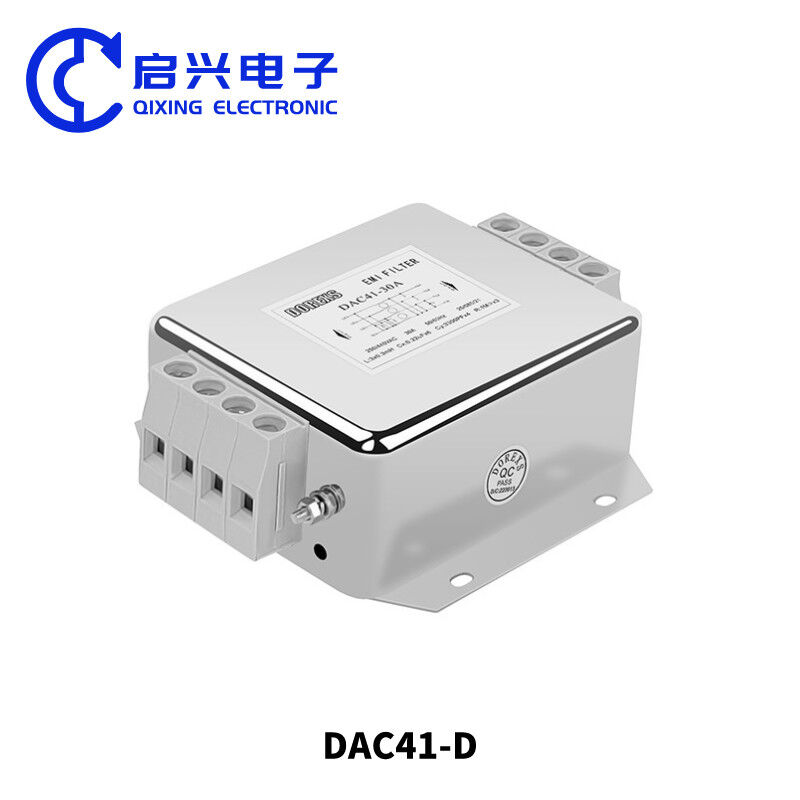

DAC41-D Series Three-phase four-wire AC 380VAC/440VAC power supply noise filter EMI EMC Low Pass Filter Rated current 6A 10A 20A 30A
PRODUCT INTRODUCTION:
This series of products produced by our company has the characteristics of standard filter circuit design, small size, low price, and good performance in solving 1Mhz-30Mhz high-frequency interference. It has been widely used in various three-phase system switching power supplies, UPS and other power electronic equipment, distribution cabinets and other three-phase power electronic equipment and other complex electromagnetic interference environment equipment to ensure the normal and safe operation of these equipment and effectively reduce equipment failures. efficiency, reduce the interference of high-frequency signals to peripheral equipment and power grid, and protect your EMC service radiation testing.
PRODUCT FEATURES
1. Rated current: 6A-30A
2. Good low-frequency performance, suitable for high current equipment
3. Terminal block connection method, easy and fast installation
4. Customizable according to requirements
ELECTRICAL CHARACTERISTICS
| Rated voltage | 380/440VAC |
| Rated frequency | 50/60Hz |
| Test power supply | 1500VDC (line/line) |
| Test power supply | 2750VAC (line/ground) |
| Insulation resistance | >50MΩ@500VDC |
| climate category | 25/085/21 |
PRODUCT MODEL
| model | Rated current | leakage current | Shell model | Connection method | safety certificate | Remark | |
| input | output | ||||||
| DAC41-D-6A | 6A | <2.0mA | C41 | Terminal block | Terminal block | CE,ROHS | Parameters support customization |
| DAC41-D-10A | 10A | <2.0mA | C41 | Terminal block | Terminal block | ||
| DAC41-D-20A | 20A | <3.0mA | C41 | Terminal block | Terminal block | ||
| DAC41-D-30A | 30A | <3.0mA | C41 | Terminal block | Terminal block | ||
PRODUCT SIZE
PRODUCT INTERNAL CIRCUIT DIAGRAM
PRODUCT SIZE
INSERTION LOSS
————共模(Common Mode)----------差模(Differential Mode)
PRODUCTION PACKAGING
APPLICATION AREA
Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment
