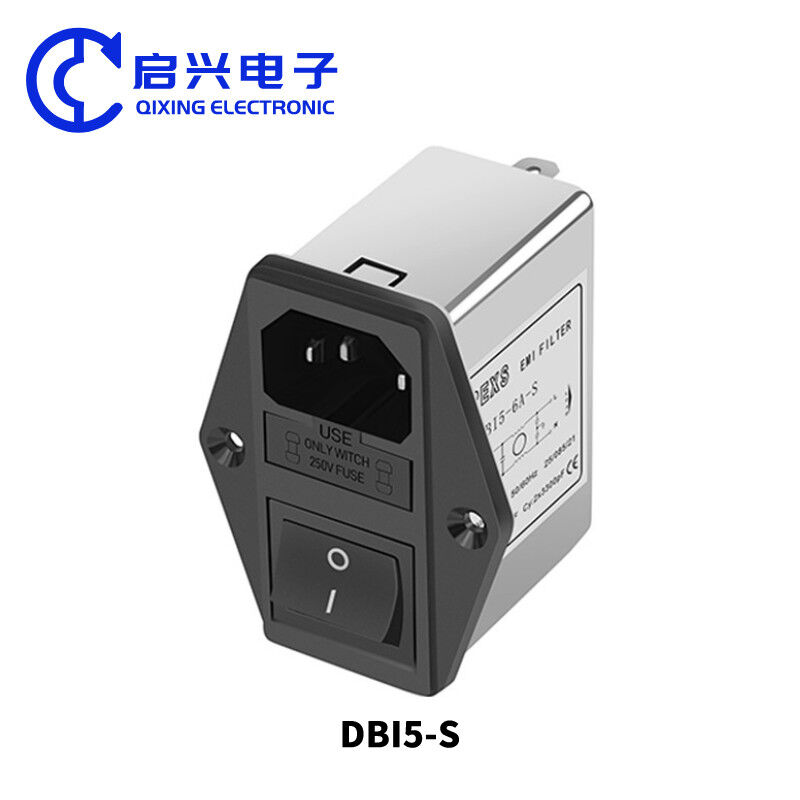

DBI5-S EMI Filter With Dual Fuse And Switch IEC Socket Power Filter

DBI5-S EMI Filter with dual fuse and switch IEC socket power filter

PRODUCT NAME:

DBI5 6A,1A,3A,10A EMI Filter With Fuse IEC socket type with safety switch power filter

PRODUCT INTRODUCTION:

The DBI5-S series EMI power line noise filter adopts high-quality manganese zinc ferrite magnetic rings and capacitors, with first-class technology and excellent performance. Our company produces a series of products with standard IEC socket input interfaces, ship shaped switches, and an integrated modular design with 2 fuses.

The DBI5-S series EMI power line noise filter is widely used in various electrical appliances, detection equipment, medical equipment, animation and entertainment game consoles, fire protection systems, urban security monitoring systems, audio equipment, and other equipment in complex electromagnetic interference environments to ensure the normal operation of the equipment.

The DBI5-S series EMI power line noise filter is very popular in both domestic and international markets, and many customers around the world have contacted us for bulk procurement.

PRODUCT FEATURES

■Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
■Current 1A-10A
■IEC socket with single fuse and double fuse 3-in-1 filter module
■Standard 6.3*0.8 interface output, convenient and fast

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Product internal circuit diagram	Safety certification	Remark
DBI5-1A-S	1A	<0.5mA		CUL, CE ROHS	Support parameters can be customized
DBI5-3A-S	3A	<0.5mA
DBI5-6A-S	6A	<0.5mA
DBI5-10A-S	10A	<0.5mA

PRODUCT INTERNAL CIRCUIT DIAGRAM

PRODUCT SIZE

INSERTION LOSS

————Common Mode----------Differential Mode

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

​
