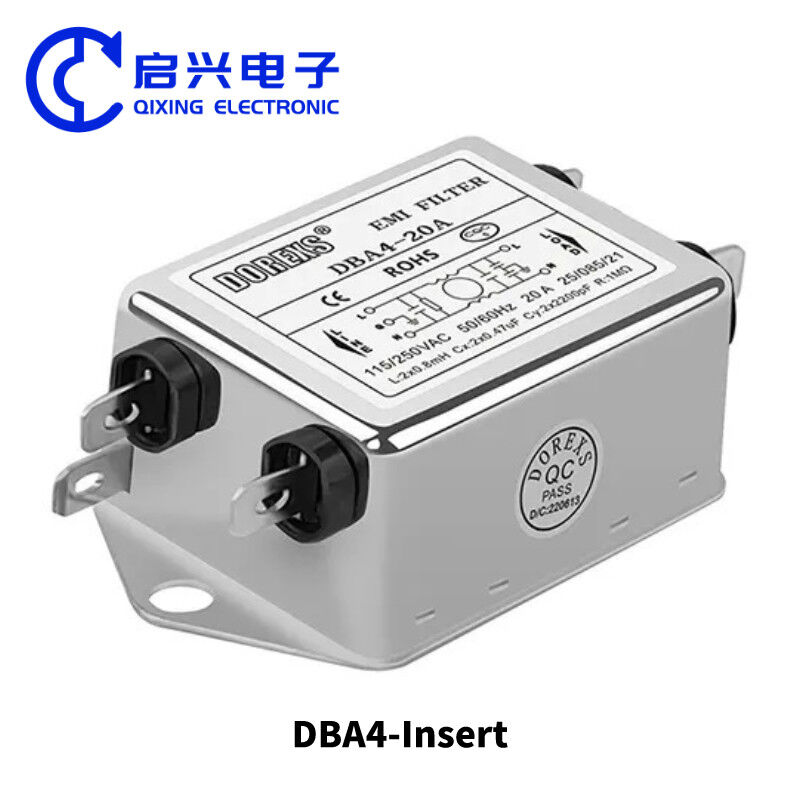

Single Phase EMI Power Filter 220V DBA4 Series Current 20A-30A

PRODUCT NAME:

Single Phase Filter 250vac EMI Power Filter Noise Suppressor Power Filter Low Pass 115/250vac DBA4 Screw Metal Case 20~100db

Single-phase universal power filter EMI power filter 220V DBA4 series current 20A-30A

PRODUCT INTRODUCTION

This series of products of our company features small size and low price; there are 3 connection methods for you to choose from: wire/brass bolt/standard 6.3*0.8 shortcut socket, which is easy to use and quick to install. It has relatively good performance in solving high-frequency interference from 1Mhz-30MHZ. They have been widely used in various household appliances, testing equipment, medical equipment, fire protection systems, laser cutting equipment, urban security monitoring systems, stage lighting equipment, power grid control systems, LED lighting drive systems, industrial automation robots and other complex electromagnetic interference Environmental equipment ensures the normal and safe operation of these equipment, effectively reduces equipment failure rates, reduces the interference of high-frequency signals to peripheral equipment and power grids, and protects your EMC conducted radiation testing

PRODUCT FEATURES

■Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
■Rated current: 20A--30A
■Universal series filters with favorable price and low cost
■Has good suppression effect on common mode and differential mode interference

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Connection method		Product internal circuit diagram	Safety certification	Remark
			enter	output
DBA4-10A	10A	<0.5mA	Bolt/Insert	Bolt/Insert		CUL, CE CQC, ROHS	Support parameters can be customized
DBA4-20A	20A	<0.5mA	Bolt/Insert	Bolt/Insert
DBA4-30A	20A	<0.5mA	Bolt/Insert	Bolt/Insert

PRODUCT INTERNAL CIRCUIT DIAGRAM

PRODUCT SIZE

INSERTION LOSS

————Common Mode----------Differential Mode

                               DBA4-20A/DBA4-30A

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

​

PRODUCT CATALOG

CERTIFICATION​

MANUFACTURING

EXHIBITION

AUTHENTICATION

COMPANY PROFILE

Sichuan Qixing Electronics Co., Ltd. is a professional company engaged in the development, production, and sales of potentiometer, resistor, filter, potentiometer knob, band switch, and capacitor products. We were established in 2005 and have many years of production experience. Our company headquarters is located in Wenjiang District, Chengdu City, Sichuan Province, China.

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
