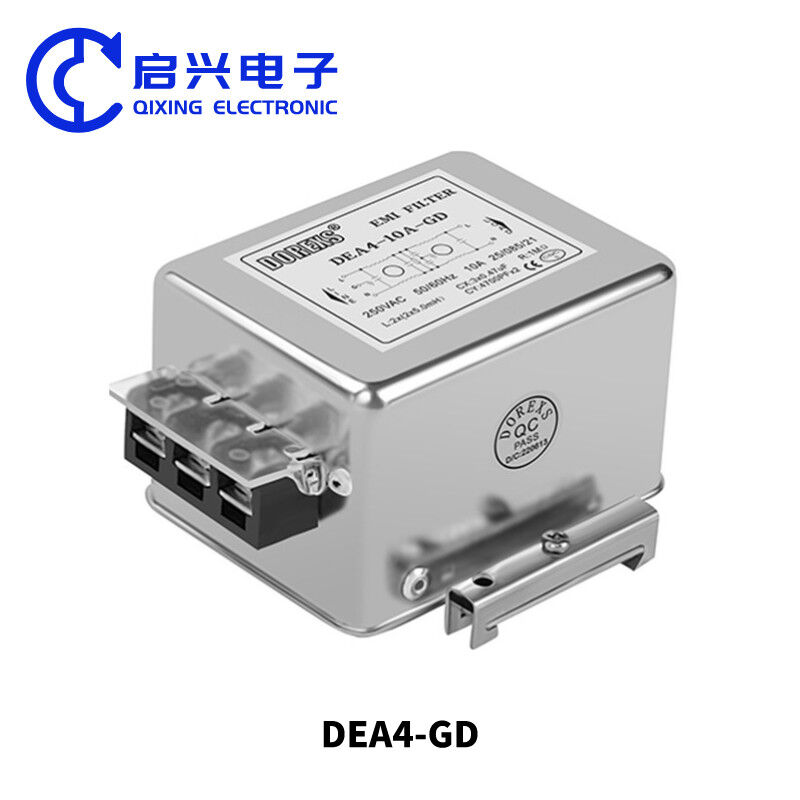

DEA4-GD Rail Series EMI Filter 3A-20A Single Phase High Performance Power Filter

DEA4-GD rail series EMI Filter 3A-20A Single phase high performance power filter

PRODUCT NAME

DEA4-GD single-phase dual stage 220V power filter single-phase single-phase high-performance AC rail filter

PRODUCT INTRODUCTION

This series of products has a very good suppression effect on 100Khz-30MHZ differential mode interference and common mode interference, cheap price, good performance, and supports various parameter customization; Wire or copper bolt 2 connection methods for you to choose, easy to use, quick to install. It has a very good performance for solving high-frequency interference of 100Khz-30MHZ. They have been widely used in automation control systems, information security management systems, inverter equipment, various motor distribution cabinets, medical equipment, urban security monitoring systems, power grid control systems, industrial automation robots and other complex electromagnetic interference environment equipment, to ensure the normal and safe operation of these equipment, effectively reduce the equipment failure rate, reduce the interference of high-frequency signals on peripheral equipment and power grid, and escort your EMC conducted radiation test.

PRODUCT FEATURES

■Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
■Rated current: 3A---20A
■Double filter circuit design, power cord connection, easy and quick installation
■In the 10Khz-30Mhz frequency band, it has very good common mode and Differential mode interference suppression capability

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Connection method	Product internal circuit diagram		Safety certification	Remark	model
				Input	Output
DEA4-3A-GD	3A	<2.0mA	A4	bolt	bolt		CE,ROHS,CUL,CQC	Support parameter customization
DEA4-6A-GD	6A	<2.0mA	A4	bolt	bolt
DEA4-10A-GD	10A	<2.0mA	A4	bolt	bolt
DEA4-20A-GD	20A	<2.0mA	A4	bolt	bolt

PRODUCT INTERNAL CIRCUIT DIAGRAM

PRODUCT SIZE

INSERTION LOSS

————Common Mode----------Differential Mode

                                          DEA4-6A-GD                                                                                                                     DEA4-10A-GD

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

​
