Product features:

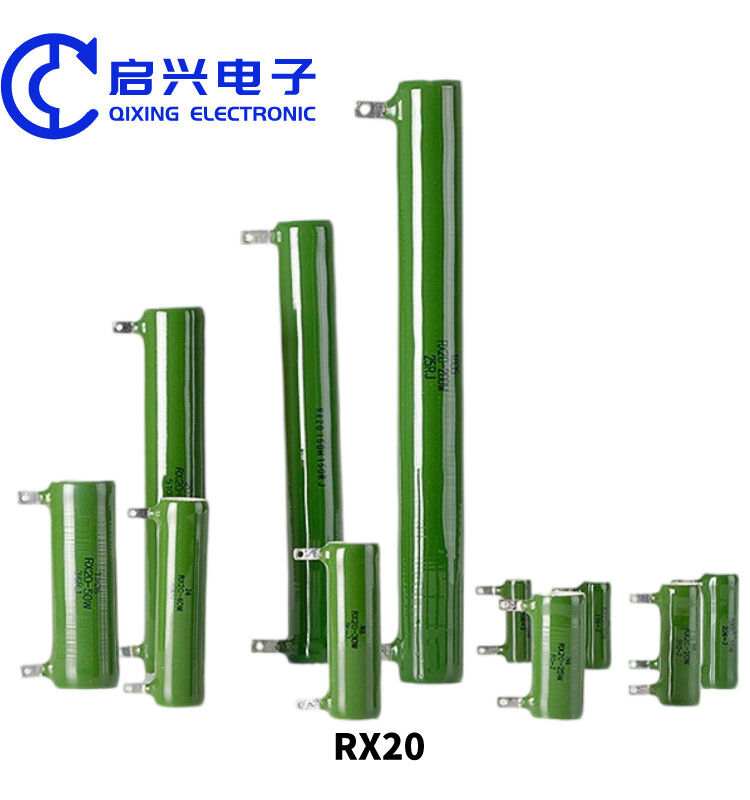

RX20 wirewound resistor, surface insulation high temperature resistant coating, with high power, strong overload resistance, high voltage resistance (refers to the voltage between the electrode and the mounting bracket).
RX20 is coated with painted wire-wound resistors to insulate and withstand high temperature, with high power, strong overload resistance, and high voltage resistance (refers to the pressure between the electrode and the mounting bracket)
Specifications:
| Power range | 10W-10000W. |
| Voltage range- | 0.5KV-10KV. |
| Resistance Range | 1R-1KR. |
| Pressure- | AC2500V / 1min50Hz. |
| IP rating | IP00. |
| Rated temperature- | 375 ℃, short-term / repeat 40% ED. |
| Thermal equilibrium time constant | τ = 200s. |
| Advantages | High voltage. |
| Packing-- | carton packaging. |
| Disadvantages | poor shock resistance |
Applications:
simulated loads, discharge equipment, industrial/automation industry
Product size:
Product size chart:
| specification |
power (W) |
L1±2 | L2±2 | L3±3 | D±2 | H±2 | H1±2 | B±0.5 | N±0.5 | T±0.2 | Φd±0.2 |
Resistance range (Ω) |
weight (G) |
| RX20 | 10W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 |
| 20W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 | |
| 30W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 | |
| 40W | 85 | 105 | 125 | 20 | 20 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 90 | |
| 50W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 | |
| 60W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 | |
| 75W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 | |
| 80W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 | |
| 100W | 170 | 200 | 225 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 230 | |
| 150W | 215 | 245 | 270 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 300 | |
| 200W | 267 | 295 | 322 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 390 | |
| 300W | 267 | 290 | 317 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 550 | |
| 400W | 330 | 353 | 380 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 690 | |
| 500W | 330 | 348 | 364 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 850 | |
| 800W | 430 | 448 | 464 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 1900 | |
| 1000W | 430 | 455 | 480 | 60 | 60 | 118 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2250 | |
| 1500W | 430 | 460 | 492 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2650 | |
| 2000W | 430 | 460 | 492 | 80 | 80 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3000 | |
| 2500W | 500 | 530 | 562 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3500 | |
| 3000W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 | |
| 3500W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 | |
| 4000W | 500 | 530 | 560 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4650 | |
| 5000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 | |
| 6000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 |
*Note: The size is for reference only, specific size and selection need to be consulted. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 3000.
Finished product identification code:
| RX20 | 50 | 10R | J |
| Product category | Rated power | Resistance value | precision |
| RX20 series |
50=50W 100=100W |
R1=0.1Ω 100R=100Ω |
F=±1% G=±2% H=±3% J=±5% K=±10% |
Remarks: RX20 50W 10Ω ±5%, Model: RX20-50-10RJ; Low inductance, add the letter N to the model number, for example: N RX20-50-10RJ
Resistor usage recommendations
Resistor in the use of circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance so you need to use 2W resistance.
