Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: RX20
Payment & Shipping Terms
Packaging Details: Carton packaging
Model Number: |
Rx20 |
Brand Name: |
BONENS |
Power Range: |
10W-10000W |
Resistance Tolerance: |
±5% |
Voltage Range: |
0.5KV-10KV |
Resistance Range: |
1R-1KR |
Pressure: |
AC2500V / 1min50Hz |
Rated Temperature: |
375 ℃, Short-term / Repeat 40% ED |
Advantages: |
High Voltage |
Packing: |
Carton Packaging |
Model Number: |
Rx20 |
Brand Name: |
BONENS |
Power Range: |
10W-10000W |
Resistance Tolerance: |
±5% |
Voltage Range: |
0.5KV-10KV |
Resistance Range: |
1R-1KR |
Pressure: |
AC2500V / 1min50Hz |
Rated Temperature: |
375 ℃, Short-term / Repeat 40% ED |
Advantages: |
High Voltage |
Packing: |
Carton Packaging |
Product features:

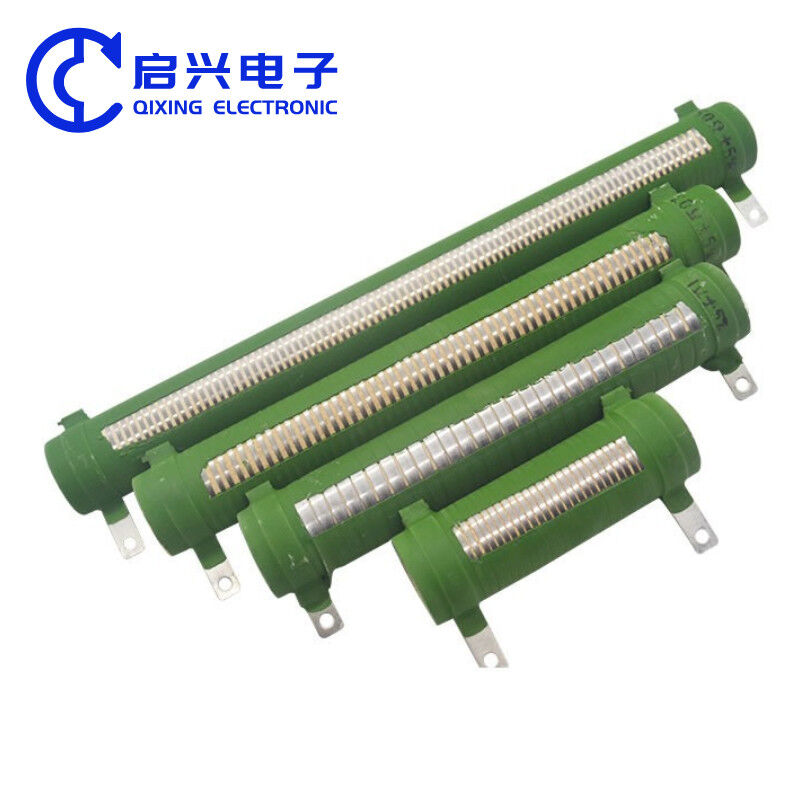

RX20 wirewound resistor, surface insulation high temperature resistant coating, with high power, strong overload resistance, high voltage resistance (refers to the voltage between the electrode and the mounting bracket).
Specifications:
| Power range | 10W-10000W. |
| Voltage range- | 0.5KV-10KV. |
| Resistance Range | 1R-1KR. |
| Pressure- | AC2500V / 1min50Hz. |
| IP rating | IP00. |
| Rated temperature- | 375 ℃, short-term / repeat 40% ED. |
| Thermal equilibrium time constant | τ = 200s. |
| Advantages | High voltage. |
| Packing-- | carton packaging. |
| Disadvantages | poor shock resistance |
Applications:
simulated loads, discharge equipment, industrial/automation industry
Product size:
Product size chart:
|
power (W) |
L1±2 | L2±2 | L3±3 | D±2 | H±2 | H1±2 | B±0.5 | N±0.5 | T±0.2 | Φd±0.2 |
Resistance range (Ω) |
weight (G) |
| 10W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 |
| 20W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 |
| 30W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 |
| 40W | 85 | 105 | 125 | 20 | 20 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 90 |
| 50W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 |
| 60W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 |
| 75W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 |
| 80W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 |
| 100W | 170 | 200 | 225 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 230 |
| 150W | 215 | 245 | 270 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 300 |
| 200W | 267 | 295 | 322 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 390 |
| 300W | 267 | 290 | 317 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 550 |
| 400W | 330 | 353 | 380 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 690 |
| 500W | 330 | 348 | 364 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 850 |
| 800W | 430 | 448 | 464 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 1900 |
| 1000W | 430 | 455 | 480 | 60 | 60 | 118 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2250 |
| 1500W | 430 | 460 | 492 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2650 |
| 2000W | 430 | 460 | 492 | 80 | 80 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3000 |
| 2500W | 500 | 530 | 562 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3500 |
| 3000W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 |
| 3500W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 |
| 4000W | 500 | 530 | 560 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4650 |
| 5000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 |
| 6000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 |
*Note: The size is for reference only, specific size and selection need to be consulted. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 3000.
Finished product identification code:
| RX20 | 50 | 10R | J |
| Product category | Rated power | Resistance value | precision |
| RX20 series |
50=50W 100=100W |
R1=0.1Ω 100R=100Ω |
F=±1% G=±2% H=±3% J=±5% K=±10% |
Remarks: RX20 50W 10Ω ±5%, Model: RX20-50-10RJ; Low inductance, add the letter N to the model number, for example: N RX20-50-10RJ
Resistor usage recommendations
Resistor in the use of circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance so you need to use 2W resistance.
FAQ:
Q1. Can I order samples of LED lights?
A: Yes, we welcome ordering samples to test and inspect the quality. Mixed samples are acceptable.
Q2. What is the delivery cycle?
A: Sample preparation takes 3-5 days and mass production takes 8-10 working days.
Q3. Do you have a minimum order quantity limit for LED lights?
A: The minimum order quantity is low, and one sample can be provided for inspection.
Q4. How did you ship the goods and how long will it take to arrive?
A: Transport via DHL, UPS, FedEx, or TNT. It will take 3-5 days to arrive. Air and sea transportation are also optional.
Q5. How to process orders for LED lights?
A: First, let us know your request or application.Secondly, we will quote based on your requirements or our suggestions.Thirdly, the customer confirms the sample and deposits it as a formal order.Fourthly, we arrange production.
Q6. Can I print my logo on the LED product?
A: Yes. Please formally notify us before production.
Q7: Do you provide a guarantee for the product?
A: Yes, we offer a 5-year warranty for our products
