Home > products > Braking Resistors > 200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology

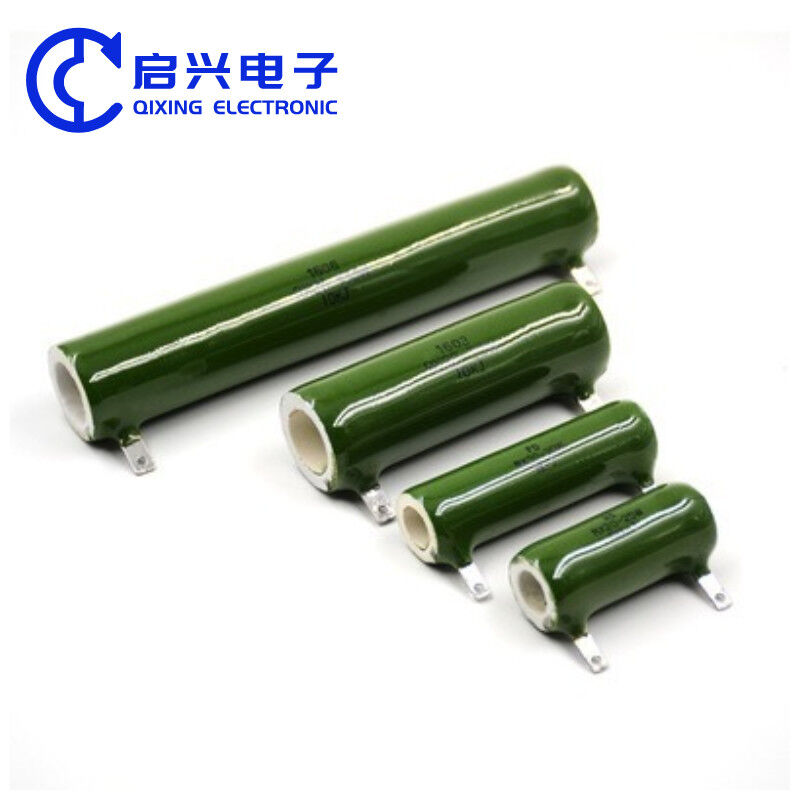

200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology

Product Details

Place of Origin: China

Brand Name: BONENS

Model Number: RX20

Payment & Shipping Terms

Packaging Details: Carton packaging

Get Best Price
Highlight:

Rx20 adjustable wirewound Braking Resistors

,

wirewound Braking Resistors 100w

,

Rx20 high power ceramic resistor

Model Number:
Rx20
Brand Name:
BONENS
Power Range:
10W-10000W
Resistance Tolerance:
±5%
Voltage Range:
0.5KV-10KV
Resistance Range:
1R-1KR
Pressure:
AC2500V / 1min50Hz
Rated Temperature:
375 ℃, Short-term / Repeat 40% ED
Advantages:
High Voltage
Packing:
Carton Packaging
Model Number:
Rx20
Brand Name:
BONENS
Power Range:
10W-10000W
Resistance Tolerance:
±5%
Voltage Range:
0.5KV-10KV
Resistance Range:
1R-1KR
Pressure:
AC2500V / 1min50Hz
Rated Temperature:
375 ℃, Short-term / Repeat 40% ED
Advantages:
High Voltage
Packing:
Carton Packaging
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology
product name
RX20 Glazed Enamel Ceramic Resistance Tube Type Wirewound Experimental Load Discharge Resistor
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 0
Features
1. The resistor power is from 10W-300W, and the electrical resistance is wirewound by glazed enamel ceramic resistance tubular type experimental load discharge resistance
2. The surface is glazed to resist pollution and high temperature
3. Fast production cycle
4. Customized resistors
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 1
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 2

DATA SHEET:

Rated power: 10W~1000W
Nominal resistance range: 0.1R-10KR
Standard resistance tolerance: ±5%
Temperature Coefficient: ≤ ±350ppm/℃
Voltage range 0.5KV-10KV
Pressure AC2500V / 1min50Hz
Thermal equilibrium time constant τ = 200s.
Application range

Instruments, cars, inverters, controllers,

elevators, power supplies, etc.

Advantages High voltage.
Packing carton packaging
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 3

Drawing
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 4
200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 5
The relationship between the allowable load of the resistor and the ambient temperature should meet the following requirements:

200W 50 Ohm 100 Ohm 200 Ohm Braking Resistors with Glazed Enamel Ceramic Technology 6
Packaging & Shipping
PACKAGING PICTURE:

RX20 Power wirewound resistor Braking resistance Aging load resistor



SHIPPING:

Shipped by DHL,UPS,FEDEX,TNT,EMS FOR SMALL QUANTITY & BY AIR OR SEA FOR LARGE QUANTITY

RX20 Power wirewound resistor Braking resistance Aging load resistor
