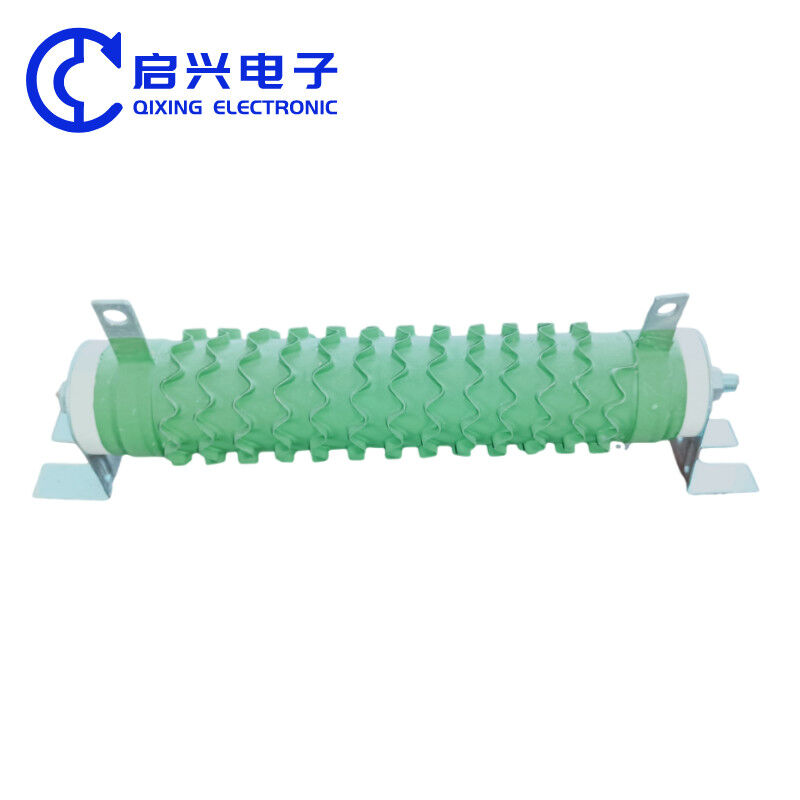

Adjustable Wirewound RX20 Braking Resistors with High Power and Overload Resistance
Specifications:
| Power range | 10W-10000W. |
| Voltage range- | 0.5KV-10KV. |
| Resistance Range | 1R-1KR. |
| Pressure- | AC2500V / 1min50Hz. |
| IP rating | IP00. |
| Rated temperature- | 375 ℃, short-term / repeat 40% ED. |
| Thermal equilibrium time constant | τ = 200s. |
| Advantages | High voltage. |
| Packing-- | carton packaging. |
| Disadvantages | poor shock resistance |
Applications:
simulated loads, discharge equipment, industrial/automation industry
Product size:
Product size chart:
| specification |
power (W) |
L1±2 | L2±2 | L3±3 | D±2 | H±2 | H1±2 | B±0.5 | N±0.5 | T±0.2 | Φd±0.2 |
Resistance range (Ω) |
weight (G) |
| RX20 | 10W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 |
| 20W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 | |
| 30W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 | |
| 40W | 85 | 105 | 125 | 20 | 20 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 90 | |
| 50W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 | |
| 60W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 | |
| 75W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 | |
| 80W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 | |
| 100W | 170 | 200 | 225 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 230 | |
| 150W | 215 | 245 | 270 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 300 | |
| 200W | 267 | 295 | 322 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 390 | |
| 300W | 267 | 290 | 317 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 550 | |
| 400W | 330 | 353 | 380 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 690 | |
| 500W | 330 | 348 | 364 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 850 | |
| 800W | 430 | 448 | 464 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 1900 | |
| 1000W | 430 | 455 | 480 | 60 | 60 | 118 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2250 | |
| 1500W | 430 | 460 | 492 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2650 | |
| 2000W | 430 | 460 | 492 | 80 | 80 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3000 | |
| 2500W | 500 | 530 | 562 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3500 | |
| 3000W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 | |
| 3500W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 | |
| 4000W | 500 | 530 | 560 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4650 | |
| 5000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 | |
| 6000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 |
*Note: The size is for reference only, specific size and selection need to be consulted. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 3000.
Finished product identification code:
| RX20 | 50 | 10R | J |
| Product category | Rated power | Resistance value | precision |
| RX20 series |
50=50W 100=100W |
R1=0.1Ω 100R=100Ω |
F=±1% G=±2% H=±3% J=±5% K=±10% |
Remarks: RX20 50W 10Ω ±5%, Model: RX20-50-10RJ; Low inductance, add the letter N to the model number, for example: N RX20-50-10RJ
Resistor usage recommendations
Resistor in the use of circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance so you need to use 2W resistance.
