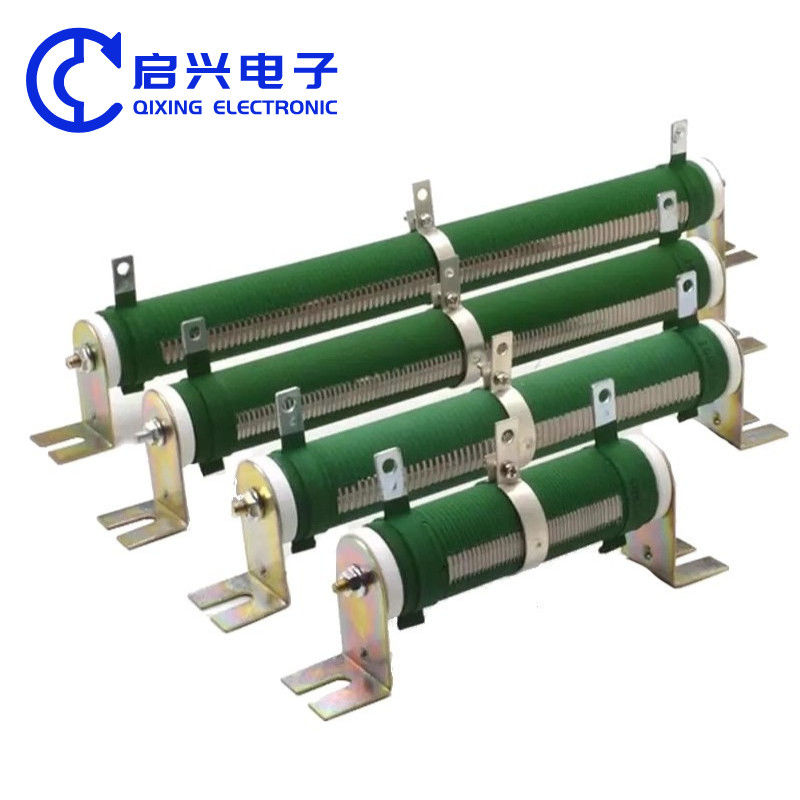

Rx20 adjustable wirewound resistors 100w high power ceramic resistor

Product Details

Place of Origin: China

Brand Name: BONENS

Model Number: RX20

Payment & Shipping Terms

Packaging Details: Carton packaging

Get Best Price
Highlight:
Model Number:
Rx20
Brand Name:
BONENS
Power Range:
10W-10000W
Resistance Tolerance:
±5%
Voltage Range:
0.5KV-10KV
Resistance Range:
1R-1KR
Pressure:
AC2500V / 1min50Hz
Rated Temperature:
375 ℃, Short-term / Repeat 40% ED
Advantages:
High Voltage
Packing:
Carton Packaging
Model Number:
Rx20
Brand Name:
BONENS
Power Range:
10W-10000W
Resistance Tolerance:
±5%
Voltage Range:
0.5KV-10KV
Resistance Range:
1R-1KR
Pressure:
AC2500V / 1min50Hz
Rated Temperature:
375 ℃, Short-term / Repeat 40% ED
Advantages:
High Voltage
Packing:
Carton Packaging
Rx20 adjustable wirewound resistors 100w high power ceramic resistor

Rx20 adjustable wirewound resistors 100w high power ceramic resistor

Product features:



RX20 wirewound resistor, surface insulation high temperature resistant coating, with high power, strong overload resistance, high voltage resistance (refers to the voltage between the electrode and the mounting bracket).

RX20 is coated with painted wire-wound resistors to insulate and withstand high temperature, with high power, strong overload resistance, and high voltage resistance (refers to the pressure between the electrode and the mounting bracket)

Rx20 adjustable wirewound resistors 100w high power ceramic resistor 0

Specifications:

Power range 10W-10000W.
Voltage range- 0.5KV-10KV.
Resistance Range 1R-1KR.
Pressure- AC2500V / 1min50Hz.
IP rating IP00.
Rated temperature- 375 ℃, short-term / repeat 40% ED.
Thermal equilibrium time constant τ = 200s.
Advantages High voltage.
Packing-- carton packaging.
Disadvantages poor shock resistance

Rx20 adjustable wirewound resistors 100w high power ceramic resistor 1

Applications:

simulated loads, discharge equipment, industrial/automation industry

Rx20 adjustable wirewound resistors 100w high power ceramic resistor 2

Product size:

Rx20 adjustable wirewound resistors 100w high power ceramic resistor 3

Product size chart:



specification

power

(W)

L1±2 L2±2 L3±3 D±2 H±2 H1±2 B±0.5 N±0.5 T±0.2 Φd±0.2

Resistance range

(Ω)

weight

(G)

RX20 10W 50 70 90 16 16 42 5 8 0.5 3 0.1~1K 50
  20W 50 70 90 16 16 42 5 8 0.5 3 0.1~1K 50
  30W 50 70 90 16 16 42 5 8 0.5 3 0.1~1K 50
  40W 85 105 125 20 20 42 5 8 0.5 3 0.1~1K 90
  50W 90 120 145 28 28 68 5 8 0.6 3.8 0.1~2K 100
  60W 90 120 145 28 28 68 5 8 0.6 3.8 0.1~2K 100
  75W 140 170 195 28 28 68 5 8 0.6 3.8 0.1~2K 180
  80W 140 170 195 28 28 68 5 8 0.6 3.8 0.1~2K 180
  100W 170 200 225 28 28 68 5 8 0.6 3.8 0.1~2K 230
  150W 215 245 270 28 28 68 5 8 0.6 3.8 0.1~2K 300
  200W 267 295 322 28 28 68 5 8 0.6 3.8 0.1~2K 390
  300W 267 290 317 40 40 86 7 10 1.5 6.3 0.1~2K 550
  400W 330 353 380 40 40 86 7 10 1.5 6.3 0.1~2K 690
  500W 330 348 364 50 50 102 7.5 9 1.5 6.3 0.1~5K 850
  800W 430 448 464 50 50 102 7.5 9 1.5 6.3 0.1~5K 1900
  1000W 430 455 480 60 60 118 8.5 14 2.0 6.3 0.1~5K 2250
  1500W 430 460 492 70 70 132 8.5 14 2.0 6.3 0.1~5K 2650
  2000W 430 460 492 80 80 132 8.5 14 2.0 6.3 0.1~5K 3000
  2500W 500 530 562 70 70 132 8.5 14 2.0 6.3 0.1~5K 3500
  3000W 430 460 490 100 100 158 8.5 14 2.0 6.3 0.1~5K 4000
  3500W 430 460 490 100 100 158 8.5 14 2.0 6.3 0.1~5K 4000
  4000W 500 530 560 100 100 158 8.5 14 2.0 6.3 0.1~5K 4650
  5000W 600 630 660 100 100 158 8.5 14 2.0 6.3 0.1~5K 5600
  6000W 600 630 660 100 100 158 8.5 14 2.0 6.3 0.1~5K 5600

*Note: The size is for reference only, specific size and selection need to be consulted. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 3000.



Finished product identification code:

RX20 50 10R J
Product category Rated power Resistance value precision
RX20 series

50=50W

100=100W

R1=0.1Ω

100R=100Ω

F=±1%

G=±2%

H=±3%

J=±5%

K=±10%



Remarks: RX20 50W 10Ω ±5%, Model: RX20-50-10RJ; Low inductance, add the letter N to the model number, for example: N RX20-50-10RJ

Rx20 adjustable wirewound resistors 100w high power ceramic resistor 4

Resistor usage recommendations

Resistor in the use of circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance so you need to use 2W resistance.
