Product Details
Place of Origin: China
Payment & Shipping Terms
Packaging Details: Carton packaging
Brand Name: |
BONENS |
Model Number: |
Rx20 |
Power Range: |
10W-10000W |
Resistance Tolerance: |
±5% |
Voltage Range: |
0.5KV-10KV |
Resistance Range: |
1R-1KR |
Pressure: |
AC2500V / 1min50Hz |
Rated Temperature: |
375 ℃, Short-term / Repeat 40% ED |
Advantages: |
High Voltage |
Packing: |
Carton Packaging |
Brand Name: |
BONENS |
Model Number: |
Rx20 |
Power Range: |
10W-10000W |
Resistance Tolerance: |
±5% |
Voltage Range: |
0.5KV-10KV |
Resistance Range: |
1R-1KR |
Pressure: |
AC2500V / 1min50Hz |
Rated Temperature: |
375 ℃, Short-term / Repeat 40% ED |
Advantages: |
High Voltage |
Packing: |
Carton Packaging |
Product features:

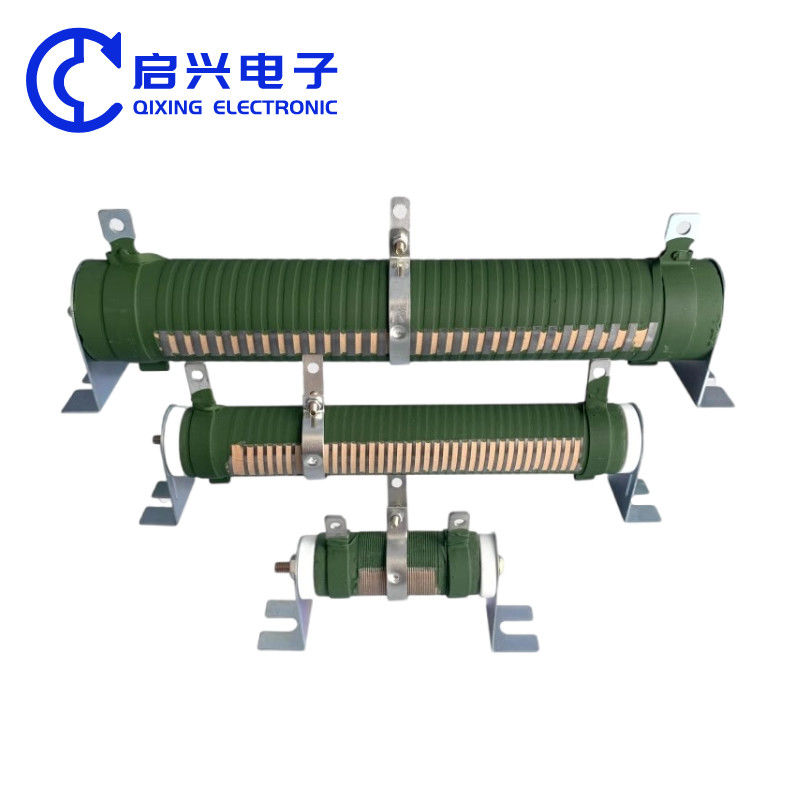

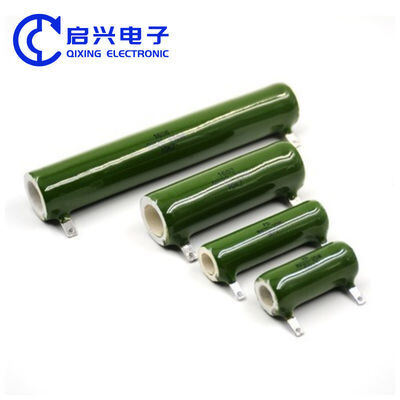

RX20 wirewound resistor, surface insulation high temperature resistant coating, with high power, strong overload resistance, high voltage resistance (refers to the voltage between the electrode and the mounting bracket).
RX20 is coated with painted wire-wound resistors to insulate and withstand high temperature, with high power, strong overload resistance, and high voltage resistance (refers to the pressure between the electrode and the mounting bracket)
Specifications:
| Power range | 10W-10000W. |
| Voltage range- | 0.5KV-10KV. |
| Resistance Range | 1R-1KR. |
| Pressure- | AC2500V / 1min50Hz. |
| IP rating | IP00. |
| Rated temperature- | 375 ℃, short-term / repeat 40% ED. |
| Thermal equilibrium time constant | τ = 200s. |
| Advantages | High voltage. |
| Packing-- | carton packaging. |
| Disadvantages | poor shock resistance |
Applications:
simulated loads, discharge equipment, industrial/automation industry
Product size:
Product size chart:
| specification |
power (W) |
L1±2 | L2±2 | L3±3 | D±2 | H±2 | H1±2 | B±0.5 | N±0.5 | T±0.2 | Φd±0.2 |
Resistance range (Ω) |
weight (G) |
| RX20 | 10W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 |
| 20W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 | |
| 30W | 50 | 70 | 90 | 16 | 16 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 50 | |
| 40W | 85 | 105 | 125 | 20 | 20 | 42 | 5 | 8 | 0.5 | 3 | 0.1~1K | 90 | |
| 50W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 | |
| 60W | 90 | 120 | 145 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 100 | |
| 75W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 | |
| 80W | 140 | 170 | 195 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 180 | |
| 100W | 170 | 200 | 225 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 230 | |
| 150W | 215 | 245 | 270 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 300 | |
| 200W | 267 | 295 | 322 | 28 | 28 | 68 | 5 | 8 | 0.6 | 3.8 | 0.1~2K | 390 | |
| 300W | 267 | 290 | 317 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 550 | |
| 400W | 330 | 353 | 380 | 40 | 40 | 86 | 7 | 10 | 1.5 | 6.3 | 0.1~2K | 690 | |
| 500W | 330 | 348 | 364 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 850 | |
| 800W | 430 | 448 | 464 | 50 | 50 | 102 | 7.5 | 9 | 1.5 | 6.3 | 0.1~5K | 1900 | |
| 1000W | 430 | 455 | 480 | 60 | 60 | 118 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2250 | |
| 1500W | 430 | 460 | 492 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 2650 | |
| 2000W | 430 | 460 | 492 | 80 | 80 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3000 | |
| 2500W | 500 | 530 | 562 | 70 | 70 | 132 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 3500 | |
| 3000W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 | |
| 3500W | 430 | 460 | 490 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4000 | |
| 4000W | 500 | 530 | 560 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 4650 | |
| 5000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 | |
| 6000W | 600 | 630 | 660 | 100 | 100 | 158 | 8.5 | 14 | 2.0 | 6.3 | 0.1~5K | 5600 |
*Note: The size is for reference only, specific size and selection need to be consulted. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 3000.
Finished product identification code:
| RX20 | 50 | 10R | J |
| Product category | Rated power | Resistance value | precision |
| RX20 series |
50=50W 100=100W |
R1=0.1Ω 100R=100Ω |
F=±1% G=±2% H=±3% J=±5% K=±10% |
Remarks: RX20 50W 10Ω ±5%, Model: RX20-50-10RJ; Low inductance, add the letter N to the model number, for example: N RX20-50-10RJ
Resistor usage recommendations
Resistor in the use of circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance so you need to use 2W resistance.
FAQ:
Q1. Can I order samples of LED lights?
A: Yes, we welcome ordering samples to test and inspect the quality. Mixed samples are acceptable.
Q2. What is the delivery cycle?
A: Sample preparation takes 3-5 days and mass production takes 8-10 working days.
Q3. Do you have a minimum order quantity limit for LED lights?
A: The minimum order quantity is low, and one sample can be provided for inspection.
Q4. How did you ship the goods and how long will it take to arrive?
A: Transport via DHL, UPS, FedEx, or TNT. It will take 3-5 days to arrive. Air and sea transportation are also optional.
Q5. How to process orders for LED lights?
A: First, let us know your request or application.Secondly, we will quote based on your requirements or our suggestions.Thirdly, the customer confirms the sample and deposits it as a formal order.Fourthly, we arrange production.
Q6. Can I print my logo on the LED product?
A: Yes. Please formally notify us before production.
Q7: Do you provide a guarantee for the product?
A: Yes, we offer a 5-year warranty for our products
