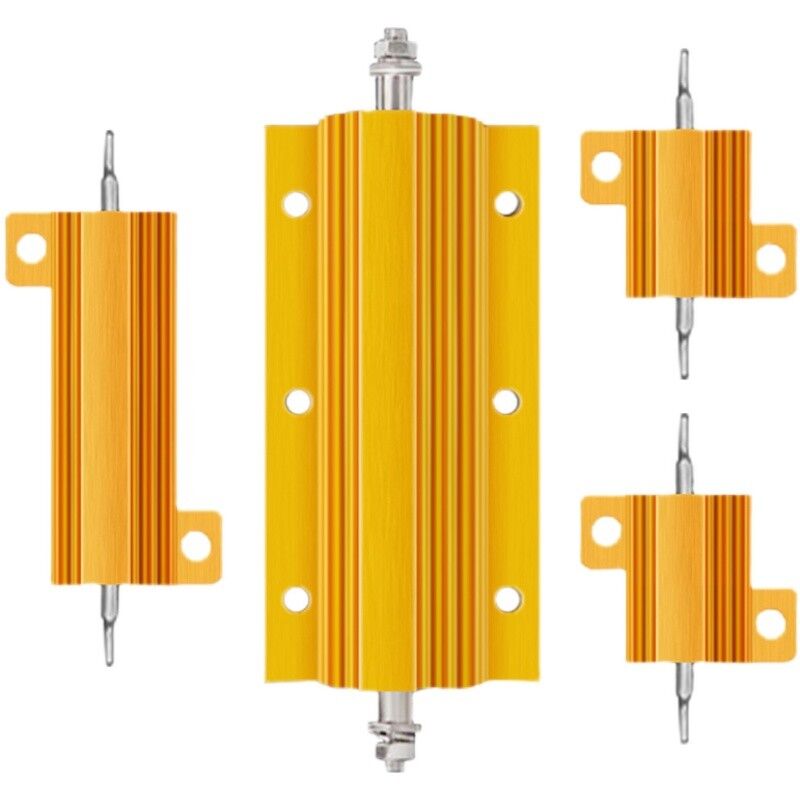

High power gold aluminum shell resistor
Product Description
The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use.
Features
1. Small size and high power
2. Sturdy structure and high stability;
3. Aluminum shell for heat dissipation, suitable for installation of heat dissipation panels.
4. Silicon copper film compression molding, good insulation performance;
5. Complies with lead-free/RoHS requirements
Product application
Application field of high-power gold aluminum shell resistors: widely used in the power supply, frequency converter, elevator, stage audio, and high-end equipment industries
Dimensions
| Style | Dimensions unit:mm | ||||||||
| L1±2 | L2±1 | L3±1 | A±1 | B±1 | C±1 | E±0.3 | S±1 | H±0.5 | |
| RXG24 10w | 32 | 19 | 14 | 20 | 15.5 | 10.5 | 2 | 10 | 5 |
| RXG24 25w | 47 | 27 | 18 | 27 | 19 | 15 | 3.2 | 15.5 | 7 |
| RXG24 50w | 70 | 50 | 39 | 29 | 21 | 15 | 3.2 | 15.5 | 7 |
| RXG24 80w | 102 | 66 | 35 | 47 | 37 | 28 | 4.5 | 25 | 12 |
| RXG24 100w | 135 | 89 | 69 | 70 | 48 | 46 | 5 | 44.5 | 19.5 |
| RXG24 250w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
| RXG24 300w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
Technical Specifcations
| Style | Power Rating | Resistance range(Ω) | maximum working voltage(V) | Heat dissipation plate area |
(g) |
||||
| With heat dissipation plate | Without heat dissipation plate | KAL | NKAL (non-inductive) |
KAL | NKAL (non-inductive) |
surface area (cm²) |
thickness (mm) |
||
| RXG24 10w | 10 | 8 | 0.02-6K | 0.03-2.3K | 245 | 180 | 415 | 1 | 6 |
| RXG24 25w | 25 | 13 | 0.012-15K | 0.02-5.5K | 500 | 300 | 535 | 1 | 11 |
| RXG24 50w | 50 | 10 | 0.01-40K | 0.02-12K | 1300 | 600 | 995 | 1 | 30 |
| RXG24 80w | 80 | 45 | 0.1-3.0K | 0.1-3.0K | 1500 | 1000 | 995 | 3 | 90 |
| RXG24 100w | 100 | 50 | 0.4-50K | 0.12-25K | 1900 | 1340 | 995 | 3 | 160 |
| RXG24 250w | 250 | 60 | 0.6-80K | 0.15-40K | 2500 | 1750 | 4765 | 3 | 480 |
| RXG24 300w | 300 | 70 | 0.6-90K | 0.15-50K | 2500 | 1750 | 4765 | 3 | 550 |
Power Derationg Curve & Temp.Rise Curve
PowerDerationg Curve Temp.Rise Curve
Performance Characteristics
| Items | Standard | Test Methods |
| Short time overload | ±1% | 2.5times power/5 seconds |
| Temperature Coefficient | ±200 PPM/℃ | Test temperature:indoors Temp.100℃ |
| Resistance to solder heat | ±1% | Solder Temp:350±10℃,time:3 seconds |
| Dielectric withstanding voltage | No breakdown or flashover | 500V for 60 seconds |
| Humidity Load Life | ±0.5% | Rated voltage 1.5hr ON,0.5hr OFF at 40±2℃,90-95&RH for 1000h |
| Load Life | ±2.0% | Rated voltage 1.5hr ON,0.5hr OFF at 25℃ for 1000hrs |
| Solderability | At least 95% coverage | 235±5℃ for 2±0.5 seconds |
Type Specification
High power gold aluminum shell wirewound resistorProduct Model Description
for example:RX24TM20W15RJ
| RXG24 | T | M | 20W | 15R | J |
| Style | Small classification | installation | Power | Value | Tolerance |
Golden resistance No-sense Golden resistance |
T-single side mounting hole type |
M-terminal type |
10W 25W 300W |
R01 0.01Ω R10 0.1Ω 15R 15Ω 40K 40KΩ |
F ±1% G ±2% J ±5% |
Product packaging
Product catalogs
LED light resistor LED
product name
Automotive LED turn signal gold aluminum housing resistor HID resistor
Product Description
Automotive light resistor, LED resistor, HID decoder resistor, aluminum case resistor, 50W resistor
1. Using high-temperature resistant ceramics as the resistance matrix, it has high heat dissipation performance
2. Select highly stable resistance alloy wire, wind it according to rigorous process methods, and spot weld it on two or more conductive terminals, making the resistance have strong impact resistance and high stability. Non combustible paint encapsulation provides effective protection for the resistance wire, thereby improving its service life;
3. According to different vehicle models and customer needs, assemble temperature fuses and plastic bases into finished products.
Features
1. Automobile adjustment resistors have the characteristics of high power, small size, low temperature, and stable performance;
2. A single resistor can achieve one or more resistance values;
3. The resistance matrix can be selected in different shapes such as circular, flat, or square according to different vehicle models and customer requirements. The resistance winding wire can be either flat or round. Can be corrugated wound: Plastic bases can be installed and assembled according to customer requirements, and can be customized with multiple colors;
4. Temperature fuses with different temperatures and requirements can also be equipped according to customers.
Product application
Widely used in different brands and types of cars (automotive blower resistance/fan speed control resistance/automotive taillight resistance).
Technical Specifcations
| model | rated power(W) | Resistance range (Ω) | Resistance Tolerance (%) |
temperature coefficient(×10- 6/℃) |
insulation voltage (V) |
Maximum overload voltage (V) |
|||||||||||||
| With heat dissipation plate | Without heat dissipation plate | ||||||||||||||||||
| RX24 | 5 | 3 | 0.012~1KΩ | F(±1%) J(±5%) |
±100 ±50 |
1000 | 1500 | ||||||||||||
| 10 | 8 | 0.010~1.5KΩ | |||||||||||||||||
| 20 | 12.5 | 0.012~7.5KΩ | |||||||||||||||||
| 30 | 15 | 0.012~10KΩ | |||||||||||||||||
| 50 | 20 | 0.010~15KΩ | |||||||||||||||||
| RXG24 | 75 | 45 | 0.012~20KΩ | 2000 | 3000 | ||||||||||||||
| 100 | 50 | 0.012~24KΩ | |||||||||||||||||
| 150 | 55 | 0.012~30KΩ | |||||||||||||||||
| 200 | 55 | 0.012~36KΩ | |||||||||||||||||
| 250 | 60 | 0.012~39KΩ | |||||||||||||||||
| 300 | 75 | 0.010~47KΩ | |||||||||||||||||
| 500 | 200 | 0.010~51KΩ | |||||||||||||||||
Performance Characteristics
| Items | Standard | Test Methods |
| Short time overload | R≤±(2%R0+0.05Ω) | To increase the voltage of 10 times the rated power or the highest resistance and resistance change rate of each calculation |
| Temperature Coefficient | ±300PPM/℃ | Test temperature; indoors Temp.100℃ |
| Resistance to solder heat | R≤±(1%R0+0.05Ω) | Solder Temp.:350±10℃,time:3 seconds |
| Temperature cycling | R≤±(5%R0+0.05Ω) | In 55 DEG C when placed for 30 minutes and then at+25C placed 10-15 minutes, and then in+275 DEG C when the place 30 minutes, and then at+ 25 C placed 10-15 minutes,a total of 5 cycles |
| Humidity Load Life | R≤±(5%R0+0.05Ω) | Rated voltage 1.5hr ON,0.5hr OFF at 40±2℃,90-95 &RH for 1000hrs' |
| Temperature resistance load life | R≤±(5%R0+0.05Ω) | In the 70 plus or minus 2 DEG C constant temperature and humidity box applied rated voltage, or the maximum working voltage (whichever is less) a total of 1000 hours (1.5 hours,0.5 hours) |
| Solderability | At least 95% coverage | 245±3℃ for 2-3 seconds |
Intermittent overload |
R≤±(1%R0+0.05Ω) | 4 times the rated voltage or the maximum intermittent load voltage (whichever is smaller) to test a second, stop 25 seconds.loop 10000+200 times |
| Terminal tensile strength | R±(2%R0+0.1Ω) | Tension 10N |
| Flame resistance | There is no obvious fire | Respectively, according to 5, 10,16 times the power plus AC load for 5 minutes |
Type Specification
Aluminum Housing Resistor Car Lamp LED Resistor 20W for example:RX24TM20W15RJ
| RXG24 | T | M | 20W | 15R | J |
| Style | Small classification | installation | Power | Value | Tolerance |
Automobile resistance |
T-single side mounting hole type |
M-terminal type |
10W 25W 300W |
R01 0.01Ω R10 0.1Ω 15R 15Ω 40K 40KΩ |
F ±1% G ±2% J ±5% |
