RX24 RXG24 Resistor 1 Ohm 25W 100W 50W 10RJ Resistance Aluminum Housed Wirewound
RX24 RXG24 Resistor 1 Ohm 25W 100W 50W 10RJ Resistance Aluminum Housed Wirewound
Key Attributes
Brand Name:BONENS
Model Number:RX24
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging
Product Summary
Product Description1 ohm 25 watt resistance Picture100W resistor also can make threaded typeShape DrawingRoHs power disspation wirewound resistor 100w aluminium SizeSpecificationRoHs power disspation wirewound resistor 100w aluminium ParameterTest itemsStandardTest MethodsShort time overload±5%,±2%,...
Product Details
Highlight:
1 Ohm 25W Rating
,RX24 RXG24 Series
,Aluminum Housed Wirewound
Model Number:
RX24
Brand Name:
BONENS
Rated Power:
25W
Operating Voltage Range:
<1.5kV
Rated Resistance Range:
0.1Ω~10KΩ
Maximum Withstand Voltage:
3000V
Temperature Drift Range:
≤400ppm/℃
Working Temperature Range:
-55℃～+275℃
Operating Voltage:
Below 1.5kV
Resistance:
1 Ohm, 10RJ
Housing:
Aluminum
Type:
Wirewound
Application:
Industrial Power
Product Description
Detailed Specifications & Features
Product Description

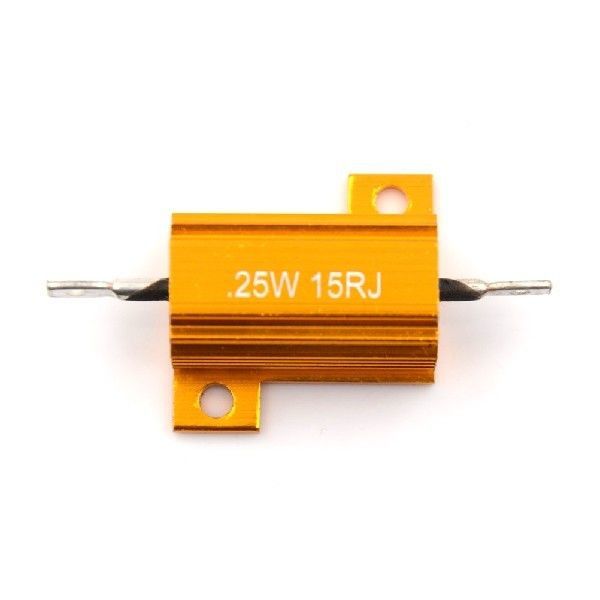

1 ohm 25 watt resistance Picture
100W resistor also can make threaded type
Shape Drawing
RoHs power disspation wirewound resistor 100w aluminium Size
Specification
RoHs power disspation wirewound resistor 100w aluminium Parameter
Test items | Standard | Test Methods |
Short time overload | ±5%,±2%,±1% | 2.5 times power/5 seconds |
Temperature coefficient | ±200PPM/°C | Test temperature:indoors temp.100°C |
Resistance to solder heat | ±1% | Solder temp:350±10°C time:3 seconds |
Dielectric withstanding voltage | No breakdown or flashover | 500V for 60 seconds |
Humidity Load Life | ±0.5% | 1.5hr ON,0.5hr OFF at 40±2°C,90-95&RH for 1000hrs |
Load Life | ±2.0% | Rated voltage 1.5hrON,0.5hr OFF at 25°C for 1000hrs |
Solderability | At least 95% coerage | 235±5°C for 2±0.5 seconds |
