Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: RX24
Payment & Shipping Terms
Model Number: |
RX24 |
Brand Name: |
BONENS |
Rated Power: |
5W~50W |
Operating Voltage Range: |
<1.5kV |
Rated Resistance Range: |
0.1Ω~10KΩ |
Maximum Withstand Voltage: |
3000V |
Temperature Drift Range: |
≤400ppm/℃ |
Working Temperature Range: |
-55℃～+275℃ |
Model Number: |
RX24 |
Brand Name: |
BONENS |
Rated Power: |
5W~50W |
Operating Voltage Range: |
<1.5kV |
Rated Resistance Range: |
0.1Ω~10KΩ |
Maximum Withstand Voltage: |
3000V |
Temperature Drift Range: |
≤400ppm/℃ |
Working Temperature Range: |
-55℃～+275℃ |

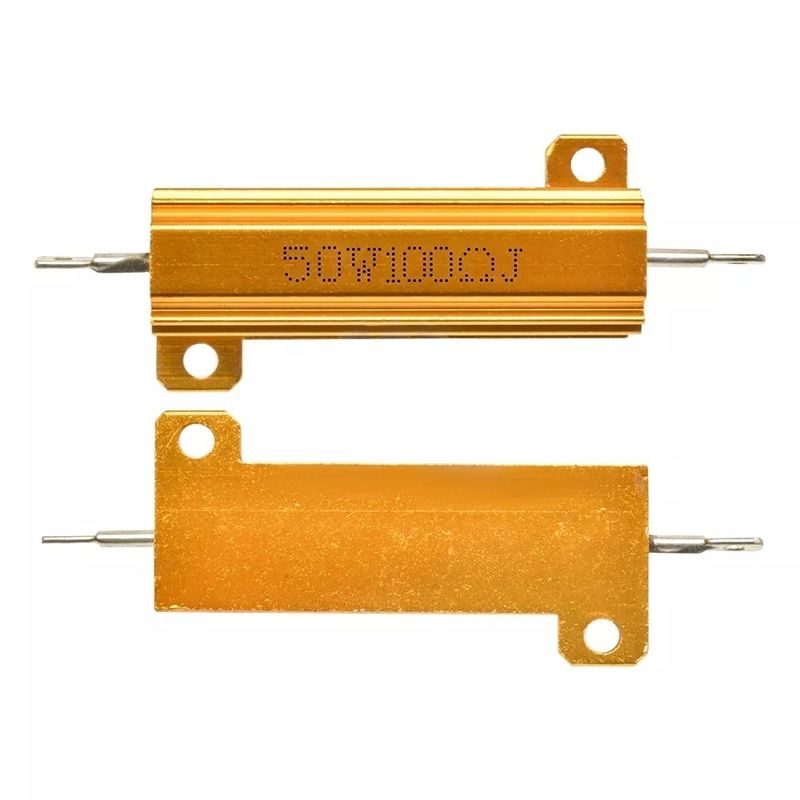

RX24 50w 100RJ Gold Aluminum Housed Wirewound resistor High Power
Product Description

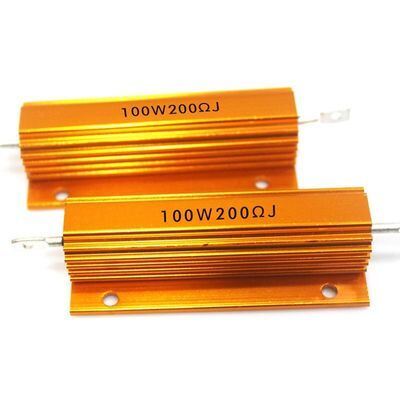

The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use.
Features
1. Small size and high power
2. Sturdy structure and high stability;
3. Aluminum shell for heat dissipation, suitable for installation of heat dissipation panels.
4. Silicon copper film compression molding, good insulation performance;
5. Complies with lead-free/RoHS requirements
Product application
Application field of high-power gold aluminum shell resistors: widely used in the power supply, frequency converter, elevator, stage audio, and high-end equipment industries
Dimensions
| Style | Dimensions unit:mm | ||||||||
| L1±2 | L2±1 | L3±1 | A±1 | B±1 | C±1 | E±0.3 | S±1 | H±0.5 | |
| RXG24 10w | 32 | 19 | 14 | 20 | 15.5 | 10.5 | 2 | 10 | 5 |
| RXG24 25w | 47 | 27 | 18 | 27 | 19 | 15 | 3.2 | 15.5 | 7 |
| RXG24 50w | 70 | 50 | 39 | 29 | 21 | 15 | 3.2 | 15.5 | 7 |
| RXG24 80w | 102 | 66 | 35 | 47 | 37 | 28 | 4.5 | 25 | 12 |
| RXG24 100w | 135 | 89 | 69 | 70 | 48 | 46 | 5 | 44.5 | 19.5 |
| RXG24 250w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
| RXG24 300w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
Technical Specifcations
| Style | Power Rating | Resistance range(Ω) | maximum working voltage(V) | Heat dissipation plate area | Weight(g) | ||||
| With heat dissipation plate | Without heat dissipation plate | KAL | NKAL | KAL | NKAL | surface area | thickness | ||
| (non-inductive) | (non-inductive) | (cm²) | (mm) | ||||||
| RXG24 10w | 10 | 8 | 0.02-6K | 0.03-2.3K | 245 | 180 | 415 | 1 | 6 |
| RXG24 25w | 25 | 13 | 0.012-15K | 0.02-5.5K | 500 | 300 | 535 | 1 | 11 |
| RXG24 50w | 50 | 10 | 0.01-40K | 0.02-12K | 1300 | 600 | 995 | 1 | 30 |
| RXG24 80w | 80 | 45 | 0.1-3.0K | 0.1-3.0K | 1500 | 1000 | 995 | 3 | 90 |
| RXG24 100w | 100 | 50 | 0.4-50K | 0.12-25K | 1900 | 1340 | 995 | 3 | 160 |
| RXG24 250w | 250 | 60 | 0.6-80K | 0.15-40K | 2500 | 1750 | 4765 | 3 | 480 |
| RXG24 300w | 300 | 70 | 0.6-90K | 0.15-50K | 2500 | 1750 | 4765 | 3 | 550 |
Power Derationg Curve & Temp.Rise Curve
Performance Characteristics
| Items | Standard | Test Methods |
| Short time overload | ±1% | 2.5times power/5 seconds |
| Temperature Coefficient | ±200 PPM/℃ | Test temperature:indoors Temp.100℃ |
| Resistance to solder heat | ±1% | Solder Temp:350±10℃,time:3 seconds |
| Dielectric withstanding voltage | No breakdown or flashover | 500V for 60 seconds |
| Humidity Load Life | ±0.5% | Rated voltage |
| 1.5hr ON,0.5hr OFF at 40±2℃,90-95&RH for 1000h | ||
| Load Life | ±2.0% | Rated voltage 1.5hr ON,0.5hr |
| OFF at 25℃ for 1000hrs | ||
| Solderability | At least 95% coverage | 235±5℃ for 2±0.5 seconds |
Type Specification
High power gold aluminum shell wirewound resistorProduct Model Description
for example:RX24TM20W15RJ
| RXG24 | T | M | 20W | 15R | J |
| Style | Small classification | installation | Power | Value | Tolerance |
| Golden resistanceNo-sense Golden resistance | T-single side mounting hole typeS-bilateral mounting hole type |
M-terminal type Y-lead type |
10W 25W 300W |
R01 0.01Ω R10 0.1Ω1 5R 15Ω 40K 40KΩ |
F±1% G±2% J±5% |
Product packaging
LED light resistor LED
Product Description
Automotive light resistor, LED resistor, HID decoder resistor, aluminum case resistor, 50W resistor
1. Using high-temperature resistant ceramics as the resistance matrix, it has high heat dissipation performance
2. Select highly stable resistance alloy wire, wind it according to rigorous process methods, and spot weld it on two or more conductive terminals, making the resistance have strong impact resistance and high stability. Non combustible paint encapsulation provides effective protection for the resistance wire, thereby improving its service life;
3. According to different vehicle models and customer needs, assemble temperature fuses and plastic bases into finished products.
Features
1. Automobile adjustment resistors have the characteristics of high power, small size, low temperature, and stable performance;
2. A single resistor can achieve one or more resistance values;
3. The resistance matrix can be selected in different shapes such as circular, flat, or square according to different vehicle models and customer requirements. The resistance winding wire can be either flat or round. Can be corrugated wound: Plastic bases can be installed and assembled according to customer requirements, and can be customized with multiple colors;
4. Temperature fuses with different temperatures and requirements can also be equipped according to customers.
Product application
Widely used in different brands and types of cars (automotive blower resistance/fan speed control resistance/automotive taillight resistance).
