50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

Product Details

Place of Origin: Sichuan, China

Brand Name: BONENS

Model Number: RX24

Payment & Shipping Terms

Packaging Details: Carton packaging

Get Best Price
Highlight:

50W Aluminum Shell Resistors

,

RXG24 Aluminum Shell Resistors

,

6rj Aluminum Shell Resistors

Model Number:
RX24
Brand Name:
BONENS
Rated Power:
50w
Operating Voltage Range:
<1.5kV
Rated Resistance Range:
6rj
Maximum Withstand Voltage:
3000V
Temperature Drift Range:
≤400ppm/℃
Working Temperature Range:
-55℃~+275℃
Model Number:
RX24
Brand Name:
BONENS
Rated Power:
50w
Operating Voltage Range:
<1.5kV
Rated Resistance Range:
6rj
Maximum Withstand Voltage:
3000V
Temperature Drift Range:
≤400ppm/℃
Working Temperature Range:
-55℃~+275℃
50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors

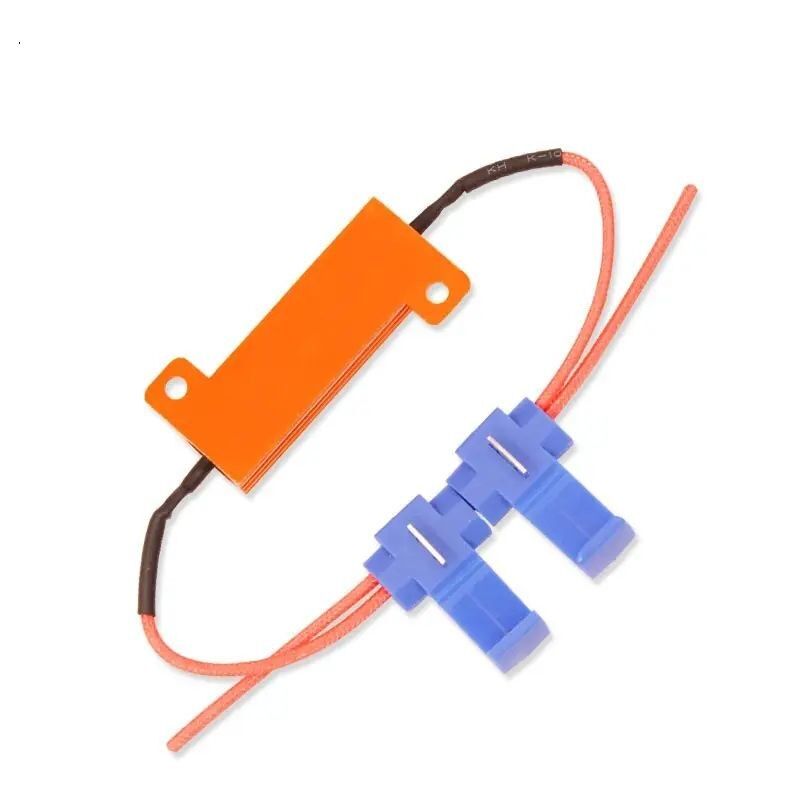

Car Load Resistor 50W 6 ohm

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 0

Product Description

1.50W 6 ohm  Image:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 1

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 2

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 3

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 4

 50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 5



Test items
 Standard
Test Methods
Short time overload
±5%,±2%,±1%
2.5 times power/5 seconds
Temperature coefficient
±200PPM/°C
Test temperature:indoors temp.100°C
Resistance to solder heat
±1%
Solder temp:350±10°C time:3 seconds
Dielectric withstanding voltage
No breakdown or flashover
500V for 60 seconds
Humidity Load Life
±0.5%
1.5hr ON,0.5hr OFF at 40±2°C,90-95&RH for 1000hrs
Load Life
±2.0%
Rated voltage 1.5hrON,0.5hr OFF at 25°C for 1000hrs
Solderability
At least 95% coerage
235±5°C for 2±0.5 seconds



2.Dimentions checking:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 6

3.Packaging:

 50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 7

4.How to use:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 8

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 9

5.Our Other Resistors:

50W 6rj car led load resistor RXG24 Gold Aluminum Shell Resistors 10
