Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: RX24
Payment & Shipping Terms
Model Number: |
RX24 |
Brand Name: |
BONENS |
Rated Power: |
5W~50W |
Operating Voltage Range: |
<1.5kV |
Rated Resistance Range: |
0.1Ω~10KΩ |
Maximum Withstand Voltage: |
3000V |
Temperature Drift Range: |
≤400ppm/℃ |
Working Temperature Range: |
-55℃～+275℃ |
Model Number: |
RX24 |
Brand Name: |
BONENS |
Rated Power: |
5W~50W |
Operating Voltage Range: |
<1.5kV |
Rated Resistance Range: |
0.1Ω~10KΩ |
Maximum Withstand Voltage: |
3000V |
Temperature Drift Range: |
≤400ppm/℃ |
Working Temperature Range: |
-55℃～+275℃ |

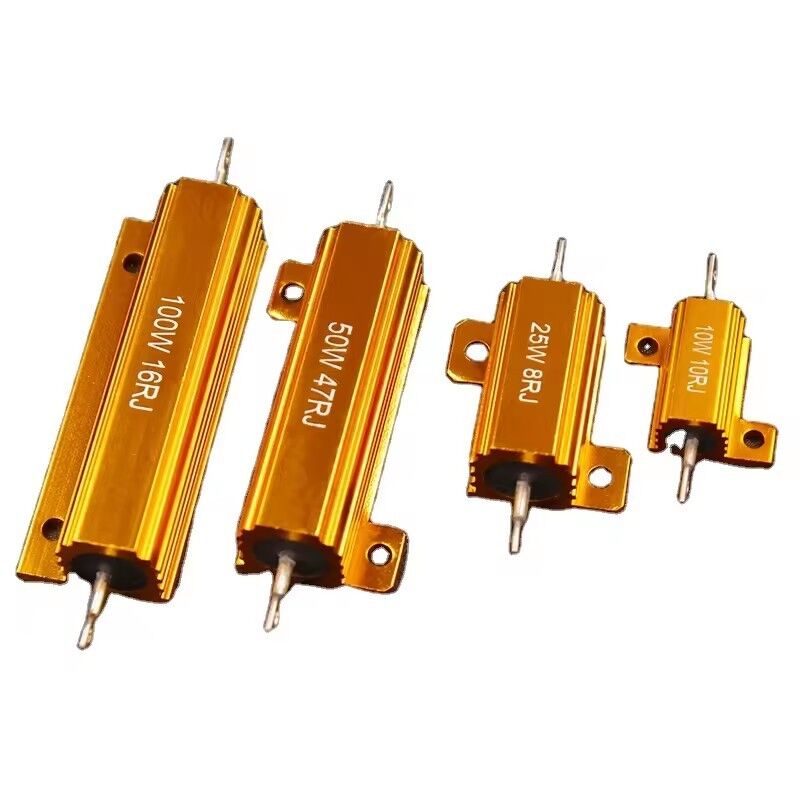

RX24 gold resistors have the characteristics of high power, small size, strong overload capability, solid structure, and high reliability; they are widely used in power supplies, frequency
parameter:
①LED retrofit to remove the fault alarm
②Magotan, BMW, Mercedes-Benz, etc., all cars with on-board computers are applicable
③Remove the fault light alarm generated after the modification of the LED turn signal
④Solve the problem of turning too fas
Installation: Special impedance matching resistor for automotive LED turn signal, 50W6Ω aluminum shell high-power resistor, both ends of the resistor are connected in parallel to the positive and negative poles of the LED turn signal power cord! Feature description
| pecification | Power (W) |
L1±1 | L2±1 | L3±1 | W1±0.5 | W2±0.5 | W3±0.5 | H1±0.5 | H2±0.5 | D1±0.2 | D2±0.2 | Resistance range (Ω) |
Outgoing method | Weight (G) |
| RX24 | 5W | 15 | 11 | 10 | 16 | 12 | 8 | 4.4 | 8 | 0.7 | 2.4 | 0.1~10K | lead | 4.5 |
| 10W(15W) | 20 | 14 | 10 | twenty one | 16 | 11 | 5 | 10.5 | 0.7 | 3 | 0.1~10K | Leads, jacks | 5.5 | |
| 25W | 28 | 17 | 10 | 27 | 20 | 14 | 6 | 13.8 | 2 | 3.5 | 0.1~10K | Leads, jacks | 12.5 | |
| 35W | 33 | twenty three | 10 | 29 | 21.5 | 16 | 6.6 | 15.5 | 2 | 3.5 | 0.1~10K | Leads, jacks | 20 | |
| 50W | 50 | 40 | 10 | 29 | 21.5 | 16 | 6.6 | 15.5 | 2 | 3.5 | 0.1~10K | Leads, jacks | 26 |
*Remarks: Dimensions are for reference only, please consult for specific dimensions and selection. Allowable deviation of resistance value (%): ±5% ±10%, withstand voltage (V): 1500.
Electrical and mechanical characteristics
|
haracteristic |
Inspection Method | Performance requirements | Test Standard |
| Terminal strength | The terminal is loaded with 20N pulling force for 10 seconds. | no visible damage | IEC60115-1 4.16 |
| Vibration resistance | 10~55HZ/0.75mm/2H*3 | no visible damage | IEC60115-1 4.22 |
| Short term overload | 10xPr 5S | △R/R≤±2.0% | IEC60115-1 4.13 |
| Insulation resistance | DC500V,R>100MΩ | △R/R≤±0.5% | IEC60115-1 4.6 |
| Insulation withstand voltage | UN,60S,I≤1mA | △R/R≤±1% | IEC60115-1 4.7 |
| Durability | Min(UP,UR),1.5H-ON,0.5H-OFF,1000H | △R/R≤±5% | IEC60115-1 4.25 |
| high temperature storage | 125℃,80%,500H | no visible damage | IEC60115-1 4.23 |
| Resistant to soldering heat | 350±5℃,3S±0.5S | △R/R≤±0.5% | IEC60115-1 4.18 |
Finished product identification code
| RX24 | 50 | 6R | J | L |
| Product Category | rated power | resistance | Accuracy | Wiring |
| RX24 series (gold aluminum shell) | 50=50W 100=100W |
R1=0.1Ω 100R=100Ω |
F=±1% G=±2% H=±3% J=±5% K=±10% |
L=Lead K=Jack |
*Remarks: RX24 50W 6Ω ±5%, model: RX24-50-6RJ-L; low inductance, add the letter N in the model, for example: N RX24-50-6RJ
■Recommendations for using resistors
◆It is recommended to leave 1.5 times the power margin for the resistor in the circuit. For example, the voltage in the circuit is 100V and the current is 0.01A. Calculate the power: P=100*0.01=1W. At this time, the resistor cannot be used with 1W. Calculate 1*1.5=1.5 W, there is no 1.5W resistor so a 2W resistor is needed.
