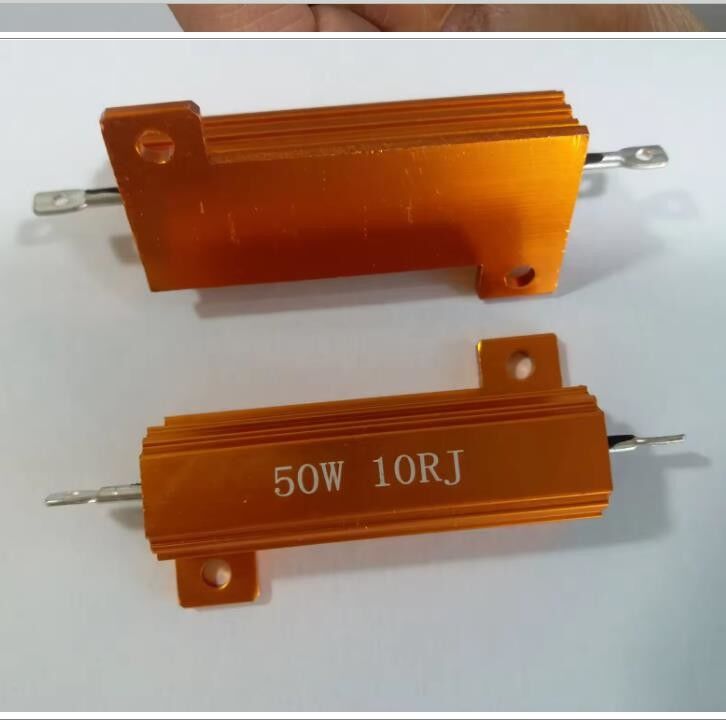

Wirewound Resistor 50W 10 Ohm 10RJ RX24 Gold Aluminum Shell High Power Strong Overload

Wirewound Resistor 50W 10 Ohm 10RJ RX24 Gold Aluminum Shell High Power Strong Overload

Key Attributes

Brand Name:BONENS
Model Number:RX24
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging

Product Summary

RX24 50W 50 ohm Wirewound Aluminum Shell Resistor Product Description 1.Pictures 2.Dimentions checking: 3.Packaging: 4.Our Other Resistors: Company Information Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire...

Product Details

Highlight:

50W 10 Ohm Rating

,

Strong Overload Capacity

,

RX24 Aluminum Shell

Model Number: RX24
Brand Name: BONENS
Rated Power: 5W~50W
Operating Voltage Range: <1.5kV
Rated Resistance Range: 0.1Ω~10KΩ
Maximum Withstand Voltage: 3000V
Temperature Drift Range: ≤400ppm/℃
Working Temperature Range: -55℃~+275℃
Rated Power: 50W
Resistance: 10 Ohm, 10RJ
Housing: Gold Aluminum Shell
Application: Industrial Power
Product Description
Detailed Specifications & Features

 RX24 50W 50 ohm Wirewound Aluminum Shell Resistor

Product Description

1.Pictures



2.Dimentions checking:




3.Packaging:




4.Our Other Resistors:

Company Information



     Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.

     Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.

     We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith!

     Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.
