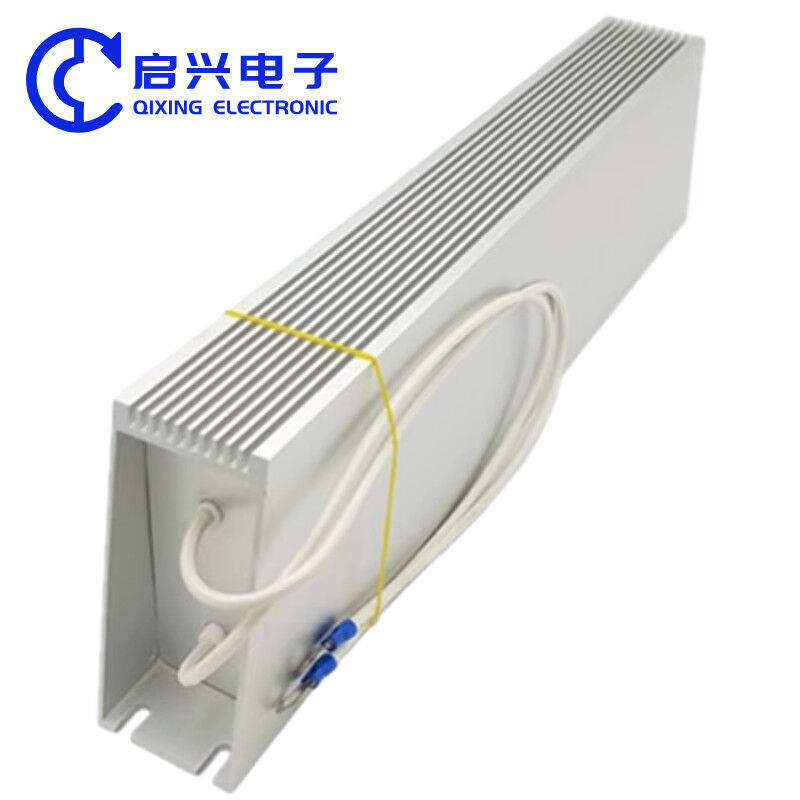

RXLG Aluminum frequency converter brake resistance servo motor regenerative brake resistance 200W-10KW
product description
RXLG trapezoidal aluminum shell resistor integrates multiple functions such as braking resistor, regeneration resistor, load resistor, etc., providing a powerful and flexible resistor solution for modern industrial control systems.
PRODUCT MATERIAL DESCRIPTION
RX20 porcelain tube high power load aging discharge brake adjustable sliding resistor
| Outer shell | Good heat dissipation, suitable for heat sink installation, high insulation, complete fusion welding structure, installed on the substrate should have heat absorption effect, with environmental protection molding structure, no inductive winding of low reactive components |
| Conducting wire | Constantan wire or nichrome alloy wire, depending on the resistance value |
| Core materials | Ceramic or talc porcelain depends on the physical size |
| Heat sinks | The workmanship is fine, the winding is uniform, the use of inorganic coatings, and the insulation is durable. Overcome the biography |
PRODUCT FEATURES
Fast heat dissipation: Efficient heat dissipation design ensures long-term stable operation of the resistor.
Anti-vibration: The sturdy structure can cope with various vibration challenges in industrial environments.
High power: Meet the needs of high-power equipment and provide stable resistance support.
Strong overload capacity: Excellent overload performance to ensure system safety.
Small size and easy installation: Compact design for easy installation and integration.
Beautiful appearance: Industrial style appearance design, both practical and beautiful
ELECTRICAL CHARACTERISTICS
The aluminum shell has good heat dissipation performance, weather resistance, vibration resistance, easy to install tightly, easy to attach radiators, and is suitable for use in high-demand and harsh environments.
PRODUCT SIZE
| 功率 Power |
尺寸/Dimension(mm) | |||||||||
| A ±2 |
B±2 | C±1 | D±1 | E±1 | F±1 | 配线2 (mm) |
端子 | 阻值范围 Resistance |
图面 Picture |
|
| 60W | 115 | 96 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 80W | 140 | 121 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 100W | 165 | 146 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 120W | 190 | 171 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 150W | 215 | 196 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 200W | 165 | 135 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 300W | 215 | 185 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 400W | 265 | 235 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 500W | 335 | 305 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 800W | 400 | 381 | 61 | 59 | 5.5 | 40 | 2.5 | 3.5-6S | 0.1Ω-10KΩ | PictureB |
| 1KW | 400 | 382 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-7S | 0.1Ω-10KΩ | PictureB |
| 1.2KW | 450 | 432 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-8S | 0.1Ω-10KΩ | PictureB |
| 1.5KW | 485 | 467 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-9S | 0.1Ω-10KΩ | PictureB |
| 2KW | 650 | 632 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-10S | 0.1Ω-100KΩ | PictureB |
SURFACE TEMPERATURE RISE CURVE
DERATING CURVE
LICATION AREA
PRODUCTION PACKAGING
RXLG aluminium brake resistors are individually packaged in cartons
