Packaging Details: Carton packaging
Model Number: |
RIG Resistor |
Brand Name: |
BONENS |
Rated Power: |
1W~1000W (70°C) |
Nominal Resistance: |
1Ω~100KΩ |
Nominal Resistance Allowable Deviation: |
±3% ±5% |
Temperature Coefficient: |
≤±300x10-6 ℃ |
Temperature Range: |
-55℃--+125℃ |
Flange Material: |
Copper Plating, Nickel Plating, Silver Plating |
Model Number: |
RIG Resistor |
Brand Name: |
BONENS |
Rated Power: |
1W~1000W (70°C) |
Nominal Resistance: |
1Ω~100KΩ |
Nominal Resistance Allowable Deviation: |
±3% ±5% |
Temperature Coefficient: |
≤±300x10-6 ℃ |
Temperature Range: |
-55℃--+125℃ |
Flange Material: |
Copper Plating, Nickel Plating, Silver Plating |

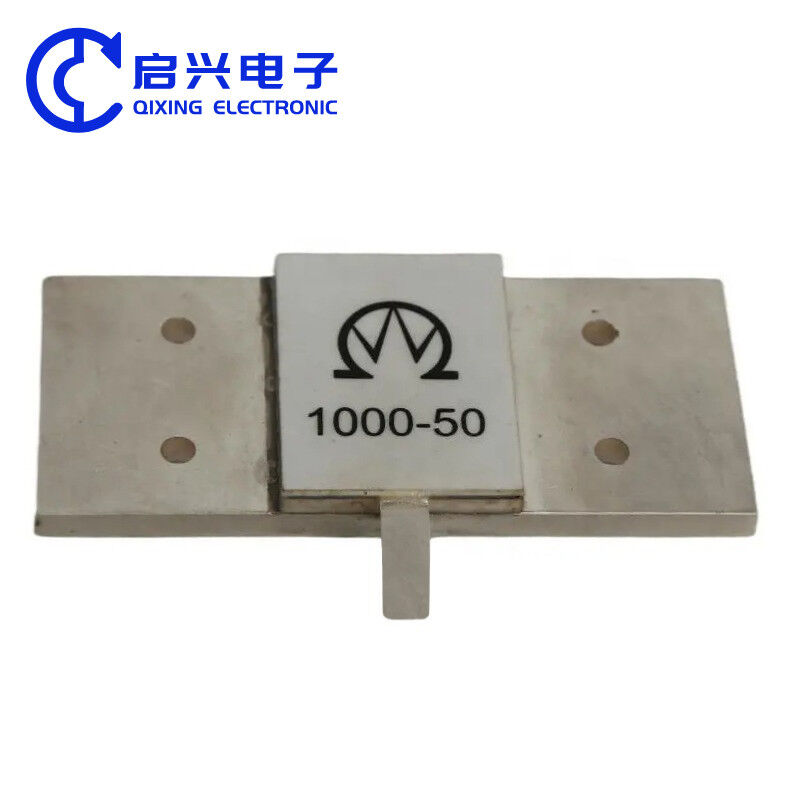

Description:
RIG high power resistance is also called RIG RF resistor, RF RF resistor, high frequency RF resistor, flange RF resistor, load RF resistor, RF resistor and high power microband resistors
Product characteristics:
1.Small volume, large power capacity, good high-frequency characteristics, reliable performance, and convenient installation.
2.Suitable for power distributor, isolation resistance and terminal load resistor.
Application scope:
Application in cavity coupler, circuit breaker, duplexer, TV and FM transmitter, set-top box, generator, radar, satellite communications, electronic countermeasures and other military industry and mobile phone, PCS and commercial base station market areas.
parameter:
| Electrical Characteristics | |||
| Range of nominal resistance | 1 ~500Ω | ||
| Resistance tolerance | ±5% | ||
| Frequency range | 0~2GHz | ||
| Standing wave ratio | 1.2~1.3 | ||
| Insulation resistance | ≥ 1GΩ | ||
| Withstand voltage | 500V/1 mm (Substrate thickness) | ||
| Environment Characteristics | |||
| Rated power | 1~1000W (70°C) | ||
| Temperature range | -55°C~+165°C | ||
| TCR | ±300×10-6/°C | ||
| Temperature shock (-55°C/+125°C, 3 times) | ΔR≤±5%R | ||
| Moisture proof (GJB306A-96-Method106) | ΔR≤±5%R | ||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±3%R, No mechanical damage | ||
| Test at low temperature (-55°C, 24h) | ΔR≤±5%R | ||
| Load life (96) | ΔR≤±5% | ||
| Collision | ΔR≤±3%R | ||
| Physical Characteristics | |||
| Terminal strength(10N,5S) | No loose and fall off | ||
| Solderability(240℃,3s) | Tin layer covering area of 95% | ||
Product Regular Size:
FAQ:
Q1. Can I order samples of LED lights?
A: Yes, we welcome ordering samples to test and inspect the quality. Mixed samples are acceptable.
Q2. What is the delivery cycle?
A: Sample preparation takes 3-5 days and mass production takes 8-10 working days.
Q3. Do you have a minimum order quantity limit for LED lights?
A: The minimum order quantity is low, and one sample can be provided for inspection.
Q4. How did you ship the goods and how long will it take to arrive?
A: Transport via DHL, UPS, FedEx, or TNT. It will take 3-5 days to arrive. Air and sea transportation are also optional.
Q5. How to process orders for LED lights?
A: First, let us know your request or application.Secondly, we will quote based on your requirements or our suggestions.Thirdly, the customer confirms the sample and deposits it as a formal order.Fourthly, we arrange production.
Q6. Can I print my logo on the LED product?
A: Yes. Please formally notify us before production.
Q7: Do you provide a guarantee for the product?
A: Yes, we offer a 5-year warranty for our products
