BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer

Product Details

Place of Origin: Chengdu, Sichuan

Brand Name: BONENS

Model Number: 3299 series

Payment & Shipping Terms

Get Best Price
Highlight:

BONENS 3299 motorized potentiometer

,

BONENS 3299 cermet trimmer potentiometers

,

BONENS 3299 cermet trimmer

Range Of Nominal Resistance:
10Ω~5MΩ
Tolerance Deviation Is Allowed:
±10%
Resistance Law:
A (straight Line)
Rated Power(70°C):
0.5W
Contact Resistance Changes:
≤3%R Or 5Ω (whichever Is Greater)
Temperature Coefficient Of Resistance:
≤±200×10ˉ6/℃(-55℃~+125℃)
Zero Resistor:
≤10Ω(100Ω≤R≤1K) ≤1%R(R>1K)
Stability Level:
10%
Resistor Limit Voltage:
220 V (DC Or AC RMS)
Ambient Temperature Range:
-55℃~+125℃
Temperature Changes:
△R≤±2 % R △U12/△U13≤±1 %
Total Mechanical Stroke:
300°±10°
Starting Torque:
≤35mN.m
Range Of Nominal Resistance:
10Ω~5MΩ
Tolerance Deviation Is Allowed:
±10%
Resistance Law:
A (straight Line)
Rated Power(70°C):
0.5W
Contact Resistance Changes:
≤3%R Or 5Ω (whichever Is Greater)
Temperature Coefficient Of Resistance:
≤±200×10ˉ6/℃(-55℃~+125℃)
Zero Resistor:
≤10Ω(100Ω≤R≤1K) ≤1%R(R>1K)
Stability Level:
10%
Resistor Limit Voltage:
220 V (DC Or AC RMS)
Ambient Temperature Range:
-55℃~+125℃
Temperature Changes:
△R≤±2 % R △U12/△U13≤±1 %
Total Mechanical Stroke:
300°±10°
Starting Torque:
≤35mN.m
BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer

BONENS 3299 cermet trimmer potentiometer motorized potentiometer



product name:

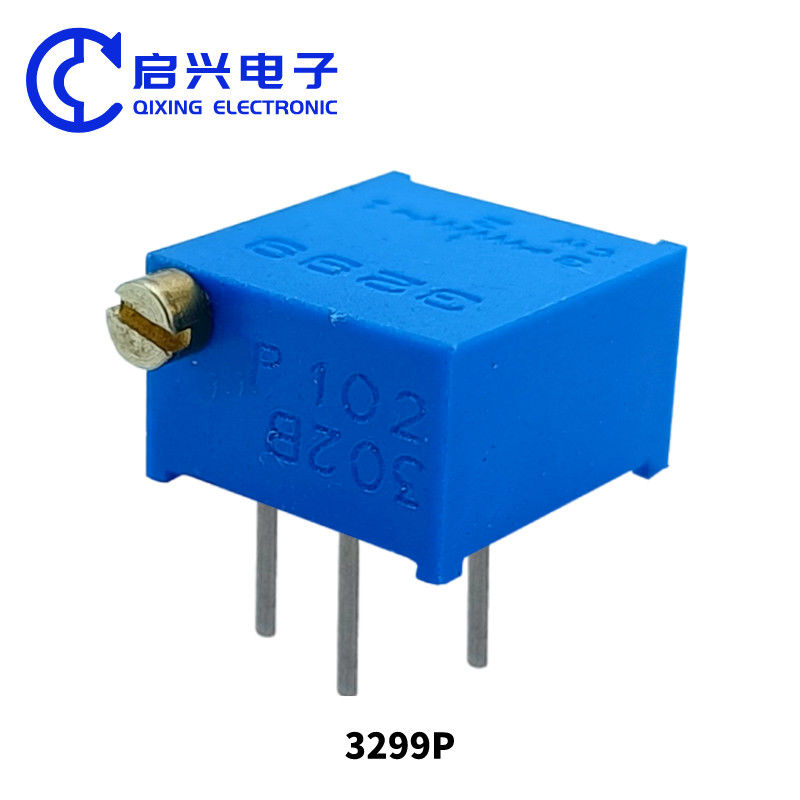

3299 multi-turn Adjustable ceramic trimmer potentiometer 1K 102

203 20K ohm trimpots 500k 5k

BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 0

product description:

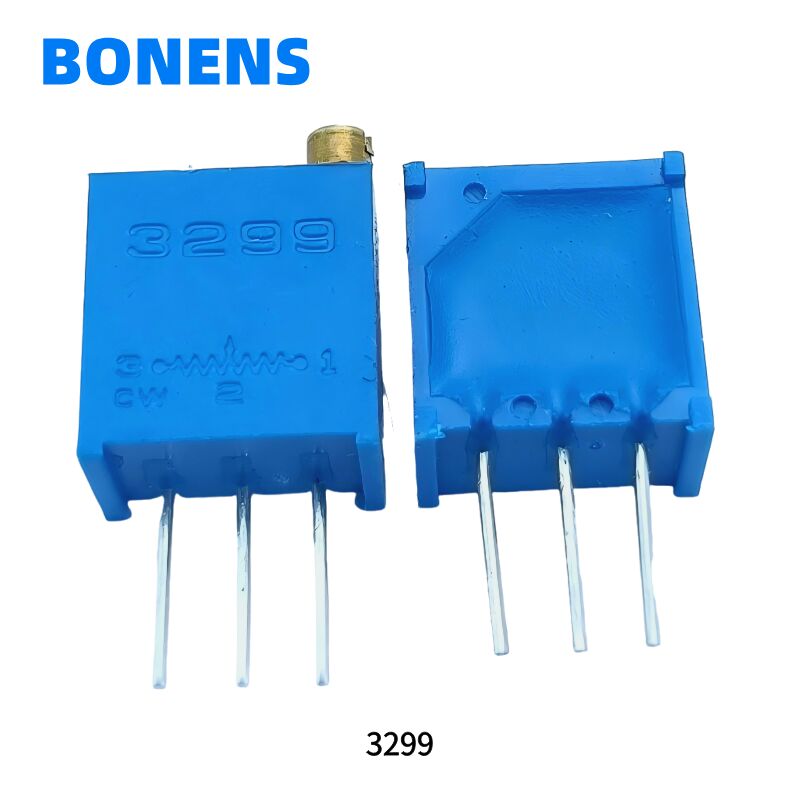

The adjustable potentiometer 3299 is an electronic component commonly used as a resistor in circuits. Its characteristic is that the resistance value can be changed by rotating the knob on the potentiometer, thus changing the parameters of the circuit.

BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 1

Product Features:

The 3299 adjustable potentiometer usually has three pins, one of which is the middle pin and the other two are endpoint pins. In the circuit, the middle pin is generally connected to one endpoint pin, and the other endpoint pin is connected to another circuit node, forming an adjustable resistor.



3299 Trimming Potentiometer
• Made of glass glaze resistor, with high rated power.
• Fully enclosed structure with excellent overall performance.
• Small size, easy to install in high density.
• Excellent heat and moisture resistance.
• Excellent welding performance, suitable for high temperature welding methods such as wave soldering.
BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 2
■ Various instruments and meters
■ Recommended installation method: Insert the potentiometer lead into the printed circuit board, press it tightly, and solder it firmly with tin.
■ Recommended adjustment method: Use a screwdriver for adjustment.
BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 3


Product size:



BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 4

Specification parameters:



Electrical
Characteristics
Range of nominal resistance 10Ω~5MΩ
Resistance tolerance ±10%
Terminal resistance ≤±1%R or 2Ω
Contact resistance variation (CRV) ≤±1%R or 3Ω
Insulation resistance ≥ 1GΩ (100V AC)
Withstand voltage 600V (DC or AC peak value)
Effective electrical travel ≥70% of mechanical travel
Environment
Characteristics
Rated power 0.5W ( 300V max)
Temperature range -55°C~+125°C
TCR ±250×10-6/°C
Collision (390m/S2, 4000 times) ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min, ΔR≤±2%R,
+125°C/30min, 5 cycles) ΔUab/Uac≤±2%R
Climate category (IEC68-2-2) ΔR≤± (5%R+0.1Ω), Insulation Resistance
Electrical endurance (0.25W, 1000h) ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles) ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h) ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ
Physical
Characteristics
Total mechanical travel 12±2 laps
Starting torque ≤25mN.m
Standard package 50 pcs /tube



application area:​



BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 5

3299 metal glass glaze pre adjustment and fine adjustment potentiometers are widely used in high-frequency circuits such as televisions, video recorders, radios, VCDs, DVD players, telephones, office automation equipment, various remote controllers, instruments, communication products, car audio, etc.



product catalog:

BONENS 3299 Cermet Trimmer Potentiometers Motorized Potentiometer 6

There are two types of glass glaze pre adjustment potentiometers:

multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
