Product Details
Place of Origin: China
Brand Name: BONENS
Certification: RoHS
Model Number: RX24/RXG24
Payment & Shipping Terms
Type: |
Aluminum Case Resistor |
Model: |
RX24/RXG24 |
Rated Power Range: |
5W~500W |
Allowable Resistance Deviation: |
5% |
Material: |
Wire Wound |
Temperature Coefficient: |
PTC |
Temperature Drift Range: |
≤300ppm/℃ |
Working Temperature Range: |
-55℃~+300℃ |
Power Characteristics: |
High-power |
Shape: |
Flat Sheet Shape |
Frequency Characteristic: |
UHF |
Type: |
Aluminum Case Resistor |
Model: |
RX24/RXG24 |
Rated Power Range: |
5W~500W |
Allowable Resistance Deviation: |
5% |
Material: |
Wire Wound |
Temperature Coefficient: |
PTC |
Temperature Drift Range: |
≤300ppm/℃ |
Working Temperature Range: |
-55℃~+300℃ |
Power Characteristics: |
High-power |
Shape: |
Flat Sheet Shape |
Frequency Characteristic: |
UHF |
product name

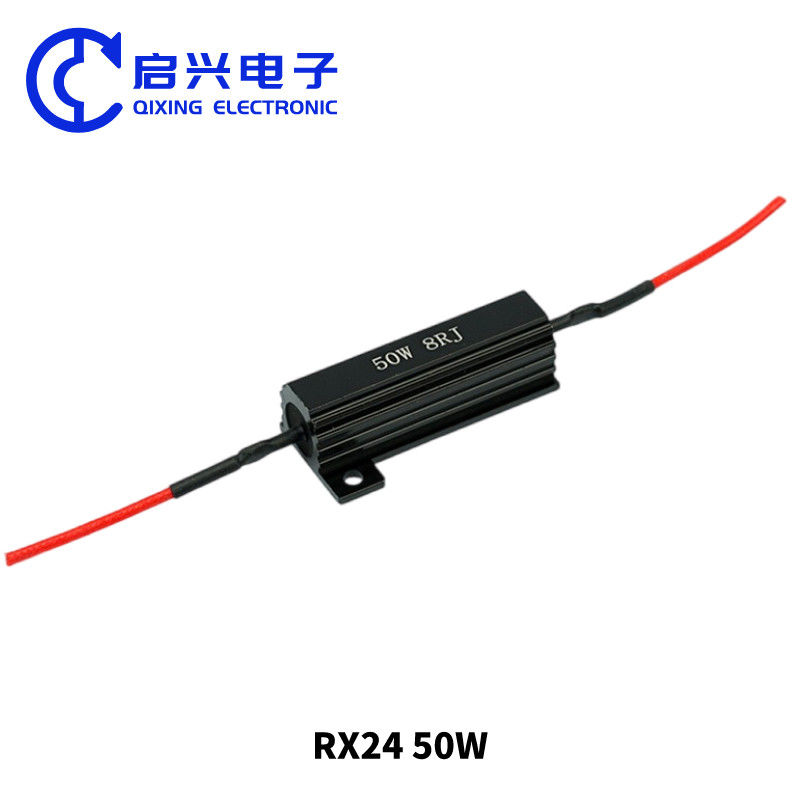

RX24 black aluminum shell resistor 50W metal aluminum shell resistor braking resistor
Product Description
The surface of the black aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use.
Features
1. Small size and high power
2. Sturdy structure and high stability;
3. Aluminum shell for heat dissipation, suitable for installation of heat dissipation panels.
4. Silicon copper film compression molding, good insulation performance;
5. Complies with lead-free/RoHS requirements
Product application
Application field of high-power gold aluminum shell resistors: widely used in the power supply, frequency converter, elevator, stage audio, and high-end equipment industries
Dimensions 尺寸
| Style | Dimensions unit:mm | ||||||||
| L1±2 | L2±1 | L3±1 | A±1 | B±1 | C±1 | E±0.3 | S±1 | H±0.5 | |
| RXG24 10w | 32 | 19 | 14 | 20 | 15.5 | 10.5 | 2 | 10 | 5 |
| RXG24 25w | 47 | 27 | 18 | 27 | 19 | 15 | 3.2 | 15.5 | 7 |
| RXG24 50w | 70 | 50 | 39 | 29 | 21 | 15 | 3.2 | 15.5 | 7 |
| RXG24 80w | 102 | 66 | 35 | 47 | 37 | 28 | 4.5 | 25 | 12 |
| RXG24 100w | 135 | 89 | 69 | 70 | 48 | 46 | 5 | 44.5 | 19.5 |
| RXG24 250w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
| RXG24 300w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
Technical Specifcations
| Style | Power Rating | Resistance range(Ω) | maximum working voltage(V) | Heat dissipation plate area |
(g) |
||||
| With heat dissipation plate | Without heat dissipation plate | KAL | NKAL (non-inductive) |
KAL | NKAL (non-inductive) |
surface area (cm²) |
thickness (mm) |
||
| RXG24 10w | 10 | 8 | 0.02-6K | 0.03-2.3K | 245 | 180 | 415 | 1 | 6 |
| RXG24 25w | 25 | 13 | 0.012-15K | 0.02-5.5K | 500 | 300 | 535 | 1 | 11 |
| RXG24 50w | 50 | 10 | 0.01-40K | 0.02-12K | 1300 | 600 | 995 | 1 | 30 |
| RXG24 80w | 80 | 45 | 0.1-3.0K | 0.1-3.0K | 1500 | 1000 | 995 | 3 | 90 |
| RXG24 100w | 100 | 50 | 0.4-50K | 0.12-25K | 1900 | 1340 | 995 | 3 | 160 |
| RXG24 250w | 250 | 60 | 0.6-80K | 0.15-40K | 2500 | 1750 | 4765 | 3 | 480 |
| RXG24 300w | 300 | 70 | 0.6-90K | 0.15-50K | 2500 | 1750 | 4765 | 3 | 550 |
Power Derationg Curve & Temp.Rise Curve
PowerDerationg Curve Temp.Rise Curve
Performance Characteristics
| 项目Items | 标准值Standard | 测试方法Test Methods |
| 短时间过负荷 Short time overload |
±1% | 2.5倍额定功率/5秒 2.5times power/5 seconds |
| 温度系数 Temperature Coefficient |
±200 PPM/℃ | 实验温度:室温+100℃ Test temperature:indoors Temp.100℃ |
| 耐热性 Resistance to solder heat |
±1% | 焊锡温度:350±10℃,时间:3秒 Solder Temp:350±10℃,time:3 seconds |
| 耐电压 Dielectric withstanding voltage |
无烧毁或绝缘性破坏 No breakdown or flashover |
施加直流电压500V持续1分钟 500V for 60 seconds |
| 耐湿负荷 Humidity Load Life |
±0.5% | 温度:40±2℃,相对湿度:90-95%,1倍额定工作电压 时间1000小时(1.5小时开0.5小时关)Rated voltage 1.5hr ON,0.5hr OFF at 40±2℃,90-95&RH for 1000h |
| 负荷寿命 Load Life |
±2.0% | 温度:25℃,1倍额定工作电压,时间1000小时 (1.5小时开0.5小时关)Rated voltage 1.5hr ON,0.5hr OFF at 25℃ for 1000hrs |
| 可焊锡性 Solderability |
吃锡面积95%以上 At least 95% coverage |
焊锡温度:235±5℃,时间:2±0.5秒 235±5℃ for 2±0.5 seconds |
Type Specification
High power gold aluminum shell wirewound resistorProduct Model Description
for example:RX24TM20W15RJ
| RXG24 | T | M | 20W | 15R | J |
| 产品类别Style | 小分类 Small classification |
安装方式 installation |
功率 Power |
成品阻值 Value |
误差 Tolerance |
| RXG24金黄色铝壳电阻 Golden resistance NKAL无感金黄色铝壳电阻 No-sense Golden resistance |
T-单边安装孔式 T-single side mounting hole type |
M-端子式 M-terminal type |
10W 25W 300W |
R01 0.01Ω R10 0.1Ω 15R 15Ω 40K 40KΩ |
F ±1% G ±2% J ±5% |
Product packaging
Product catalogs
LED light resistor
product name
Automotive LED turn signal gold aluminum housing resistor HID resistor
Product Description
Automotive light resistor, LED resistor, HID decoder resistor, aluminum case resistor, 50W resistor
1. Using high-temperature resistant ceramics as the resistance matrix, it has high heat dissipation performance
2. Select highly stable resistance alloy wire, wind it according to rigorous process methods, and spot weld it on two or more conductive terminals, making the resistance have strong impact resistance and high stability. Non combustible paint encapsulation provides effective protection for the resistance wire, thereby improving its service life;
3. According to different vehicle models and customer needs, assemble temperature fuses and plastic bases into finished products.
Features
1. Automobile adjustment resistors have the characteristics of high power, small size, low temperature, and stable performance;
2. A single resistor can achieve one or more resistance values;
3. The resistance matrix can be selected in different shapes such as circular, flat, or square according to different vehicle models and customer requirements. The resistance winding wire can be either flat or round. Can be corrugated wound: Plastic bases can be installed and assembled according to customer requirements, and can be customized with multiple colors;
4. Temperature fuses with different temperatures and requirements can also be equipped according to customers.
Product application
Widely used in different brands and types of cars (automotive blower resistance/fan speed control resistance/automotive taillight resistance).
Technical Specifcations
| model | rated power(W) | Resistance range (Ω) | Resistance Tolerance (%) |
temperature coefficient(×10- 6/℃) |
insulation voltage (V) |
Maximum overload voltage (V) |
|||||||||||||
| With heat dissipation plate | Without heat dissipation plate | ||||||||||||||||||
| RX24 | 5 | 3 | 0.012～1KΩ | F(±1%) J(±5%) |
±100 ±50 |
1000 | 1500 | ||||||||||||
| 10 | 8 | 0.010~1.5KΩ | |||||||||||||||||
| 20 | 12.5 | 0.012~7.5KΩ | |||||||||||||||||
| 30 | 15 | 0.012~10KΩ | |||||||||||||||||
| 50 | 20 | 0.010~15KΩ | |||||||||||||||||
| RXG24 | 75 | 45 | 0.012~20KΩ | 2000 | 3000 | ||||||||||||||
| 100 | 50 | 0.012~24KΩ | |||||||||||||||||
| 150 | 55 | 0.012~30KΩ | |||||||||||||||||
| 200 | 55 | 0.012~36KΩ | |||||||||||||||||
| 250 | 60 | 0.012~39KΩ | |||||||||||||||||
| 300 | 75 | 0.010~47KΩ | |||||||||||||||||
| 500 | 200 | 0.010~51KΩ | |||||||||||||||||
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
