RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor

Product Details

Place of Origin: China

Brand Name: BONENS

Certification: RoHS

Model Number: RX24/RXG24

Payment & Shipping Terms

Get Best Price
Highlight:

high power wire wound resistor

,

RXG24 high power wire wound resistor 5W

,

5w led indicator resistor

Type:
Aluminum Case Resistor
Model:
RX24/RXG24
Rated Power Range:
5W~500W
Allowable Resistance Deviation:
5%
Material:
Wire Wound
Temperature Coefficient:
PTC
Temperature Drift Range:
≤300ppm/℃
Working Temperature Range:
-55℃~+300℃
Power Characteristics:
High-power
Shape:
Flat Sheet Shape
Frequency Characteristic:
UHF
Type:
Aluminum Case Resistor
Model:
RX24/RXG24
Rated Power Range:
5W~500W
Allowable Resistance Deviation:
5%
Material:
Wire Wound
Temperature Coefficient:
PTC
Temperature Drift Range:
≤300ppm/℃
Working Temperature Range:
-55℃~+300℃
Power Characteristics:
High-power
Shape:
Flat Sheet Shape
Frequency Characteristic:
UHF
RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor
High power gold aluminum shell wire wound resistor 5W

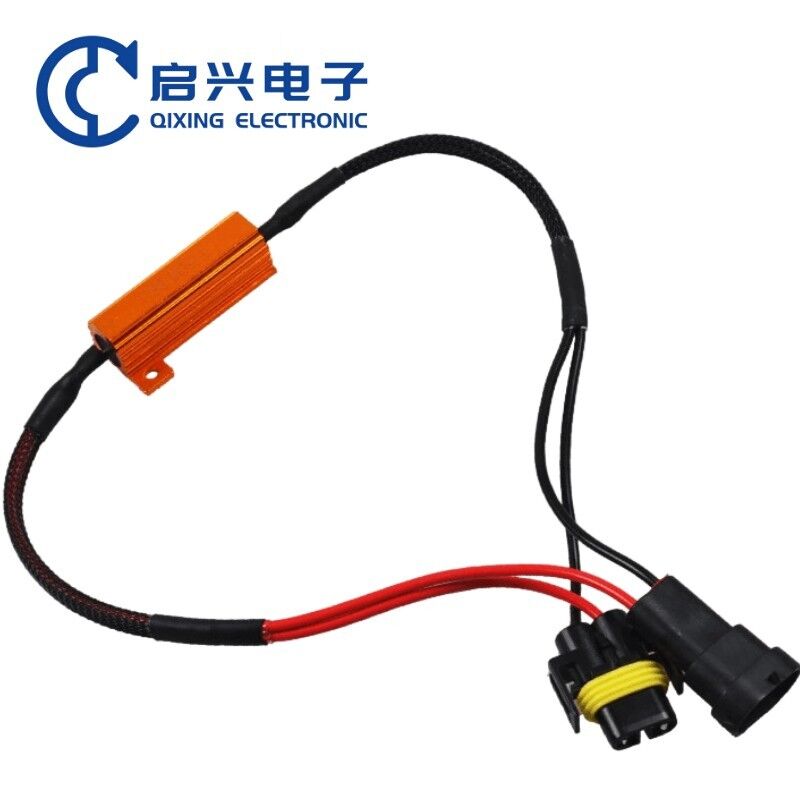

① LED RESISTOR FOR CAR LIGHTS



LED light resistor LED车灯电阻器

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 0

product name 产品名称

Automotive LED turn signal gold aluminum housing resistor HID resistor

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 1

Product Description 产品描述

Automotive light resistor, LED resistor, HID decoder resistor, aluminum case resistor, 50W resistor

1. Using high-temperature resistant ceramics as the resistance matrix, it has high heat dissipation performance
2. Select highly stable resistance alloy wire, wind it according to rigorous process methods, and spot weld it on two or more conductive terminals, making the resistance have strong impact resistance and high stability. Non combustible paint encapsulation provides effective protection for the resistance wire, thereby improving its service life;
3. According to different vehicle models and customer needs, assemble temperature fuses and plastic bases into finished products.

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 2



Features 产品特点

1. Automobile adjustment resistors have the characteristics of high power, small size, low temperature, and stable performance;

2. A single resistor can achieve one or more resistance values;

3. The resistance matrix can be selected in different shapes such as circular, flat, or square according to different vehicle models and customer requirements. The resistance winding wire can be either flat or round. Can be corrugated wound: Plastic bases can be installed and assembled according to customer requirements, and can be customized with multiple colors;

4. Temperature fuses with different temperatures and requirements can also be equipped according to customers.

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 3

Product application产品应用

Widely used in different brands and types of cars (automotive blower resistance/fan speed control resistance/automotive taillight resistance).



RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 4

Technical Specifcations 技术说明

model rated power(W) Resistance range (Ω) Resistance Tolerance
(%)
temperature coefficient(×10-
6/
)
insulation voltage
(V)
Maximum overload voltage
(V)
With heat dissipation plate Without heat dissipation plate
RX24 5 3 0.012~1KΩ F(±1%)
J(±5%)
±100
±50
1000 1500
10 8 0.010~1.5KΩ
20 12.5 0.012~7.5KΩ
30 15 0.012~10KΩ
50 20 0.010~15KΩ
RXG24 75 45 0.012~20KΩ 2000 3000
100 50 0.012~24KΩ
150 55 0.012~30KΩ
200 55 0.012~36KΩ
250 60 0.012~39KΩ
300 75 0.010~47KΩ
500 200 0.010~51KΩ



Performance Characteristics 主要参数

项目Items 标准值Standard 测试方法Test Methods
短时间过负荷
Short time overload
△R≤±(2%R0+0.05Ω) 增加10倍额定功率的电压或最高阻值并计算每度的阳值变化率
To increase the voltage of 10 times the rated power or the highest resistance and resistance change rate of each calculation
温度系数
Temperature Coefficient
±300PPM/℃ 实验温度:室温+100℃
Test temperature; indoors Temp.100℃
耐热性
Resistance to solder heat
△R≤±(1%R0+0.05Ω) 焊锡温度:350±10℃,时间:3秒
Solder Temp.:350±10℃,time:3 seconds
温度循环
Temperature cycling
△R≤±(5%R0+0.05Ω) 在-55℃时放置30分钟然后在+25℃时放置10 .15分钟,然后
再在+275℃时放置30分钟,然后再在+25℃时放置10-15分钟,共循环5次
In 55 DEG C when placed for 30 minutes and then at+25C placed 10-15 minutes, and then in+275 DEG C when the place 30 minutes, and then at+ 25 C placed 10-15 minutes,a total of 5 cycles
耐湿负荷
Humidity Load Life
△R≤±(5%R0+0.05Ω) 温度:40±2℃,相对湿度:90-95%,1倍额定工作电压,时间
1000小时(1.5小时开0.5小时关)
Rated voltage 1.5hr ON,0.5hr OFF at 40±2℃,90-95 &RH for 1000hrs'
耐温负荷寿命
Temperature resistance load life
△R≤±(5%R0+0.05Ω) 在70±2℃恒温恒湿箱中施加额定电压或最大工作电压(取较小者)
共1000小时(通1.5小时,断0.5小时)
In the 70 plus or minus 2 DEG C constant temperature and humidity box applied rated voltage, or the maximum working voltage (whichever is less) a total of 1000 hours (1.5 hours,0.5 hours)
可焊锡性
Solderability
吃锡面积95%以上
At least 95% coverage
焊锡温度:245±3℃,时间:2±0.5秒245±3℃ for 2-3 seconds
断续过负荷
Intermittent overload
△R≤±(1%R0+0.05Ω) 4倍额定电压或最高断续负荷电压(取较小者)测试1秒,停止25秒,
循环10000+200次
4 times the rated voltage or the maximum intermittent load voltage (whichever is smaller) to test a second, stop 25 seconds.loop 10000+200 times
引出端强度
Terminal tensile strength
△R±(2%R0+0.1Ω) 拉力10N
Tension 10N
耐燃性
Flame resistance
不可有明显火焰
There is no obvious fire
分别按5,10,16倍功率加交流负荷5分钟
Respectively, according to 5, 10,16 times the power plus AC load for 5 minutes



Type Specification型号说明

Aluminum Housing Resistor Car Lamp LED Resistor 20W

for example:RX24TM20W15RJ

RXG24 T M 20W 15R J
产品类别Style 小分类
Small classification
安装方式
installation
功率
Power
成品阻值
Value
误差
Tolerance
RXG24汽车电阻
Automobile resistance

T-单边安装孔式
S-双边安装孔式

T-single side mounting hole type
S-bilateral mounting hole type

M-端子式
Y-引线式

M-terminal type
Y-lead type

10W
25W
300W
R01   0.01Ω
R10     0.1Ω
15R       15Ω
40K    40KΩ
F ±1%
G ±2%
J ±5%

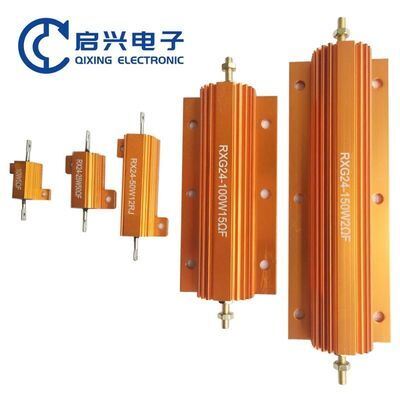

① GOLD ALUMINUM SHELL RESISTOR

product name 产品名称

High power gold aluminum shell resistor

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 5

Product Description 产品描述

The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use.

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 6

Features 产品特点

1. Small size and high power
2. Sturdy structure and high stability;
3. Aluminum shell for heat dissipation, suitable for installation of heat dissipation panels.

4. Silicon copper film compression molding, good insulation performance;
5. Complies with lead-free/RoHS requirements

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 7



Product application 产品应用

Application field of high-power gold aluminum shell resistors: widely used in the power supply, frequency converter, elevator, stage audio, and high-end equipment industries

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 8

Dimensions 尺寸

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 9

Style Dimensions unit:mm
L1±2 L2±1 L3±1 A±1 B±1 C±1 E±0.3 S±1 H±0.5
RXG24 10w 32 19 14 20 15.5 10.5 2 10 5
RXG24 25w 47 27 18 27 19 15 3.2 15.5 7
RXG24 50w 70 50 39 29 21 15 3.2 15.5 7
RXG24 80w 102 66 35 47 37 28 4.5 25 12
RXG24 100w 135 89 69 70 48 46 5 44.5 19.5
RXG24 250w 155 114 98 77 64 53 5 55.5 25
RXG24 300w 155 114 98 77 64 53 5 55.5 25



Technical Specifcations 技术说明

Style Power Rating Resistance range(Ω) maximum working voltage(V) Heat dissipation plate area


Weight

(g)

With heat dissipation plate Without heat dissipation plate KAL NKAL
(non-inductive)
KAL NKAL
(non-inductive)
surface area
(cm²)
thickness
(mm)
RXG24 10w 10 8 0.02-6K 0.03-2.3K 245 180 415 1 6
RXG24 25w 25 13 0.012-15K 0.02-5.5K 500 300 535 1 11
RXG24 50w 50 10 0.01-40K 0.02-12K 1300 600 995 1 30
RXG24 80w 80 45 0.1-3.0K 0.1-3.0K 1500 1000 995 3 90
RXG24 100w 100 50 0.4-50K 0.12-25K 1900 1340 995 3 160
RXG24 250w 250 60 0.6-80K 0.15-40K 2500 1750 4765 3 480
RXG24 300w 300 70 0.6-90K 0.15-50K 2500 1750 4765 3 550



Power Derationg Curve & Temp.Rise Curve 功率衰减曲线和升温曲线

RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 10 RXG24 High Power Wire Wound Resistor 5W LED Indicator Resistor 11

PowerDerationg Curve Temp.Rise Curve





Performance Characteristics 主要参数

项目Items 标准值Standard 测试方法Test Methods
短时间过负荷
Short time overload
±1% 2.5倍额定功率/5
2.5times power/5 seconds
温度系数
Temperature Coefficient
±200 PPM/ 实验温度:室温+100
Test temperature:indoors Temp.100
耐热性
Resistance to solder heat
±1% 焊锡温度:350±10,时间:3
Solder Temp:350±10,time:3 seconds
耐电压
Dielectric withstanding voltage
无烧毁或绝缘性破坏
No breakdown or flashover
施加直流电压500V持续1分钟
500V for 60 seconds
耐湿负荷
Humidity Load Life
±0.5% 温度:40±2,相对湿度:90-95%,1倍额定工作电压
时间1000小时(1.5小时开0.5小时关)Rated voltage
1.5hr ON,0.5hr OFF at 40±2
,90-95&RH for 1000h
负荷寿命
Load Life
±2.0% 温度:25,1倍额定工作电压,时间1000小时
(1.5小时开0.5小时关)Rated voltage 1.5hr ON,0.5hr
OFF at 25
for 1000hrs
可焊锡性
Solderability
吃锡面积95%以上
At least 95% coverage
焊锡温度:235±5,时间:2±0.5
235±5 for 2±0.5 seconds





Type Specification 型号说明

High power gold aluminum shell wirewound resistorProduct Model Description

for example:RX24TM20W15RJ



RXG24 T M 20W 15R J
产品类别Style 小分类
Small classification
安装方式
installation
功率
Power
成品阻值
Value
误差
Tolerance
RXG24金黄色铝壳电阻
Golden resistance
NKAL
无感金黄色铝壳电阻
No-sense Golden resistance

T-单边安装孔式
S-双边安装孔式

T-single side mounting hole type
S-bilateral mounting hole type

M-端子式
Y-引线式

M-terminal type
Y-lead type

10W
25W
300W
R01 0.01Ω
R10 0.1Ω
15R 15Ω
40K 40KΩ
F ±1%
G ±2%
J ±5%
