Product Details
Place of Origin: China
Brand Name: BONENS
Certification: RoHS
Model Number: RX24/RXG24
Payment & Shipping Terms
Type: |
Aluminum Case Resistor |
Model: |
RX24/RXG24 |
Rated Power Range: |
5W~500W |
Allowable Resistance Deviation: |
5% |
Material: |
Wire Wound |
Temperature Coefficient: |
PTC |
Temperature Drift Range: |
≤300ppm/℃ |
Working Temperature Range: |
-55℃~+300℃ |
Power Characteristics: |
High-power |
Shape: |
Flat Sheet Shape |
Frequency Characteristic: |
UHF |
Type: |
Aluminum Case Resistor |
Model: |
RX24/RXG24 |
Rated Power Range: |
5W~500W |
Allowable Resistance Deviation: |
5% |
Material: |
Wire Wound |
Temperature Coefficient: |
PTC |
Temperature Drift Range: |
≤300ppm/℃ |
Working Temperature Range: |
-55℃~+300℃ |
Power Characteristics: |
High-power |
Shape: |
Flat Sheet Shape |
Frequency Characteristic: |
UHF |
|

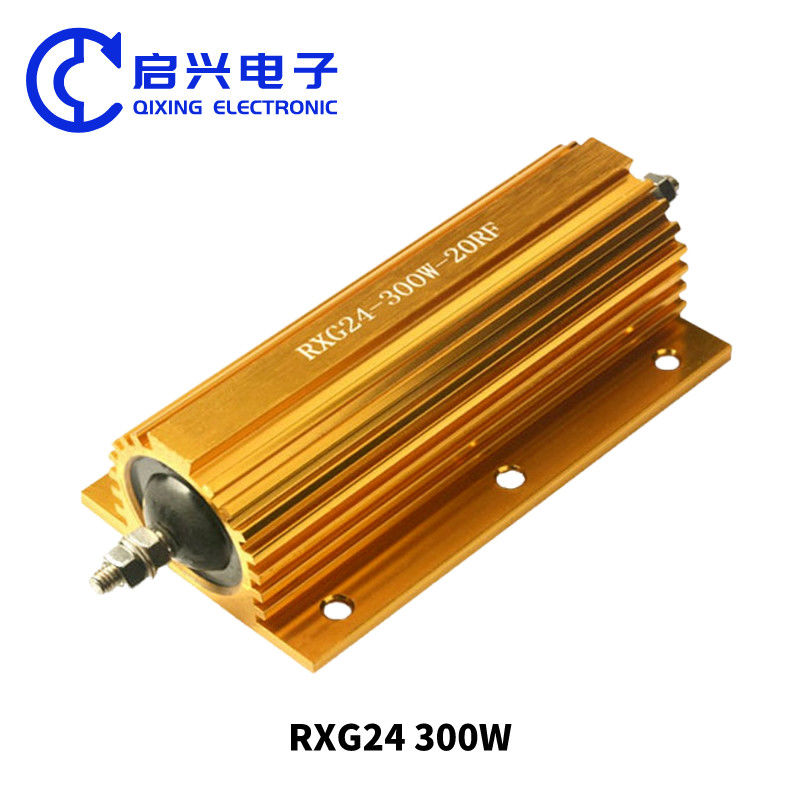

Product Name
|
Golden Aluminum Resistors
|
|
Material
|
Aluminum metal
|
|
Features
|
1. Good heat dissipation / impact resistance 2. High power / long service life
3. Low noise, suitable for good circuit board insulation 4. Short time overload resistance 5. The resistance value does not change for a long time, and the heat resistance is excellent 6. The shell adopts wave linear curve for heat dissipation |
| TYPE | D I M E N S I O N S ( m m ) | ||||||||||||
| A1±1 | A2± | B±1 | C±1 | D±1.5 | E±0.5 | F±0.5 | G±0.5 | H±0.5 | J±0.5 | K±0.5 | L±0.5 | M±0.5 | |
| RX24-100W | 35 | 35 | 37 | 98 | 130 | 27 | 48 | 26 | 3 | 11 | 14 | 5 | 4 |
| RX24-150W | 56 | 56 | 37 | 136 | 170 | 27 | 48 | 26 | 3 | 11 | 12 | 5 | 4 |
| RX24-200W | 63 | 63 | 37 | 155 | 185 | 27 | 48 | 26 | 3 | 11 | 14.5 | 5 | 4 |
| RX24-200WL | 35 | 35 | 58 | 92 | 125 | 46 | 73 | 45 | 5 | 20.5 | 12 | 6 | 6 |
| RX24-250W | 45 | 45 | 58 | 112 | 145 | 46 | 73 | 45 | 5 | 20.5 | 12 | 6 | 6 |
| RX24-300W | 52 | 52 | 58 | 128 | 160 | 46 | 73 | 45 | 5 | 20.5 | 12 | 6 | 6 |
| RX24-500W | 86 | 86 | 58 | 200 | 230 | 46 | 73 | 45 | 5 | 20.5 | 14 | 6 | 6 |
| RX24-800W | 100 | 100 | 58 | 250 | 282 | 46 | 73 | 45 | 5 | 20.5 | 25 | 6 | 6 |
| RX24-1000W | 123 | 123 | 58 | 300 | 332 | 46 | 73 | 45 | 5 | 20.5 | 27 | 6 | 6 |
