Product Details
Place of Origin: China
Brand Name: BONENS
Certification: RoHS
Model Number: RX24/RXG24
Payment & Shipping Terms
Type: |
Aluminum Case Resistor |
Model: |
RX24/RXG24 |
Rated Power Range: |
5W~500W |
Allowable Resistance Deviation: |
5% |
Material: |
Wire Wound |
Temperature Coefficient: |
PTC |
Temperature Drift Range: |
≤300ppm/℃ |
Working Temperature Range: |
-55℃~+300℃ |
Power Characteristics: |
High-power |
Shape: |
Flat Sheet Shape |
Frequency Characteristic: |
UHF |
Type: |
Aluminum Case Resistor |
Model: |
RX24/RXG24 |
Rated Power Range: |
5W~500W |
Allowable Resistance Deviation: |
5% |
Material: |
Wire Wound |
Temperature Coefficient: |
PTC |
Temperature Drift Range: |
≤300ppm/℃ |
Working Temperature Range: |
-55℃~+300℃ |
Power Characteristics: |
High-power |
Shape: |
Flat Sheet Shape |
Frequency Characteristic: |
UHF |
product name

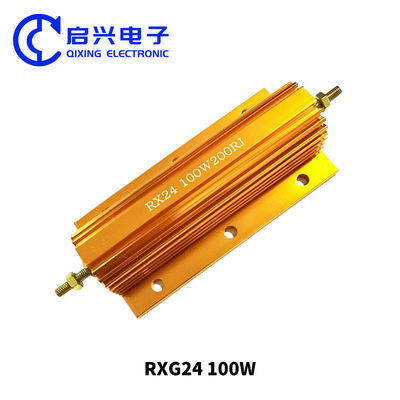

High power gold aluminum shell resistor
Product Description
The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use.
Features
1. Small size and high power
2. Sturdy structure and high stability;
3. Aluminum shell for heat dissipation, suitable for installation of heat dissipation panels.
4. Silicon copper film compression molding, good insulation performance;
5. Complies with lead-free/RoHS requirements
Product application
Application field of high-power gold aluminum shell resistors: widely used in the power supply, frequency converter, elevator, stage audio, and high-end equipment industries
Dimensions
| Style | Dimensions unit:mm | ||||||||
| L1±2 | L2±1 | L3±1 | A±1 | B±1 | C±1 | E±0.3 | S±1 | H±0.5 | |
| RXG24 10w | 32 | 19 | 14 | 20 | 15.5 | 10.5 | 2 | 10 | 5 |
| RXG24 25w | 47 | 27 | 18 | 27 | 19 | 15 | 3.2 | 15.5 | 7 |
| RXG24 50w | 70 | 50 | 39 | 29 | 21 | 15 | 3.2 | 15.5 | 7 |
| RXG24 80w | 102 | 66 | 35 | 47 | 37 | 28 | 4.5 | 25 | 12 |
| RXG24 100w | 135 | 89 | 69 | 70 | 48 | 46 | 5 | 44.5 | 19.5 |
| RXG24 250w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
| RXG24 300w | 155 | 114 | 98 | 77 | 64 | 53 | 5 | 55.5 | 25 |
Technical Specifcations
| Style | Power Rating | Resistance range(Ω) | maximum working voltage(V) | Heat dissipation plate area |
(g) |
||||
| With heat dissipation plate | Without heat dissipation plate | KAL | NKAL (non-inductive) |
KAL | NKAL (non-inductive) |
surface area (cm²) |
thickness (mm) |
||
| RXG24 10w | 10 | 8 | 0.02-6K | 0.03-2.3K | 245 | 180 | 415 | 1 | 6 |
| RXG24 25w | 25 | 13 | 0.012-15K | 0.02-5.5K | 500 | 300 | 535 | 1 | 11 |
| RXG24 50w | 50 | 10 | 0.01-40K | 0.02-12K | 1300 | 600 | 995 | 1 | 30 |
| RXG24 80w | 80 | 45 | 0.1-3.0K | 0.1-3.0K | 1500 | 1000 | 995 | 3 | 90 |
| RXG24 100w | 100 | 50 | 0.4-50K | 0.12-25K | 1900 | 1340 | 995 | 3 | 160 |
| RXG24 250w | 250 | 60 | 0.6-80K | 0.15-40K | 2500 | 1750 | 4765 | 3 | 480 |
| RXG24 300w | 300 | 70 | 0.6-90K | 0.15-50K | 2500 | 1750 | 4765 | 3 | 550 |
Performance Characteristics
| Items | Standard | Test Methods |
| Short time overload | ±1% | 2.5times power/5 seconds |
| Temperature Coefficient | ±200 PPM/℃ | Test temperature:indoors Temp.100℃ |
| Resistance to solder heat | ±1% | Solder Temp:350±10℃,time:3 seconds |
| Dielectric withstanding voltage | No breakdown or flashover | 500V for 60 seconds |
| Humidity Load Life | ±0.5% | Rated voltage 1.5hr ON,0.5hr OFF at 40±2℃,90-95&RH for 1000h |
| Load Life | ±2.0% | Rated voltage 1.5hr ON,0.5hr OFF at 25℃ for 1000hrs |
| Solderability | At least 95% coverage | 235±5℃ for 2±0.5 seconds |
