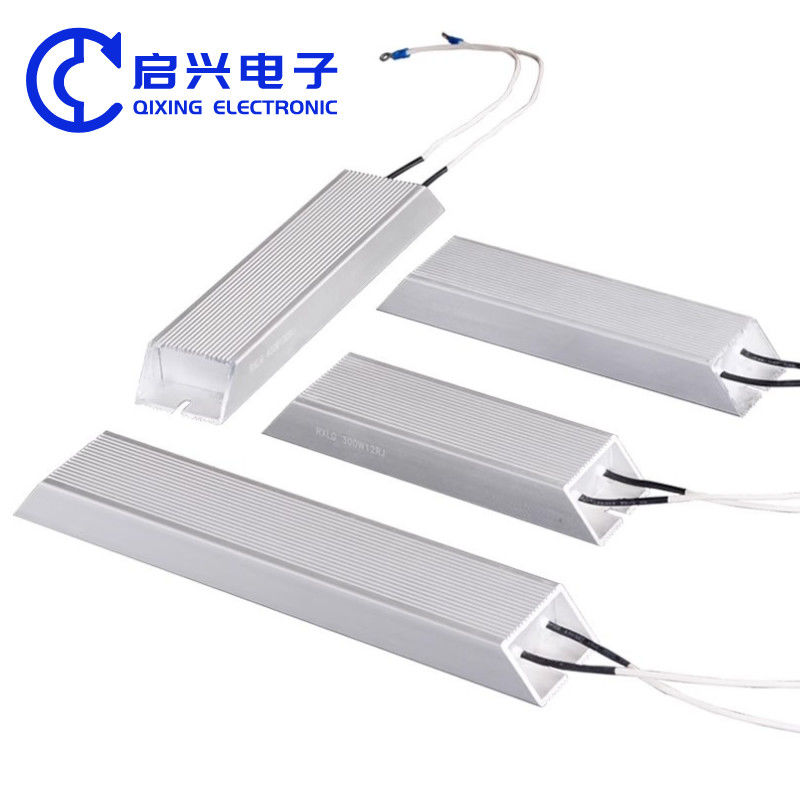

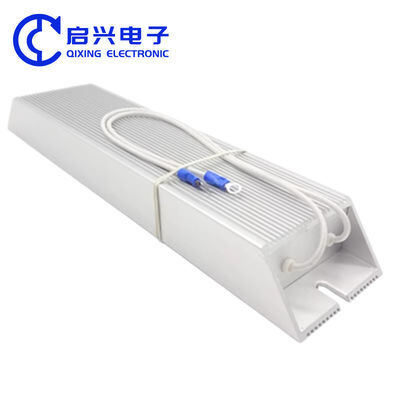

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors

Product Details

Place of Origin: Chengdu, Sichuan

Brand Name: BONENS

Model Number: RXLG

Payment & Shipping Terms

Get Best Price
Highlight:

Trapezoidal aluminium housing brake resistors

,

brake resistors for frequency converter

,

brake resistors for servo motors

Rated Power Range:
60w~2000w
Operating Voltage Range:
<1.5kV
Rated Resistance Range:
0.1Ω~100kΩ
Highest Withstand Pressure:
3000V
Highest Precision:
1%
IP Rating:
IP00/IP33
Vibration:
1.5g
Temperature Drift Range:
≤400ppm/℃
Working Temperature Range:
-55℃~+275℃
Wiring:
Thread / Lead / Insert
Rated Power Range:
60w~2000w
Operating Voltage Range:
<1.5kV
Rated Resistance Range:
0.1Ω~100kΩ
Highest Withstand Pressure:
3000V
Highest Precision:
1%
IP Rating:
IP00/IP33
Vibration:
1.5g
Temperature Drift Range:
≤400ppm/℃
Working Temperature Range:
-55℃~+275℃
Wiring:
Thread / Lead / Insert
Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors

Trapezoidal aluminium housing brake resistors are used in frequency converter servo motors



PRODUCT NAME

Braking resistor 150W aluminum case resistor frequency converter resistor

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 0



PRODUCT INTRODUCTION 产品介绍

RXLG trapezoidal aluminum shell resistor, also known as braking resistor, regeneration resistor, load resistor, discharge resistor, brake resistor, high-power resistor, discharge resistor, etc.

RXLG aluminum shell brake resistor adopts high heat dissipation aluminum alloy shell and high temperature resistant material as the resistance matrix, high insulation and non-combustible filler potting, and the resistance substrate is tightly combined with the resistance wire and metal shell, which has high stability and thermal conductivity. It has fast heat dissipation, vibration resistance, large power and strong overload resistance, small size, easy installation, beautiful appearance, suitable for harsh industrial control environment, and is an ideal supporting product for electronic power. It is widely used in inverter brakes, elevators, rolling mills, cranes, wire drawing machines, and load aging tests

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 1


PRODUCT MATERIAL DESCRIPTION 产品材质说明

RX20 porcelain tube high power load aging discharge brake adjustable sliding resistor

Outer shell Good heat dissipation, suitable for heat sink installation, high insulation, complete fusion welding structure, installed on the substrate should have heat absorption effect, with environmental protection molding structure, no inductive winding of low reactive components
Conducting wire Constantan wire or nichrome alloy wire, depending on the resistance value
Core materials Ceramic or talc porcelain depends on the physical size
Heat sinks The workmanship is fine, the winding is uniform, the use of inorganic coatings, and the insulation is durable. Overcome the biography

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 2

PRODUCT FEATURES 产品特点

RXLG trapezoidal aluminum case resistor features:
1. Small size, high power, strong overload capacity, good heat dissipation, weather resistance, vibration resistance·
2. Easy to install tightly, easy to attach radiator. It is suitable for use in demanding and harsh environments
3. RXLG series trapezoidal aluminum shell resistor is made of high heat dissipation aluminum alloy shell
4. High temperature resistant silicone resin and silica fume fully sealed filling material, non-toxic and odorless. Environmental protection, green and safe
5. The skeleton of the winding resistance wire is ceramic. The electrolytic wire is made of constantan and nickel-chromium. Ensure heat resistance, high temperature resistance, stable performance and long service life

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 3

ELECTRICAL CHARACTERISTICS 电器特征

The aluminum shell has good heat dissipation performance, weather resistance, vibration resistance, easy to install tightly, easy to attach radiators, and is suitable for use in high-demand and harsh environments.

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 4

PRODUCT SIZE 尺寸



功率
Power
尺寸/Dimension(mm)
A
±2
B±2 C±1 D±1 E±1 F±1 配线2
(mm)
端子 阻值范围
Resistance
图面
60W 115 96 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
80W 140 121 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
100W 165 146 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
120W 190 171 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
150W 215 196 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
200W 165 135 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
300W 215 185 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
400W 265 235 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
500W 335 305 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
800W 400 381 61 59 5.5 40 2.5 3.5-6S 0.1Ω-10KΩ PictureB
1KW 400 382 50 108 5.5 30 2.5 3.5-7S 0.1Ω-10KΩ PictureB
1.2KW 450 432 50 108 5.5 30 2.5 3.5-8S 0.1Ω-10KΩ PictureB
1.5KW 485 467 50 108 5.5 30 2.5 3.5-9S 0.1Ω-10KΩ PictureB
2KW 650 632 50 108 5.5 30 2.5 3.5-10S 0.1Ω-100KΩ PictureB

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 5

SURFACE TEMPERATURE RISE CURVE

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 6

DERATING CURVE





APPTrapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 7

LICATION AREA 应用领域
1. RXLG trapezoidal aluminum shell resistor is used as a braking resistor to protect the inverter and servo from the harm of motor regenerative power
2. RXLG trapezoidal aluminum shell resistor is used as a false load in power electronic equipment such as generators and inverter systems to test the performance indicators of the equipment
3. RXLG trapezoidal aluminum shell resistors are used as sampling resistors, current limiting resistors, starting resistors, discharge resistors, charging resistors, regeneration resistors, and respawning resistors in power electronic equipment
4. RXLG trapezoidal aluminum shell resistor is used as a current limiting element or voltage divider element in the circuit of inverter, servo, power supply and other equipment to regulate and stabilize current and voltage

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 8

PRODUCTION PACKAGING 生产包装

RXLG aluminium brake resistors are individually packaged in cartons

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 9

Finished product identification code



RXLG 200 50R J L
Product Category rated power resistance Accuracy Wiring
RXLG series (trapezoidal aluminum shell) 50=50W
100=100W
R1=0.1Ω
100R=100Ω
F=±1%
G=±2%
H=±3%
J=±5%
K=±10%
T = thread
L = lead
P = insert

*Remarks: RXLG 200W 50Ω ±5%, model: RXLG-200-50RJ-L; low inductance, add the letter N in the model, for example: N RXLG-200-50RJ

Trapezoidal Aluminium Housing Brake Resistors For Frequency Converter Servo Motors 10

Resistors are recommended for use

Resistance in the use of the circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance, so 2W resistance is needed
