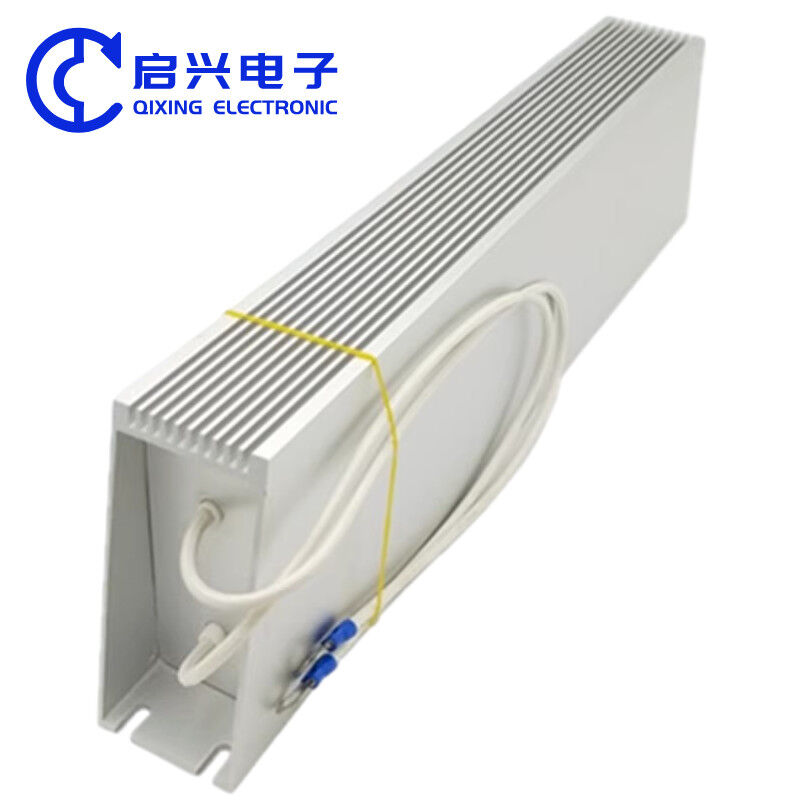

RXLG Inverter Aluminum Case Brake Resistor 1000W 75RJ Servo Motor Regenerative Brake Resistor 1000W 20RJ

PRODUCT NAME

RXLG Inverter Aluminum Case Brake Resistor 1000W 75RJ Servo Motor Regenerative Brake Resistor 1000W 20RJ

PRODUCT INTRODUCTION

RXLG trapezoidal aluminum shell resistor, also known as braking resistor, regeneration resistor, load resistor, discharge resistor, brake resistor, high-power resistor, discharge resistor, etc.

RXLG aluminum shell brake resistor adopts high heat dissipation aluminum alloy shell and high temperature resistant material as the resistance matrix, high insulation and non-combustible filler potting, and the resistance substrate is tightly combined with the resistance wire and metal shell, which has high stability and thermal conductivity. It has fast heat dissipation, vibration resistance, large power and strong overload resistance, small size, easy installation, beautiful appearance, suitable for harsh industrial control environment, and is an ideal supporting product for electronic power. It is widely used in inverter brakes, elevators, rolling mills, cranes, wire drawing machines, and load aging tests

PRODUCT MATERIAL DESCRIPTION

RX20 porcelain tube high power load aging discharge brake adjustable sliding resistor

PRODUCT FEATURES

RXLG trapezoidal aluminum case resistor features:
1. Small size, high power, strong overload capacity, good heat dissipation, weather resistance, vibration resistance·
2. Easy to install tightly, easy to attach radiator. It is suitable for use in demanding and harsh environments
3. RXLG series trapezoidal aluminum shell resistor is made of high heat dissipation aluminum alloy shell
4. High temperature resistant silicone resin and silica fume fully sealed filling material, non-toxic and odorless. Environmental protection, green and safe
5. The skeleton of the winding resistance wire is ceramic. The electrolytic wire is made of constantan and nickel-chromium. Ensure heat resistance, high temperature resistance, stable performance and long service life

ELECTRICAL CHARACTERISTICS

The aluminum shell has good heat dissipation performance, weather resistance, vibration resistance, easy to install tightly, easy to attach radiators, and is suitable for use in high-demand and harsh environments.

PRODUCT SIZE

SURFACE TEMPERATURE RISE CURVE

DERATING CURVE

APP

LICATION AREA
1. RXLG trapezoidal aluminum shell resistor is used as a braking resistor to protect the inverter and servo from the harm of motor regenerative power
2. RXLG trapezoidal aluminum shell resistor is used as a false load in power electronic equipment such as generators and inverter systems to test the performance indicators of the equipment
3. RXLG trapezoidal aluminum shell resistors are used as sampling resistors, current limiting resistors, starting resistors, discharge resistors, charging resistors, regeneration resistors, and respawning resistors in power electronic equipment
4. RXLG trapezoidal aluminum shell resistor is used as a current limiting element or voltage divider element in the circuit of inverter, servo, power supply and other equipment to regulate and stabilize current and voltage

PRODUCTION PACKAGING

RXLG aluminium brake resistors are individually packaged in cartons

Finished product identification code

*Remarks: RXLG 200W 50Ω ±5%, model: RXLG-200-50RJ-L; low inductance, add the letter N in the model, for example: N RXLG-200-50RJ

Resistors are recommended for use

Resistance in the use of the circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance, so 2W resistance is needed
