Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: 3006 series
Payment & Shipping Terms
Standard Package: |
25 Pcs /tube(3006P) 20 Pcs /tube(3006P-T) |
Range Of Nominal Resistance: |
10Ω~5MΩ |
Resistance Tolerance: |
±10% |
Rated Power: |
0.5W ( 300V Max) |
Total Mechanical Travel: |
22±2 Laps |
Temperature Range: |
-55°C~+125°C |
TCR: |
±250×10-6/°C |
Starting Torque: |
≤35mN.m |
Effective Electrical Travel: |
≥70% Of Mechanical Travel |
Withstand Voltage: |
640V (DC Or AC Peak Value) |
Insulation Resistance: |
≥ 1GΩ (100V AC) |
Contact Resistance Variation (CRV): |
≤±1%R Or 3Ω |
Terminal Resistance: |
≤±1%R Or 2Ω |
Standard Package: |
25 Pcs /tube(3006P) 20 Pcs /tube(3006P-T) |
Range Of Nominal Resistance: |
10Ω~5MΩ |
Resistance Tolerance: |
±10% |
Rated Power: |
0.5W ( 300V Max) |
Total Mechanical Travel: |
22±2 Laps |
Temperature Range: |
-55°C~+125°C |
TCR: |
±250×10-6/°C |
Starting Torque: |
≤35mN.m |
Effective Electrical Travel: |
≥70% Of Mechanical Travel |
Withstand Voltage: |
640V (DC Or AC Peak Value) |
Insulation Resistance: |
≥ 1GΩ (100V AC) |
Contact Resistance Variation (CRV): |
≤±1%R Or 3Ω |
Terminal Resistance: |
≤±1%R Or 2Ω |

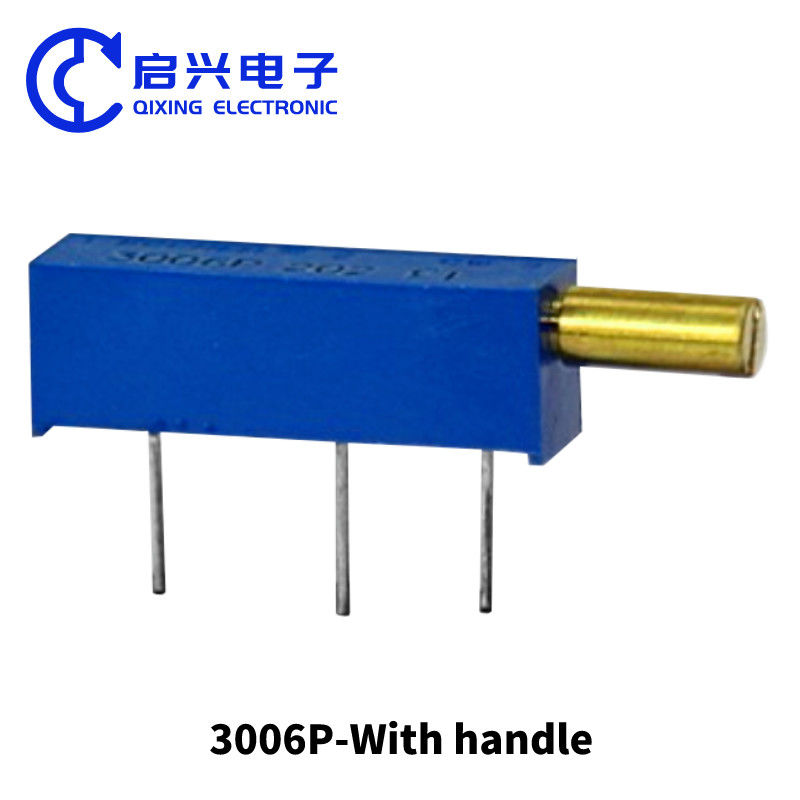

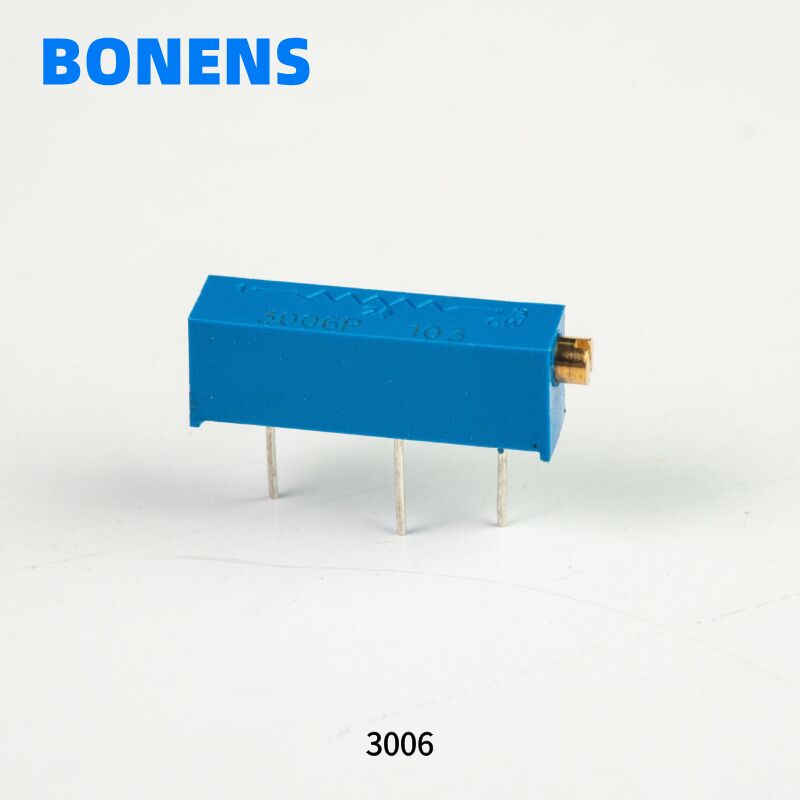

3006P 7mm Adjustable Precision Multi turn Metal Glass Glass trimmer potentiometer 10k
product name:
3006P adjustable precision multi-ring metal glass glaze preadjustable potentiometer
product description:
The 3006 series multi turn metal glass glaze fine adjustment potentiometer is composed of a glass glaze resistor and a rotating or sliding system. The knob clockwise adjusts the resistance value, allowing for flexible adjustment of voltage and current. The 3006P potentiometer housing is made of ABS resin material, with insulation, flame retardancy, high strength, durability, and wear resistance. The application range of the 3006 multi turn glass glaze pre adjustment potentiometer is voltage divider, rheostat, and current controller. The 3006P has high stability and long service life, It can meet various applications.
Product Features:
3/4 "Rectangular / Multiturn / Cermet /Industrial / Sealed
Low PC board profile - only 1/4 " high
Panel mount option available
RoHS compliant version available
For trimmer applications/processingquidelines
Product size:(产品尺寸)
,
Specification parameters:(规格参数)
Electrical Characteristics |
Range of nominal resistance | 10Ω~5MΩ |
Resistance tolerance | ±10% | |
Terminal resistance | ≤±1%R or 2Ω | |
Contact resistance variation (CRV) | ≤±1%R or 3Ω | |
Insulation resistance | ≥ 1GΩ (100V AC) | |
Withstand voltage | 640V (DC or AC peak value) | |
Effective electrical travel | ≥70% of mechanical travel | |
Environment Characteristics |
Rated power | 0.5W ( 300V max) |
Temperature range | -55°C~+125°C | |
TCR | ±250×10-6/°C | |
Collision (390m/S2, 4000 times) | ΔR≤±1%R | |
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|
Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|
Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|
Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|
Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|
Physical Characteristics |
Total mechanical travel | 22±2 laps |
Starting torque | ≤35mN.m | |
Standard package | 25 pcs /tube(3006P) | |
20 pcs /tube(3006P-T) |
application area:
Widely used in various electronic devices, including audio devices, electronic instruments, communication equipment, etc. It is commonly used for functions such as calibrating circuits, adjusting volume, and controlling brightness.
product catalog:
There are two types of glass glaze pre adjustment potentiometers: multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
