Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: BC1
Payment & Shipping Terms
Nominal Resistance Range: |
1Ω~5kΩ |
Resistance Error Error: |
±10% |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Maximum Heating Temperature: |
350° |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Temperature Range: |
-55℃~350℃ |
Vibration: |
10~200HZ,40m/S2, 3h△R≤±3%R |
Temperature Circulation: |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Load -resistant: |
R≤1KQ,5000 Cycles R≤1KQ, 1000 Cycles△R≤±5%R |
Shock: |
60 ~ 100 Times/min, 150m/s2,4000 Times Electrical Contact Is Good, Inadvertently Damaged |
Nominal Resistance Range: |
1Ω~5kΩ |
Resistance Error Error: |
±10% |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Maximum Heating Temperature: |
350° |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Temperature Range: |
-55℃~350℃ |
Vibration: |
10~200HZ,40m/S2, 3h△R≤±3%R |
Temperature Circulation: |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Load -resistant: |
R≤1KQ,5000 Cycles R≤1KQ, 1000 Cycles△R≤±5%R |
Shock: |
60 ~ 100 Times/min, 150m/s2,4000 Times Electrical Contact Is Good, Inadvertently Damaged |

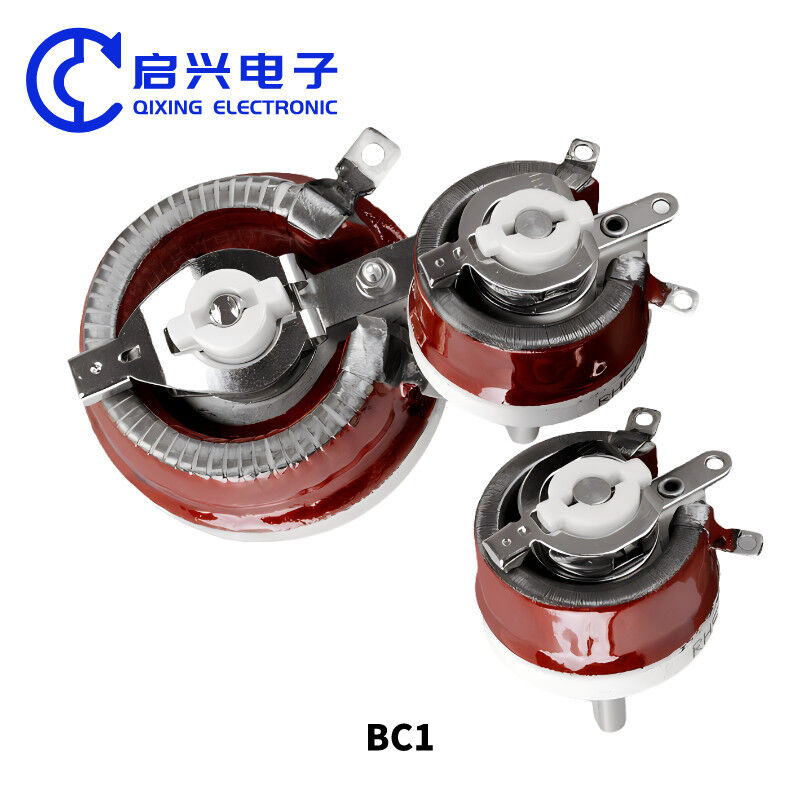

BC1 disc adjustable resistance electric welding machine generator current adjustable resistance 100W
product name:
BC1 -type rotor -type variable resistor/BC1 disc adjustable resistor/BC1 disk variable resistor/BC1 variable resistor/BC1 porcelain disk resistor/BC1 porcelain disk resistor
Circular disk resistor BC1 25W 50W 100W 200W 300W 1K adjustable potentiometer wire wound ceramic disk resistor
product description:
1. TheBC1 series adjustable resistance is usually called a resistor or potentiometer, which can be used as two connections of the resistor, or as a potentiometer with three connection terminals.
2. On one resistance, you can use different resistance winding wires to make multiple resistance values.
3. It has characteristics such as large power, humidity resistance, and wide resistance range.
4. Width of the power range, the maximum power can be 1500W, the higher power can be negotiated and customized
5. The production cycle is 5-7 days.
6. TheBC1 series variable resistance is to use high -quality resistance alloy wires to wrap around the C -type ceramic ring, except for sliding contact surface, the entire resistance ring is coated with non -combustible resin paint After a special electronic adhesion, the winding resistance ring is fixed on the circular chassis and is baked by high temperature before assembling other hardware accessories and the adjustment of the adjusted parts. Get the resistance value.
7. Ceramic materials and knobs can be changed according to customer needs.
Product Features:
The BC1 -type rotor -type barrier is fixed with alloy resistance wire around the ring -shaped ceramic skeleton and fixed with a high temperature glaze. The center of the disk is equipped with a rotor to drive the brush on the resistor body to obtain the changing resistance value. The BC1 variable resistor has the advantages of large power, humidity resistance, and large regulation range. Applicable to low -frequency AC or DC electrical equipment for regulating control voltage, current or adjustable load resistance, etc.
The BC1 American high -power disk disc adjusts the resistor slip dynamic resistor is manually operated by a rotary arm, the resistance value can be adjusted, naturally cools, the surface is damp to the glaze, the power is high, the overload capacity is strong and high -resistant, the resistance value is accurate, stable and durable, high quality, high quality, high quality, high quality Resistance wire, longer life and stable
|
copper shaft Stainless steel base nut |
| 75 ceramic chassis Red Enamel Glaze copper wire |
|
|
High power 1000W 1500W 2000W Three potentiometer Four potentiometer customizable |
Product size:
| 功率(W) RATED POWER |
阻值范围(Q) RESISTANCE RANGE |
A | B | F |
| 25W | 1Q-5KΩ | 40 | 45 | 60 |
| 50W | 1Ω-5KΩ | 62 | 70 | 65 |
| 100W | 1Ω-5KΩ | 82 | 91 | 65 |
| 150W | 1Ω-5KΩ | 102 | 110 | 75 |
| 300W | 1Ω-5KΩ | 150 | 170 | 110 |
| 500W | 1Ω-5KΩ | 200 | 190 | 110 |
Specification parameters:
| 电阻特性 ELECTRICAL CHARACTERISTICS |
环境特性 ENVIRONMENT CHARACTERISTICS |
||
| 标准阻值范围 Standard resistance range |
1Ω~5KΩ | 温度范围 temperature range |
-55℃~350℃ |
| 阻值允许误差 Resistance error error |
土10% | 振动 vibration |
10~200HZ,40m/S2, 3h△R≤±3%R |
| 终端电阻值 Terminal resistance |
≤0.2%or 1Ω | 温度循环 Temperature circulation |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
| 绝缘电阻 Insulation resistance |
≥100mΩ(500Vdc) | 受潮 Dampness |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
| 最高发热温度 Maximum heating temperature |
350℃ | 负荷耐磨 Load -resistant |
R≤1KQ,5000 cycles R≤1KQ, 1000 cycles△R≤±5%R |
| 总机械行程 Head mechanical itinerary |
300°±10° | 冲击 Shock |
60 ~ 100 times/min, 150m/s2,4000 times Electrical contact is good, inadvertently damaged |
application area:
Applicable online communication, transportation railway, electrical equipment, medical equipment, industrial equipment, low -frequency AC or DC electrical equipment for regulating control voltage, current or adjustable load resistance
