product name

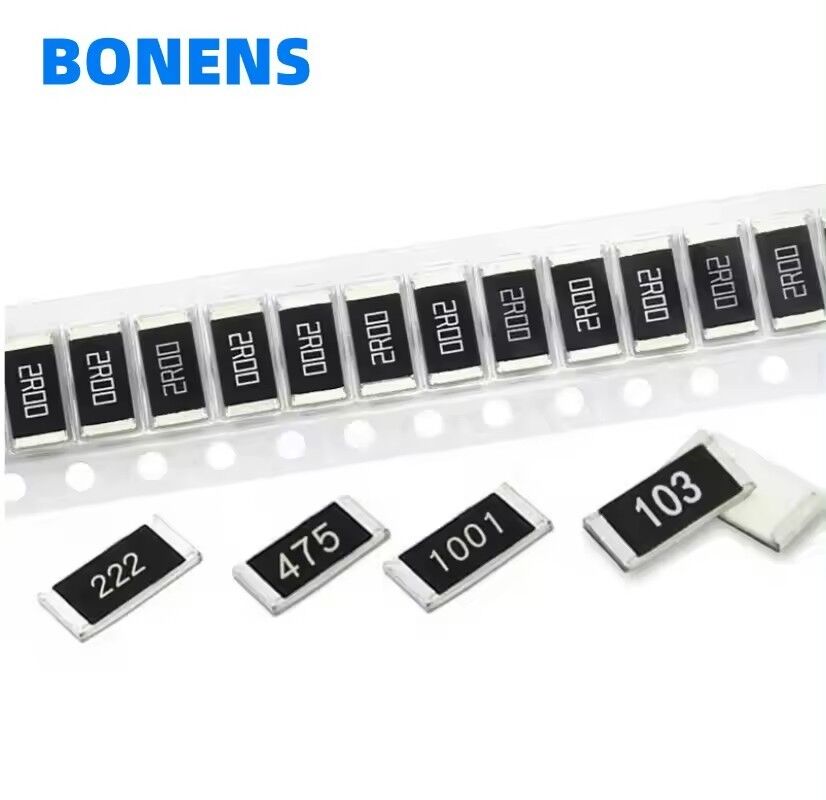

SMD resistor 0402 0603 0805 1206 1210 1812 2010 2512 1% precision high power resistor 330R 360R 390R 430R ohm
product description
Chip fixed resistor, translated directly from chip fixed resistor, commonly known as chip resistor, is a type of metal glass glazed resistor. It is a resistor made by mixing metal powder and glass glaze powder and printing them on a substrate using screen printing method. Durable to moisture and high temperatures, with a small temperature coefficient, it can greatly save circuit space costs and make the design more refined.
The working temperature range of SDM resistors is -55~+125 ° C, and the maximum working voltage depends on the size: 0201 is the lowest, 0402 and 0603 are 50V, 0805 is 150V, and other sizes are 200V
Product Features
1. Small size and light weight
2. Stable electrical performance and high reliability
3. Low assembly cost and matching with automatic mounting equipment
4. High mechanical strength and superior high-frequency characteristics
Resume
1.Small size & light weight
2.Reduction of assembly costs and matching with placement machine.
3.Suitable for both wave & re-flow soldering
4.Applications: Navigator (GPS), Mobile Phone,Telecom.PDA, Setbox,Meter.
Construction
1. DAlumina Substrate
2. Bottom Electrode
3. Top Electrode
4. Edge Electrode
5. Barrier Layer
6. External Electrode
7. DResistor Layer
8. Overcoat
9. Marking
Product size
| model | L | W | T | D1 | D2 |
| 01005 | 0.40±0.02 | 0.20±0.02 | 0.13±0.02 | 0.10±0.05 | 0.10±0.05 |
| 0201 | 0.60±0.03 | 0.30±0.03 | 0.23 ±0.03 | 0.10±0.05 | 0.15±0.05 |
| 0402 | 1.00±0.10 | 0.50±0.05 | 0.35+0.10 | 0.20±0.10 | 0.25+0.10 |
| 0603 | 1.60±0.10 | 0.80±0.15 | 0.45+0.10 | 0.30±0.20 | 0.30±0.20 |
| 0805 | 2.00±0.15 | 1.25±0.15 | 0.55±0.10 | 0.45±0.20 | 0.40±0.20 |
| 1206 | 3.10 ±0.15 | 1.55±0.15 | 0.55+0.10 | 0.45±0.20 | 0.45+0.20 |
| 1210 | 3.10 ±0.10 | 2.60±0.15 | 0.55+0.10 | 0.50±0.25 | 0.60±0.25 |
| 1812 | 4.50±0.20 | 3.20±0.20 | 0.55+0.20 | 0.55+0.20 | 0.60±0.30 |
| 2010 | 5.00 +0.20 | 2.50±0.20 | 0.55+0.10 | 0.60±0.25 | 0.60±0.30 |
| 2512 | 6.35±0.10 | 3.20±0.15 | 0.55±0.10 | 0.75±0.35 | 0.80±0.40 |
| 2512* | 6.35±0.10 | 3.20±0.15 | 1.10±0.10 | 0.60±0.25 | 1.80±0.20 |
Specification parameters
| Test Items | Reference | Condition of Test | Test Limits |
| Temperature Coefficient of Resistance | IEC60115-14.8 | +25~125℃ | Refer 4.0 |
| High Temperature Exposure(Storage) | MIL-STD-202 Method 108 | T=125℃,1000hrs,Measurement at 24hrs after test conclusion. | <±1% |
| Low temperature operation | IEC60115-14.23.4 | -55 ℃ for 45 min | <±0.5% |
| Temperature Cycling | JESD22 Method JA-104 | 1000Cycle (-55℃ to 125℃ ),Measurement at 24hrs after test conclusion. | <±0.5% |
| Short time overload | IEC60115-14.13 | 5 X rated power for 5s | <±0.5% |
| Biased Humidity | MIL-STD-202 Method 103 | 10%Rated voltage at 85℃,RH:85%,1000Hrs,Measurement at 24hrs after test conclusion. | <±0.5% |
| Operation life | MIL-STD-202 Method 108 | 1000 h at+70℃.1.5 h"ON",0.5 h“OFF” | <±1% |
| Resistance to Soldering Heat | IEC60115-14.18 | T=260+/-5C solder.10+1-1 sec dwell | <±0.5% |
| Mechanical Shock | MIL-STD-202 Method 213 | 100g's,Normal duration is 6ms,half sine shock pulse | <±0.5% |
| Resistance to vibration | MIL-STD-202 Method 204 | 5g's for 20min.12cycles,10-2000Hz | <±0.5% |
| Board Flex | AEC-Q200-005 | Min 2mm deflection,60sec | <±0.5% |
| Flammability | UL-94 | V-0 or V-1are acceptable,Electrical test not required |
application area
This product is widely used in computers, industrial equipment, wide resistance range, automatic control equipment, communication equipment, medical equipment, high-tech multimedia electronic equipment, etc
