BC1 Variable Power Resistor Rheostat Round Disk Wirewound Adjustable Resistor 25W 50W 100W 150w 200W 300W

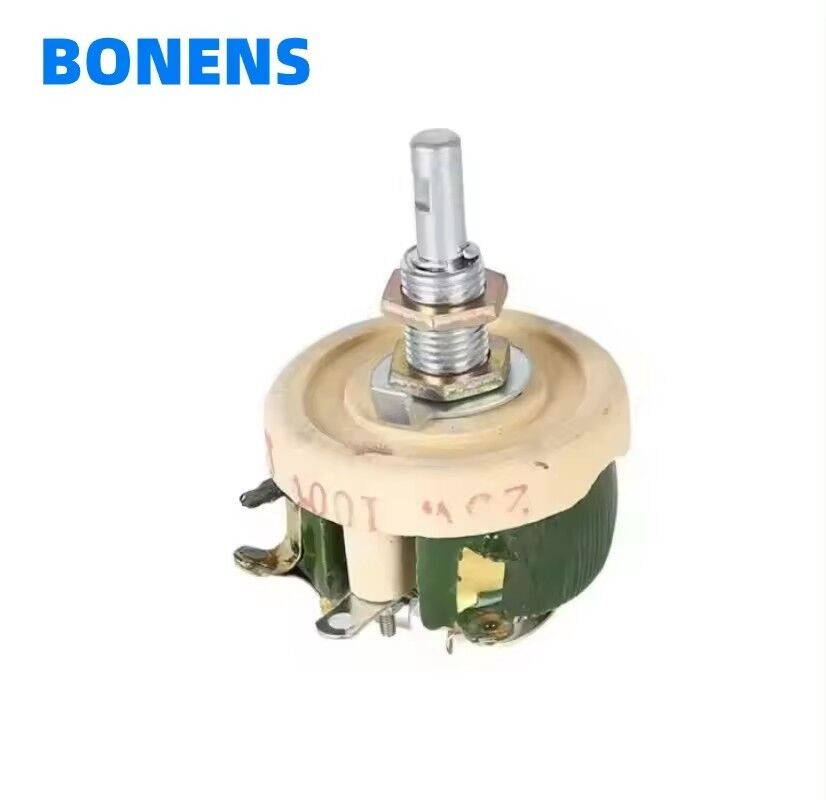

♦BC1 Disk variable resistor photos show:

♦BC1 Disk variable resistor data list:

Electrical Characteristics:

Range of nominal resistance.........1Ω~10KΩ

Resistance tolerance.........±10%

Terminal resistance.........≤0.2% or 1Ω

Insulation resistance.........≥100mΩ(500Vdc)

Max heating temperature.........350°

Environment Characteristics:

Rated power.......................300W @ 85°,or @ 400

Temperature range.................-55°~400°

Vibration.........................10~200HZ, 40m/S2, 3h ΔR≤±3%R

Thermal cycles....................-55°,30min,85°,30min Cycle 3 times ,ΔR≤±3%R, R1≥500MΩ

Moisture..................40±2°,RH:95%-98% 48h ΔR≤±3%R, R1≥100MΩ

Collision............................60~100 times/min, 150m/S2, 4000 times

Physical Characteristics:

Total mechanical travel..........300°±10°

♦BC1 Disk variable resistor dimentions:

1pcs/box  ,12pcs/carton

Send by DHL/UPS/FEDEX/TNT and Land and sea transport
