emi filters for washing machine

Product Details

Place of Origin: Sichuan, China

Brand Name: BONENS

Model Number: DBA4-16A

Payment & Shipping Terms

Get Best Price
Highlight:
emi filters for washing machine

PRODUCT NAME

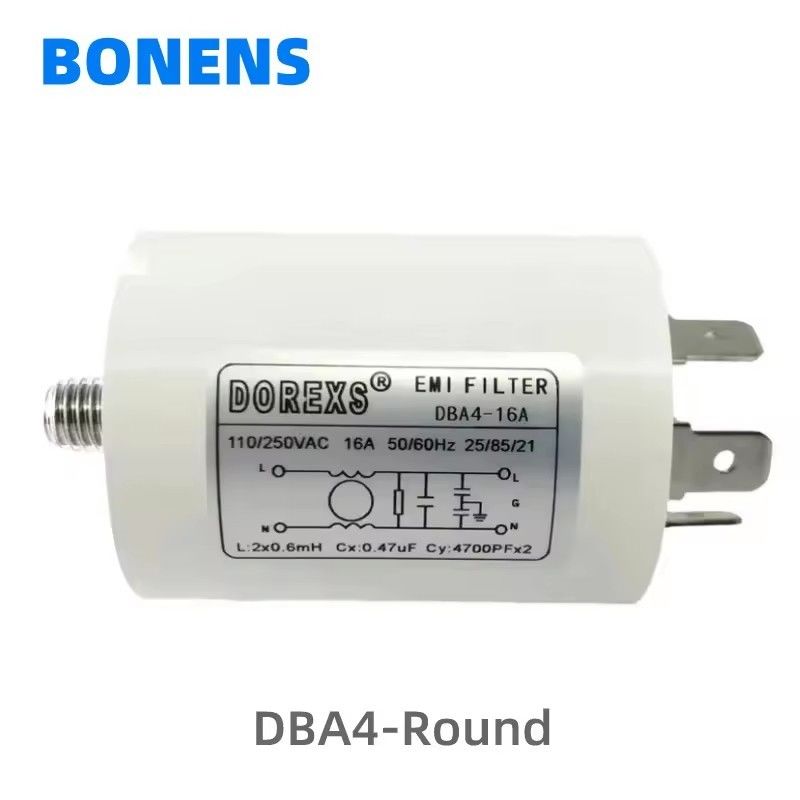

DBA4-Round Single-Phase Universal Series Power Filter

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance



PRODUCT INTRODUCTION

DBA4-round series products feature small size and low price; 3 connection methods of wire/brass bolt/standard 6.3*0.8 shortcut socket are available for you to choose, which are easy to use and quick to install. It has relatively good performance in solving high-frequency interference from 1Mhz-30MHZ. They have been widely used in various household appliances, testing equipment, medical equipment, fire protection systems, laser cutting equipment, urban security monitoring systems, stage lighting equipment, power grid control systems, LED lighting drive systems, industrial automation robots and other complex electromagnetic interference Environmental equipment ensures the normal and safe operation of these equipment, effectively reduces equipment failure rates, reduces the interference of high-frequency signals to peripheral equipment and power grids, and protects your EMC conducted radiation testing.

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

PRODUCT FEATURES

Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
Rated current: 12A 16A
Universal series filters with favorable price and low cost
Has good suppression effect on common mode and differential mode interference

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

ELECTRICAL CHARACTERISTICS.

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

Rated voltage 115/250VAC
Rated frequency 50/60Hz
Test power supply 1500VDC (line/line)
Test power supply 2150VAC (line/ground)
Insulation resistance >50MΩ@500VDC
climate category 25/085/21

PRODUCT MODEL

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

model Rated current leakage current Connection method Safety certification Remark
enter output
DBA4-12A 12A <0.5mA insert insert CE,ROHS Support parameters can be customized
DBA4-16A 16A <0.5mA insert insert

PRODUCT SIZE

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

INSERTION LOSS

————Common Mode ----------Differential Mode

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

Product internal circuit diagram

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

PRODUCTION PACKAGING

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

PRODUCT PHOTOS

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

PRODUCT CATALOG

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

MANUFACTURING

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

EXHIBITION

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

AUTHENTICATION

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

COMPANY PROFILE

Sichuan Qixing Electronics Co., Ltd. is a professional company engaged in the development, production, and sales of potentiometer, resistor, filter, potentiometer knob, band switch, and capacitor products. We were established in 2005 and have many years of production experience. Our company headquarters is located in Wenjiang District, Chengdu City, Sichuan Province, China.

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

CUSTOMIZATION PROCESS

DBA4-Round single phase emi filter 220v 12a 16aManufacturer High Performance EMI RFI Power Line Filter for Household Appliance

FAQ

1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
