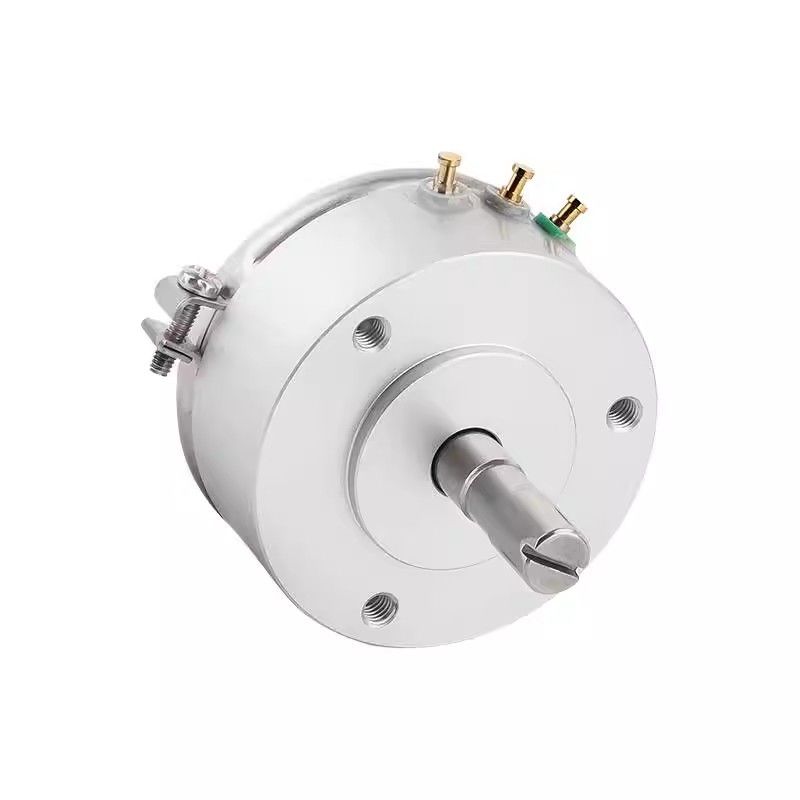

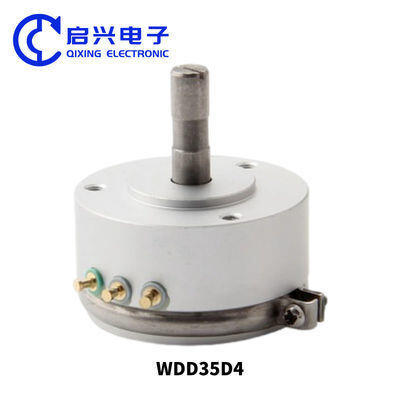

WDD35D-4 potentiometer is a precision conductive plastic angular displacement sensor

Mechanical Specifications

1. Mechanical Angle: 360° continuous rotation.
2. Starting Torque: ≤1×10^-4 N·M.
3. Bearings: Utilizes two sets of ball bearings for smooth rotation.
4. Shaft: Made of stainless steel for corrosion and wear resistance.
5. Housing: Aluminum alloy with oxidized surface treatment (silver color) for aesthetics and durability.

Performance Specifications

1. Resistance Values: Available in multiple resistance values such as 1K, 2K, 3K, 5K, and 10K.
2. Resistance Tolerance: ±15%.
3. Linearity: Offered with precision levels of 1%, 0.5%, 0.3%, 0.2%, and 0.1%.
4. Electrical Angle: 345°±2°.
5. Rated Power Consumption: 2W (at 70°C).
6. Temperature Coefficient: 400ppm/°C.
7. Insulation Resistance: ≥1000MΩ (500V D.C.).
8. Dielectric Strength: 1000V (AC RMS) for 1 minute.
9. Smoothness: ±0.10% (some sources indicate ≤0.05%).

Environmental Specifications

1. Mechanical Lifespan: Up to 50,000,000 rotations for long-term stable operation.
2. Temperature Range: -55°C to 125°C, suitable for various harsh environments.
3. Vibration: 15g @ 2000Hz for good vibration resistance.
4. Shock: 50g 11mS to withstand certain impact loads.

Applications

Due to its high precision, long lifespan, smoothness, and resolution, the WDD35D-4 potentiometer is widely used in automatic control systems, servo systems, and feedback systems in industrial automation, precision instrumentation, electric actuators, textile, injection molding, CNC machine tools, medical equipment, automobiles, trains, airplanes, ships, missiles, and other fields.

Product size

Specification parameters

Usage Notes

1. When installing the potentiometer, ensure that the axis remains in a straight line to prevent bending or deformation.
2. Protect the potentiometer from water droplets, steam, solvents, and corrosive gases.
3. External wiring should be soldered at the waist groove of the lead-out terminal. Use an electric soldering iron no larger than 45W, and the soldering time should be less than 5 seconds.
4. When applying external voltage to the potentiometer, ensure it remains within the rated power consumption range to avoid overload.
