25W 50W 100W 300W 500W 5% Rotary Variable Resistor

Product Details

Place of Origin: Sichuan, China

Brand Name: BONENS

Model Number: DBI

Payment & Shipping Terms

Packaging Details: Carton packaging

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5% Rotary Variable Resistor, 500W Rotary Variable Resistor, 25W Rotary Variable Resistor


Terminal Resistance:	≤0.2%or1Ω	Insulation Resistance:	≥100mΩ（500Vdc）
Dimensions:	6mm X 9mm	Temperature Range:	-55℃~350℃
Rated Power:	25W~500W	Resistance Error Error:	±10%
Packaging Type:	Paper Package	Operating Temperature:	-55°~+400°
Mounting Type:	Through Hole	Termination Style:	Axial
Temperature Coefficient:	±100ppm/°C	Package/Case:	6mm Round
Head Mechanical Itinerary:	300°±1 Rotate Smoothly	Power Rating:	0.25W
Dampness:	40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ

Terminal Resistance:	≤0.2%or1Ω
Insulation Resistance:	≥100mΩ（500Vdc）
Dimensions:	6mm X 9mm
Temperature Range:	-55℃~350℃
Rated Power:	25W~500W
Resistance Error Error:	±10%
Packaging Type:	Paper Package
Operating Temperature:	-55°~+400°
Mounting Type:	Through Hole
Termination Style:	Axial
Temperature Coefficient:	±100ppm/°C
Package/Case:	6mm Round
Head Mechanical Itinerary:	300°±1 Rotate Smoothly
Power Rating:	0.25W
Dampness:	40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ

25W 50W 100W 300W 500W 5% Rotary Variable Resistor

Product descriptions from the supplier

Product Description

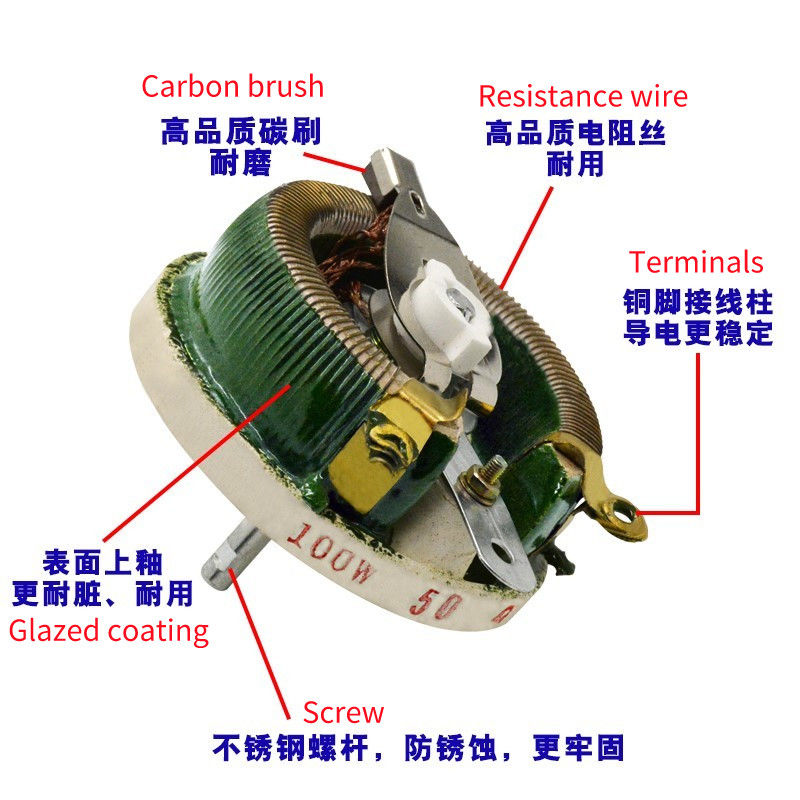

The rheostat uses the constantan wire or nichrome wire as the elements of resistance to circle on the framework of round chinaware . Except of the sliding surface , all the elements of resistance are covered the thermostatic enamel dope and agglutinate on the bottom plate of chinaware. In addition , the center of the chin aw are is set rotation axis which can drive the brush holder and electric brush to slide. so as to change the resistance value . The rheostat is classified to unlock one and protecting ones which is also the metal protecting box of rheostat. In addition , it is set with the adjust hand wheel.

Dimension & Size

Model No.	A	B	F	D	d
BC1-25W	44	43	50	6	2
BC1-50W	66	43	75	6	2
BC1-100W	84	43	95	6	4
BC1-150W	106	48	120	6	4
BC1-300W	170	74	180	10	4
BC1-500W	210	74	130	10	4

25W 50W 100W 300W 500W 5% Rotary Variable Resistor 1

Rated power(W)	A	B	F
BC1-25W	44	43	50
BC1-50W	66	43	75
BC1-100W	84	43	95
BC1-150W	106	48	120
BC1-300W	170	74	180
BC1-500W	210	60	230
BC1-50W/2	80	100	75
BC1-100W/2	97	112	95
BC1-150W/2	135	120	120
BC1-300W/2	175	165	180
BC1-500W/2	220	165	230
BC1-150W/3	170	220	120
BC1-300W/3	175	275	180
BC1-500W/3	220	275	230

25W 50W 100W 300W 500W 5% Rotary Variable Resistor 2

Note : The Power Color & Dimension can be especially customized by customers .

1000W-3000W( Multi- Unit type )

1. Max power for single rheostat is 500W

2. 1000W ( 2 rheostats parallel )

3. 1500W ( 3 rheostats parallel )

4. 2000W ( 4 rheostats parallel)

5. 3000W ( 6 rheostats parallel )

25W 50W 100W 300W 500W 5% Rotary Variable Resistor 3
