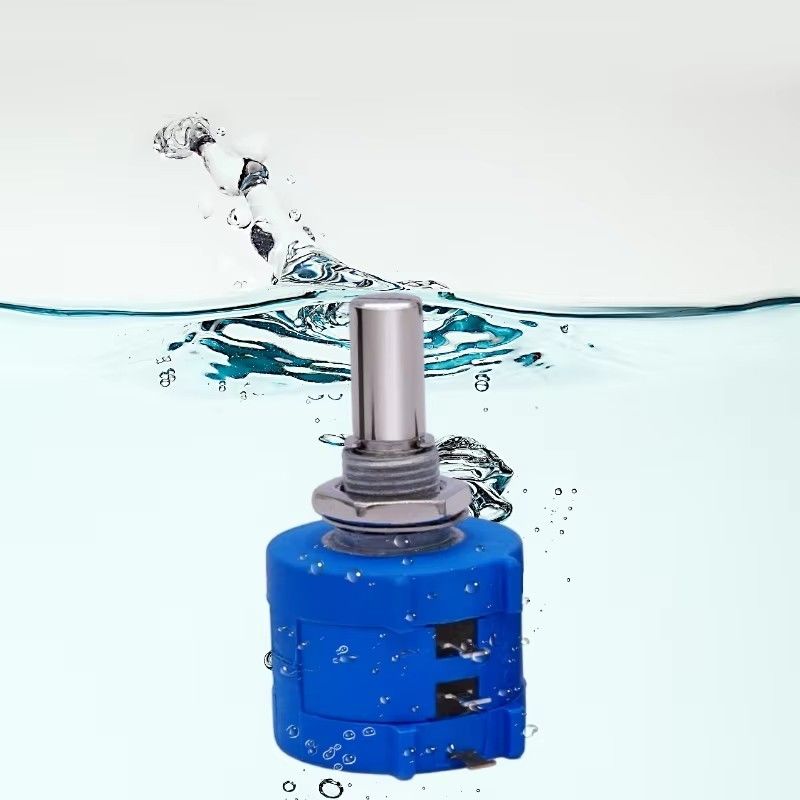

BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
Basic Properties
Country Of Origin
Sichuan, China
Brand Name
BONENS
Product Model
3590S
Trading Properties
MOQ
50
Packing
Carton packaging
Period For Dispatch
5-8 working days
Payment Method
L/C, D/A, T/T, Western Union, MoneyGram
Supply Capacity
Delivery period ≤5000 14 days
Product Details
Highlight:
Ip67 Rating Waterproof Potentiometer
,10k Precision Potentiometer
,BONENS Precision Potentiometer
Waterproof Grade:
IP67
Product Description
Detailed Specifications & Features
3590 precision multi turn wire wound potentiometer 10K ohm
PRODUCT PACKAGING
25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box
25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box
PRODUCT DESCRIPTION
Potentiometer type:Multi turn potentiometer
Potentiometer material:wire wound
model:3590S-2-103L
Resistance: 10K Ω
Permissible resistance range: ± 5%
Electrical rotation angle: 3600 ° ± 10 °(10 turn)
Rated power: 2W (70 ℃)
Temperature range: -55 ℃~+125 ℃
Potentiometer material:wire wound
model:3590S-2-103L
Resistance: 10K Ω
Permissible resistance range: ± 5%
Electrical rotation angle: 3600 ° ± 10 °(10 turn)
Rated power: 2W (70 ℃)
Temperature range: -55 ℃~+125 ℃
3590S wirewound potentiometer
Total mechanical stroke: 3600 ° ± 10 °(10 turn)
Shaft type:Circular shaft D shaft
shaft material: metal shaft
Shaft diameter: 6.3mm
shaft length:20mm
Resistance value variation mode: linear
Packaging: 25 pieces/board, 50 pieces/box,12 boxes/large box
Accessories: 3590S potentiometer matching nut and washer
Shaft type:Circular shaft D shaft
shaft material: metal shaft
Shaft diameter: 6.3mm
shaft length:20mm
Resistance value variation mode: linear
Packaging: 25 pieces/board, 50 pieces/box,12 boxes/large box
Accessories: 3590S potentiometer matching nut and washer
Product parameters
|
Characteristics
|
Range of nominal resistance
|
10K
|
||||
|
Resistance tolerance
|
±5%
|
|||||
|
Terminal resistance
|
≤2%R or 5
|
|||||
|
Peak noise
|
≤100
|
|||||
|
Linear accuracy
|
±0.25%
|
|||||
|
Electrical angle
|
3600°±10°
|
|||||
|
Insulation resistance
|
≥ 200M
|
|||||
|
Withstand voltage
|
500V (DC or AC peak value)
|
|||||
|
Characteristics |
Rated power
|
2W (70°C)
|
||||
|
Temperature range
|
-55°C~ 125°C
|
|||||
|
TCR
|
±100x10-6/°C
|
|||||
|
Temperature shock
|
R≤±3%R
|
|||||
|
Collision (390m/S2, 4000 times)
|
R≤±1%R
|
|||||
|
Moisture proof (GJB306A-96-Method106, not for 7a,7b inapplicability)
|
R≤±3%R, Insulation Resistance≥100M
|
|||||
|
Vibration (10-500HZ, 0.75mm, 6h)
|
R≤±1%R, Electrical break≤100S
|
|||||
|
Climate category(IEC68-2-2)
|
R≤±3%R,Insulation Resistance≥100M, Starting Torque≤20mN.m
|
|||||
|
Operation at low temperature(-55°C, 4h)
|
R≤±3%R,Starting Torque≤20mN.m
|
|||||
|
Rotational life(10000cscles)
|
R≤±3%R,peak noise≤500,Starting Torque≤20mN.m
|
|||||
|
Electrical endurance (70°C, 2W, 1000h)
|
R≤±3%R
|
|||||
|
Steady damp heat (IEC68-2-3, Ca, 96h)
|
R≤±3%R, Insulation Resistance≥100M, Starting Torque≤20mN.m
|
|||||
|
Characteristics |
Total mechanical travel
|
3600°±10°
|
||||
|
Rotational torque
|
2~10mN.m
|
|||||
|
Stopper torque
|
≥300mN.m
|
|||||
Product size
