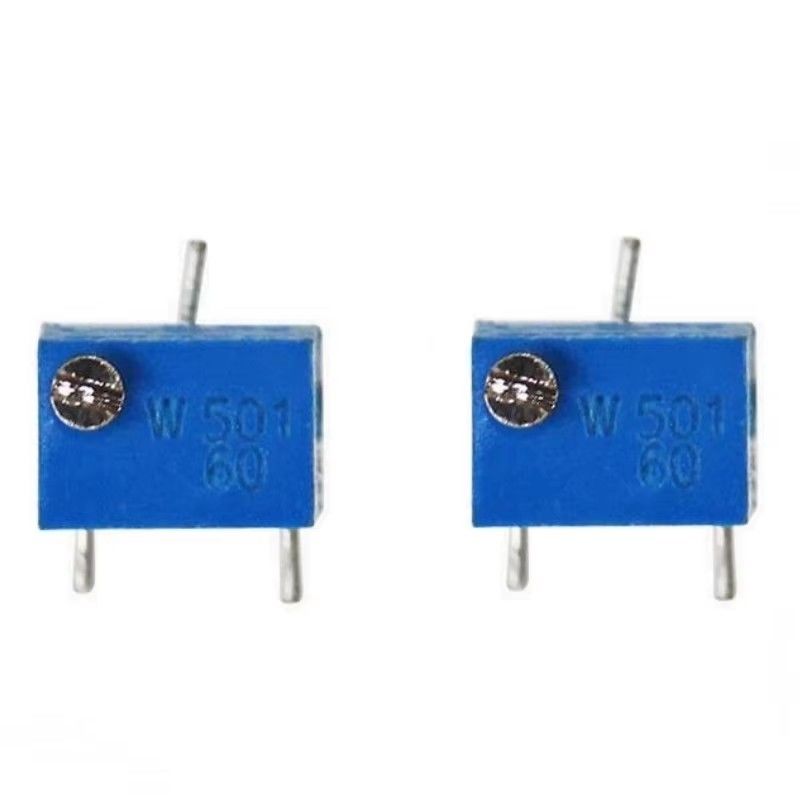

BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer
  • BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer

BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer

Place of Origin Sichuan, China
Brand Name BONENS
Model Number 3269P
Product Details
Range Of Nominal Resistance:
10Ω~5M
Resistance Tolerance:
±10% ±5% (customization)
Rated Power:
0.25W ( 200V Max)
Temperature Range:
-55°C~+125°C
Total Mechanical Travel:
12±2 Cycles
Starting Torque:
≤25mN.m
Highlight:

3269 SMD Variable Resistor

,

BONENS Series 3269 SMD Variable Resistor

,

BONENS Series 3269 SMD Resistor

Payment & Shipping Terms
Minimum Order Quantity
50
Price
$0.25-$0.4
Packaging Details
Carton packaging
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability
1000/7 days, 5000/10 days 10000/14 days
Product Description
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 0
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 1
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 2
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 3
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 4
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 5
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 6
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 7
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 8
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 9
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 10

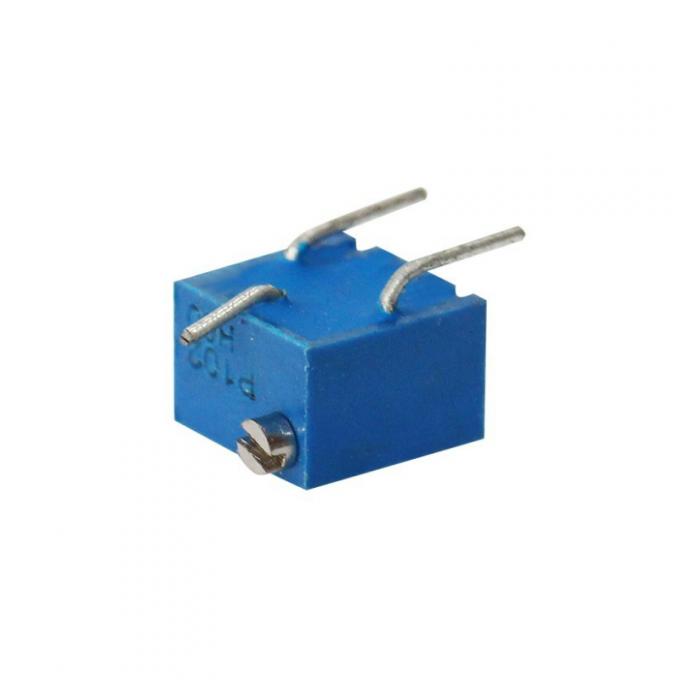

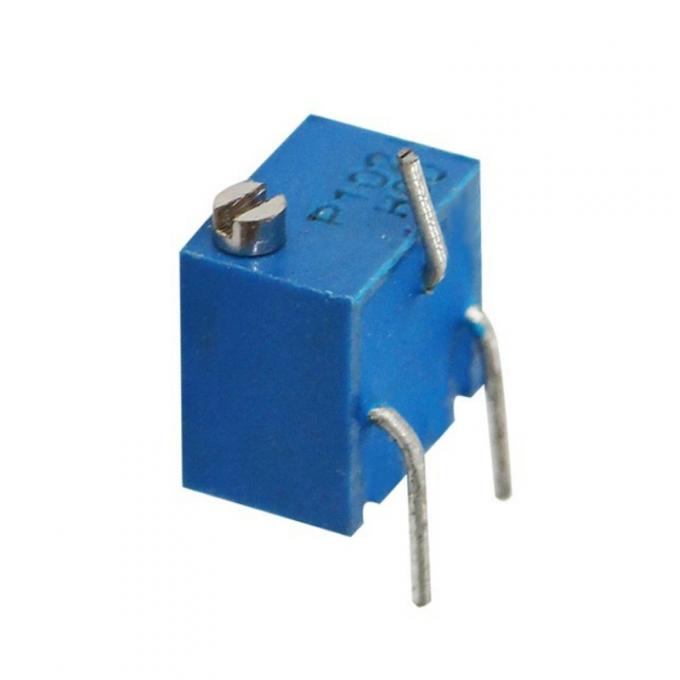

3269P variable resistor potentiometer
The 3269 series potentiometer is a type of potentiometer. It is usually composed of a resistive body and a rotating or sliding
system, that is, a moving contact moves on the resistive body to obtain a partial voltage output.
The function of the potentiometer is to adjust the voltage (including DC voltage and signal voltage) and the magnitude of the
current.
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 11

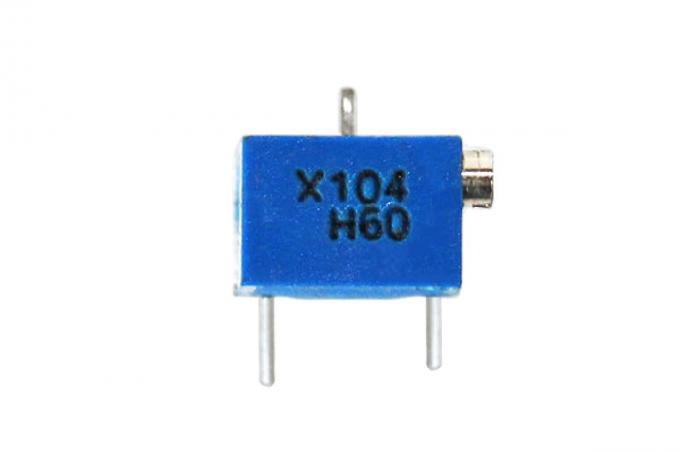

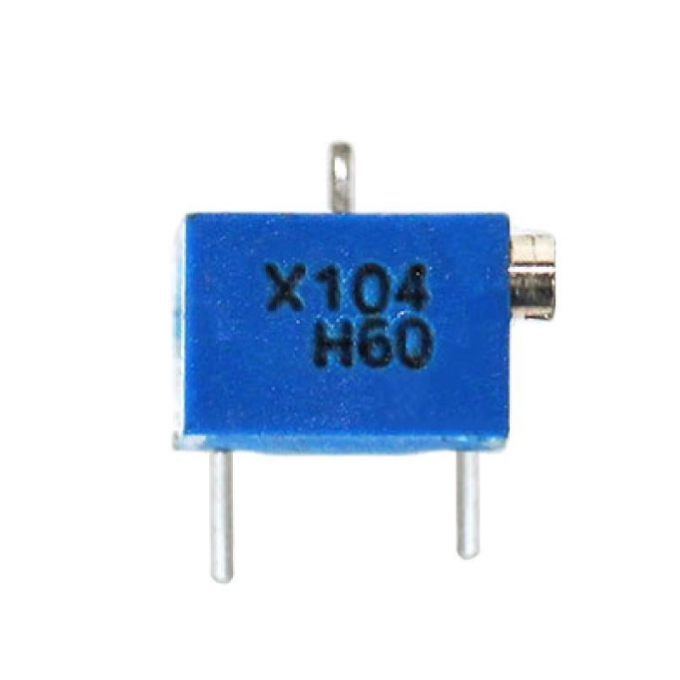

3269X variable resistor potentiometer

3269 potentiometers are mainly used in instruments, meters, post and telecommunications, power equipment, railway signals,aviation, aerospace and other fields
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 3

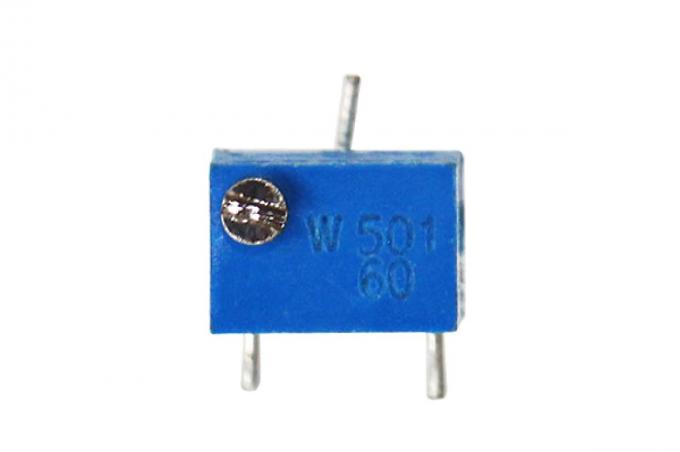

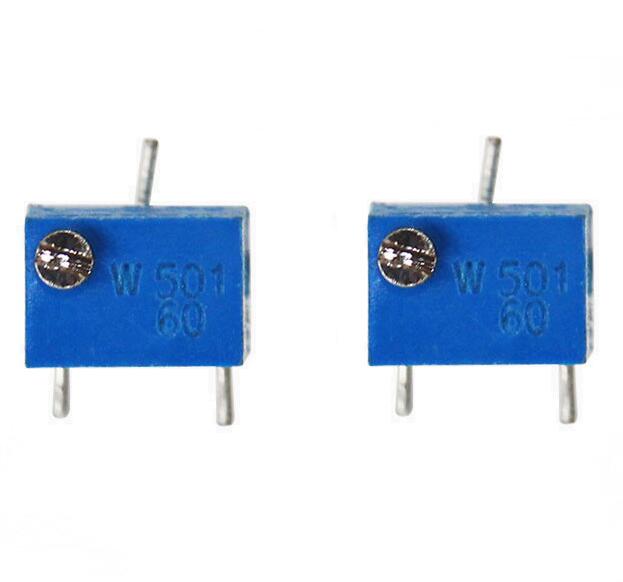

3269W variable resistor potentiometer

Stable, infinite resolution cermet element
Vertical and horizontal adjust styles
Compatible with surface mount manufacturing processes
RoHS compliant
Product parameters




lectrical Characteristics
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10% ±5% (customization)
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Withstand voltage
600V (DC or AC peak value)
Effective electrical travel
12±2 cycles






Environment Characteristics
Rated power
0.25W ( 200V max)
Temperature range
-55°C~+125°C
Temperature Coefficient
±250, ±100ppm/°C
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles)
ΔR≤±2%R,
ΔUab/Uac≤±1%R
Climate category (IEC68-2-2)
ΔR≤± (3%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (0.5W, 1000h)
ΔR≤± (3%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)
ΔR≤± (3%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤± (3%R+0.1Ω), Insulation Resistance≥100MΩ
Physical Characteristics
Total mechanical travel
12±2 cycles
Starting torque
≤25mN.m

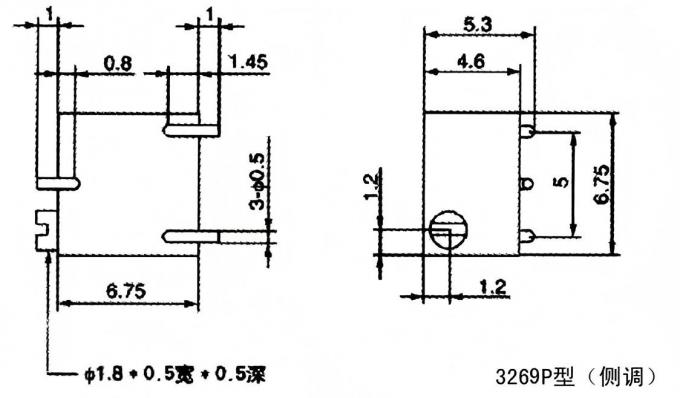

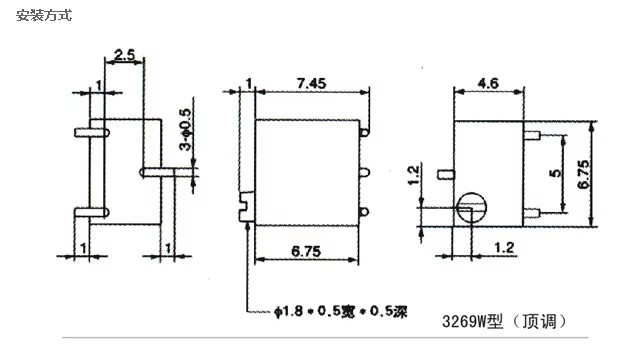

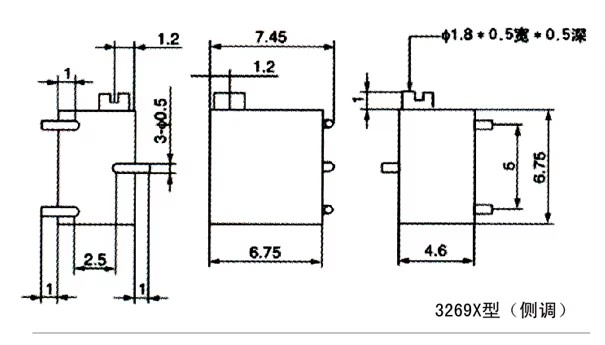

Product size
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 13
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 14
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 15
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 16
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 17

BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 18
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 19
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 20
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 21
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 22
BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer 23


A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

Q5: How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
