Product Details
Place of Origin: Sichuan, China
Brand Name: BONENS

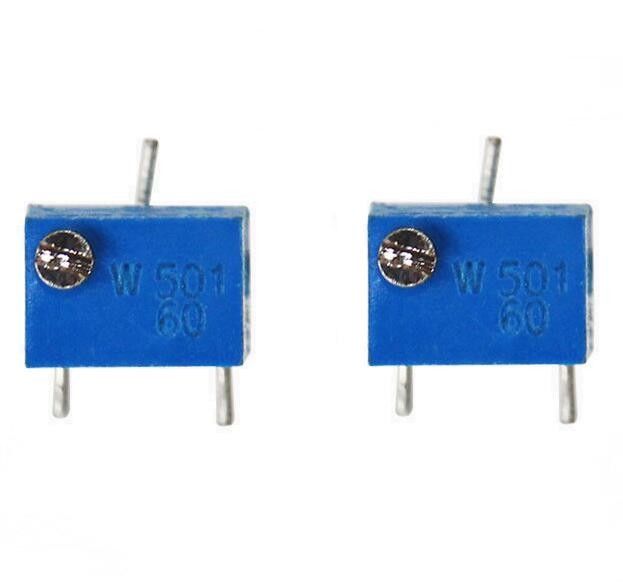

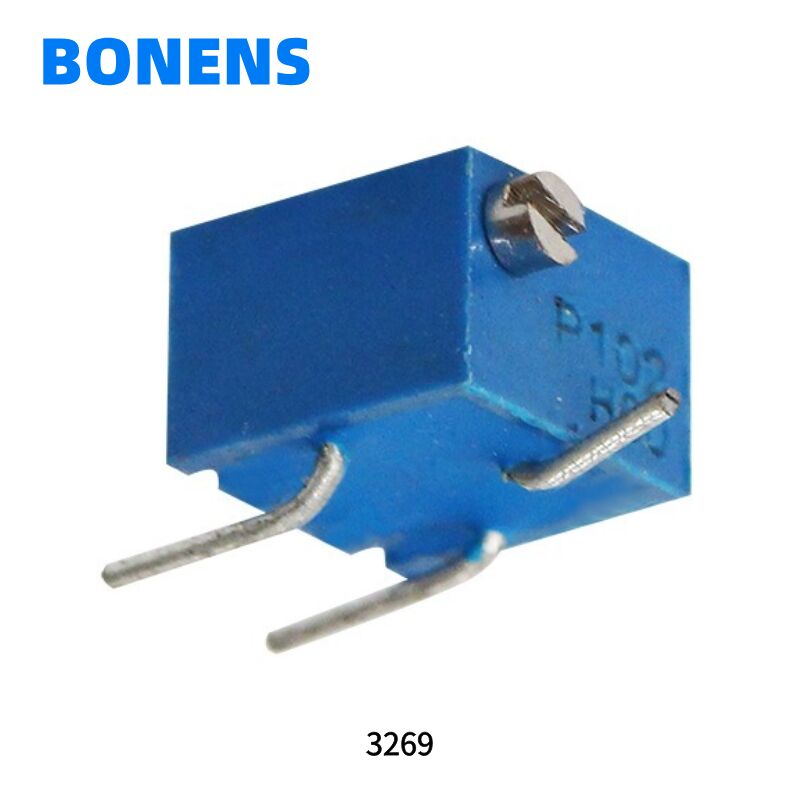

Model Number: 3269P
Payment & Shipping Terms
Minimum Order Quantity: 50
Price: $0.25-$0.4
Packaging Details: Carton packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 1000/7 days, 5000/10 days 10000/14 days
Range Of Nominal Resistance: |
10Ω~5M |
Resistance Tolerance: |
±10% ±5% (customization) |
Rated Power: |
0.25W ( 200V Max) |
Temperature Range: |
-55°C~+125°C |
Total Mechanical Travel: |
12±2 Cycles |
Starting Torque: |
≤25mN.m |
Range Of Nominal Resistance: |
10Ω~5M |
Resistance Tolerance: |
±10% ±5% (customization) |
Rated Power: |
0.25W ( 200V Max) |
Temperature Range: |
-55°C~+125°C |
Total Mechanical Travel: |
12±2 Cycles |
Starting Torque: |
≤25mN.m |
|
|
Range of nominal resistance
|
10Ω~5MΩ
|
|
Resistance tolerance
|
±10% ±5% (customization)
|
|
|
Terminal resistance
|
≤±1%R or 2Ω
|
|
|
Contact resistance variation (CRV)
|
≤±1%R or 3Ω
|
|
|
Insulation resistance
|
≥ 1GΩ (100V AC)
|
|
|
Withstand voltage
|
600V (DC or AC peak value)
|
|
|
Effective electrical travel
|
12±2 cycles
|
|
|
Environment Characteristics
|
Rated power
|
0.25W ( 200V max)
|
|
Temperature range
|
-55°C~+125°C
|
|
|
Temperature Coefficient
|
±250, ±100ppm/°C
|
|
|
Collision (390m/S2, 4000 times)
|
ΔR≤±1%R
|
|
|
Vibration (10-500HZ, 0.75mm, 6h)
|
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
|
|
|
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles) |
ΔR≤±2%R,
ΔUab/Uac≤±1%R |
|
|
Climate category (IEC68-2-2)
|
ΔR≤± (3%R+0.1Ω),Insulation Resistance≥100MΩ
|
|
|
Electrical endurance (0.5W, 1000h)
|
ΔR≤± (3%R+0.1Ω),CRV≤±3%R or 5Ω
|
|
|
Mechanical endurance (200 cycles)
|
ΔR≤± (3%R+0.5Ω), CRV≤±3%R or 5Ω
|
|
|
Steady damp heat (IEC68-2-3, Ca, 96h)
|
ΔR≤± (3%R+0.1Ω), Insulation Resistance≥100MΩ
|
|
|
Physical Characteristics
|
Total mechanical travel
|
12±2 cycles
|
|
Starting torque
|
≤25mN.m
|
