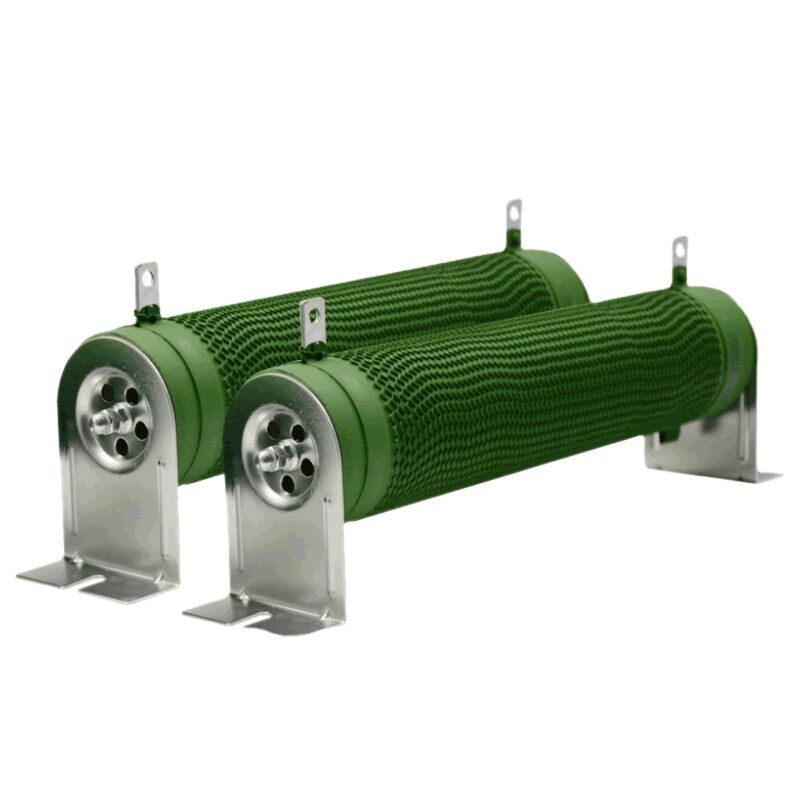

6000W High-power Ceramic Wirewound Braking Resistor with Variable Resistance
Basic Properties
Country Of Origin
Sichuan, China
Brand Name
B0NENS
Product Model
RX20
Trading Properties
MOQ
1
Product Details
Highlight:
6000W Wirewound Resistor
,Ceramic Composition Braking Resistor
,Variable Resistance High-power Resistor
Resistance Tolerance:
±5%
Temperature Coefficient:
±200PPM/°C
Resistance Range:
0R22~43K
Rated Power:
10W~20000W
Operating Temperature:
-55°C ~ +275°C
Mounting Type:
Through Hole
Lead Length:
20mm
Case Size:
7.5mm X 10mm
Material:
Wirewound
Device Type:
RX20 Wirewound Resistor
Power 40w Dimensions:
20*90mm
Power 50w Dimensions:
28*90mm
Power 80w Dimensions:
28*140mm
Power 200w Dimensions:
28*267mm
Power 300w Dimensions:
40*265mm
Product Description
Detailed Specifications & Features

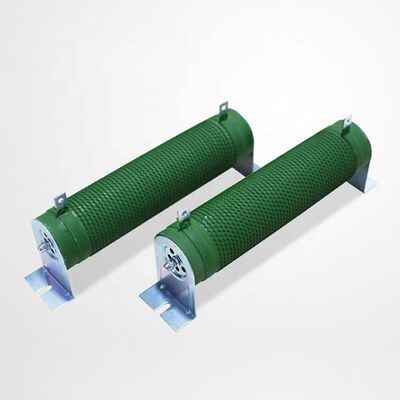

High-power Ceramic Resistors 6000W Wirewound Braking Resistor
Product Description
The RX20 wirewound resistor is a premium device manufactured by Yageo, delivering highly reliable performance for diverse applications. This component features a compact 7.5mm x 10mm case size and is designed for straightforward circuit board soldering with 20mm lead length. Utilizing through-hole mounting technology, the RX20 resistor ensures easy installation and maintenance. With its superior performance characteristics and robust construction, the RX20 device represents an excellent choice for demanding electronic applications.
Product Features
Specification Parameters
| Parameter | Description |
|---|---|
| Device | RX20 Wirewound Resistor |
| Material | Wirewound |
| Operating Temperature | -55°C ~ +275°C |
| Resistance Tolerance | ±5% |
| Temperature Coefficient | ±200PPM/°C |
| Resistance | 0R22~43K |
| Rated Power | 10W~20000W |
Product Dimensions
| Power | Style | L1 (±2) | L2 (±2) | L3 (±2) | D (±2) | B | B1 | H (±3) | H1 |
|---|---|---|---|---|---|---|---|---|---|
| 40W | 20*90 | 90 | 127 | 103 | 20 | 4.3 | 20 | 24 | 47 |
| 50W | 28*90 | 90 | 143 | 115 | 28 | 6 | 28 | 32 | 66 |
| 80W | 28*140 | 140 | 193 | 165 | 28 | 6 | 28 | 32 | 66 |
| 100W | 28*167 | 167 | 220 | 192 | 28 | 6 | 28 | 32 | 66 |
| 150W | 28*215 | 215 | 268 | 240 | 28 | 6 | 28 | 32 | 66 |
| 200W | 28*267 | 267 | 320 | 292 | 28 | 6 | 28 | 32 | 66 |
| 300W | 40*265 | 265 | 309 | 284 | 40 | 9 | 40 | 40 | 82 |
| 400W | 40*282 | 282 | 326 | 302 | 40 | 9 | 40 | 40 | 85 |
| 500W | 40*330 | 330 | 370 | 349 | 40 | 9 | 40 | 40 | 85 |
| 600W | 50*330 | 330 | 370 | 347 | 50 | 7 | 50 | 41 | 97 |
| 800W | 60*330 | 330 | 379 | 344 | 60 | 8 | 60 | 58 | 119 |
| 1KW | 60*400 | 400 | 450 | 415 | 60 | 8 | 60 | 58 | 122 |
| 1.2KW | 60*430 | 430 | 480 | 452 | 60 | 8 | 60 | 58 | 122 |
| 1.5KW | 70*430 | 430 | 495 | 462 | 70 | 8 | 70 | 67 | 132 |
| 2.5KW | 80*430 | 430 | 490 | 455 | 80 | 8.5 | 80 | 70 | 150 |
| 3KW | 90*430 | 430 | 490 | 455 | 90 | 9 | 90 | 76 | 150 |
| 3.5KW | 100*430 | 430 | 510 | 473 | 100 | 9.5 | 100 | 75 | 157 |
