1000W Fixed Aluminum Shell Braking Resistor Resistance
Product Overview
High-performance wirewound resistors designed for industrial braking applications and power dissipation.
RX20 Wirewound Resistor
Coated with painted wire-wound resistors for insulation and high temperature resistance, featuring high power capacity, strong overload resistance, and high voltage withstand capability.
- Rated power: 10W~6KW
- Working voltage: <1.2kV
- Rated resistance: 0.1Ω~10KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift: ≤400ppm/°C
- Working temperature: -55°C~+275°C
- Application fields: simulated load, discharge equipment, industrial/automation industry

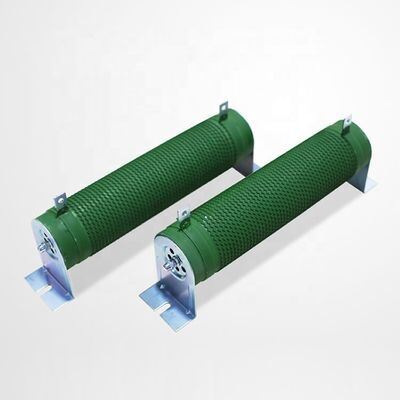

RXHG Corrugated Wirewound Resistor
Features vertical corrugation resistance wire for enhanced heat dissipation and reduced parasitic inductance, with insulation coating for high temperature applications.
- Rated power range: 10W~6000W
- Working voltage range: <1.2kV
- Rated resistance range: 0.1Ω~25KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+275°C
- Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking

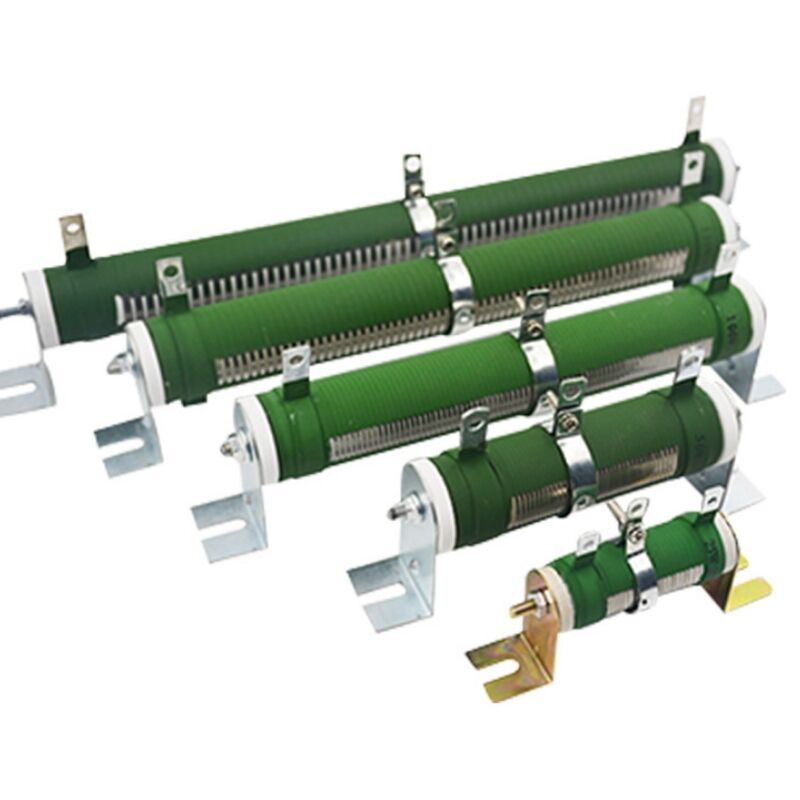

RX20-T Adjustable Resistor
Flat-wound resistance wire design for optimal heat dissipation and minimal parasitic inductance, with insulating high temperature resistant coating.
- Rated power: 50W~6000W
- Working voltage: <1.2kV
- Rated resistance: 1Ω~5KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+275°C
- Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking
RXG20 Glazed Resistor
Features moisture resistance, high insulation, strong overload capacity, excellent thermal stability and long service life.
- Rated power range: 8W~500W
- Operating voltage range: <1.5kV
- Rated resistance range: 0.1Ω~90KΩ
- Maximum withstand voltage: 3500V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Operating temperature range: -55°C~+375°C
- Application fields: large power supply, power equipment, electrical equipment, locomotives
RXG20-T Glazed Resistor
Adjustable glazed wirewound resistor offering moisture resistance, high insulation, strong overload capacity, thermal stability and extended service life.
- Rated power range: 8W~500W
- Working voltage range: <1.5kV
- Rated resistance range: 0.1Ω~90KΩ
- Maximum withstand voltage: 3500V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+375°C
- Application fields: large power supply, power equipment, electrical equipment, locomotive
Technical Specifications
| Rated power (W) |
D±2 |
L1±2 |
L2±5 |
L3±3 |
N±1 |
Φ±1 |
Reference weight (KG) |
Resistance accuracy |
Temperature Coefficient |
| 10W | 14 | 40 | / | / | 5 | 3 | 0.02 | ±5% | ±250PPm |
| 15W | 14 | 45 | / | / | 5 | 3 | 0.02 | | |
| 20W | 16 | 50 | 85 | 100 | 6 | 3 | 0.05 | | |
| 25W | 20 | 50 | 85 | 100 | 6 | 3 | 0.05 | | |
| 30W | 20 | 70 | 105 | 120 | 6 | 3 | 0.06 | | |
| 40W | 20 | 90 | 125 | 140 | 6 | 3 | 0.08 | | |
| 50W | 28 | 90 | 130 | 150 | 9 | 4 | 0.1 | | |
| 75W | 28 | 140 | 180 | 200 | 9 | 4 | 0.15 | | |
| 100W | 28 | 170 | 210 | 230 | 9 | 4 | 0.18 | | |
| 150W | 28 | 215 | 250 | 270 | 9 | 4 | 0.22 | | |
| 200W | 28 | 267 | 300 | 320 | 9 | 4 | 0.23 | | |
| 250W | 28 | 267 | 300 | 320 | 9 | 4 | 0.32 | | |
| 300W | 40 | 267 | 287 | 307 | 12 | 6 | 0.32 | | |
| 400W | 40 | 300 | 320 | 240 | 12 | 6 | 0.36 | | |
| 500W | 50 | 300 | 320 | 340 | 14 | 6 | 0.55 | | |
| 600W | 50 | 300 | 320 | 340 | 14 | 6 | 0.95 | | |
| 800W | 60 | 300 | 330 | 335 | 16 | 6 | 1 | | |
| 1000W | 70 | 300 | 330 | 335 | 16 | 6 | 1.2 | | |
| 1200W | 70 | 360 | 390 | 415 | 16 | 6 | 1.6 | | |
| 1500W | 70 | 420 | 450 | 470 | 16 | 6 | 2 | | |
| 2000W | 60 | 510 | 540 | 560 | 16 | 6 | 2.3 | | |
| 2500W | 70 | 510 | 540 | 560 | 16 | 6 | 2.7 | | |
| 3000W | 80 | 430 | 470 | 500 | 16 | 6 | 3 | | |
| 4000W | 100 | 400 | 440 | 465 | 16 | 7 | 3.5 | | |
| 5000W | 100 | 500 | 540 | 560 | 16 | 7 | 4.5 | | |
| 6000W | 100 | 600 | 640 | 660 | 16 | 7 | 5.8 | | |
| 8000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
| 9000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
| 10KW | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
