100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications
  • 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications
  • 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications
  • 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications
  • 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications
  • 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications
  • 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications

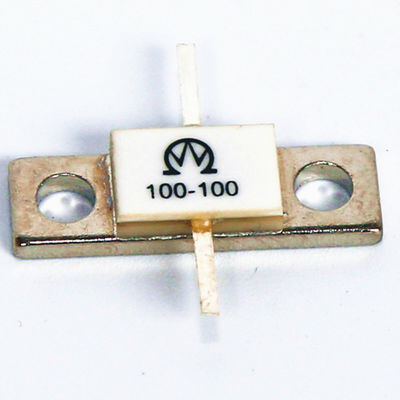

100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications

100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications

Place of Origin Sichuan, China
Brand Name Bonens
Model Number RIG-100W
Product Details
Resistance Range:
1Ω-500Ω
Resistance Tolerance:
±5%
Frequency Range:
0~2GHz
Standing Wave Ratio:
1.2-1.3
Temperature Coefficient:
±300*10-6/℃
Operating Temperature:
-55℃~+165℃
Withstand Voltage:
500V/1mm
Size:
20*6*2.7
Insulation Resistance:
≥ 1GΩ
Rated Power:
1~1200W (70°C)
Temperature Shock:
ΔR≤±5%R
Moisture Proof:
ΔR≤±5%R
Vibration Resistance:
ΔR≤±3%R, No Mechanical Damage
Terminal Strength:
10N,5S
Solderability:
240℃,3s
Highlight:

100W Flange Resistor

,

50ohm RF Resistor

,

±5% Tolerance High Power Resistor

Payment & Shipping Terms
Minimum Order Quantity
100
Product Description
100W 50ohm 100ohm Flange Resistor
Product Overview
High-power RF flange resistors designed for demanding industrial and telecommunications applications.
Product Images
100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 0 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 1 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 2 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 3 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 4 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 5 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 6 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 7 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 8 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 9
Power Range and Configurations
Available in power ratings from 100W to 1000W with resistance values from 10ohm to 50ohm. All RF flange resistors can be configured with either single or dual terminals to suit various application requirements.
Technical Drawings
100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 10 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 11 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 12 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 13 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 14 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 15 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 16 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 17
Technical Specifications
Electrical Characteristics
Range of nominal resistance 1 ~ 500Ω
Resistance tolerance ±5%
Frequency range 0 ~ 2GHz
Standing wave ratio 1.2 ~ 1.3
Insulation resistance ≥ 1GΩ
Withstand voltage 500V/1 mm (Substrate thickness)
Environmental Characteristics
Rated power 1 ~ 1200W (70°C)
Operating temperature range -55°C ~ +165°C
TCR (Temperature Coefficient of Resistance) ±300 × 10⁻⁶/°C
Temperature shock (-55°C/+125°C, 3 times) ΔR ≤ ±5%R
Moisture proof (GJB306A-96-Method106) ΔR ≤ ±5%R
Vibration (10-500Hz, 0.75mm, 6h) ΔR ≤ ±3%R, No mechanical damage
Low temperature test (-55°C, 24h) ΔR ≤ ±5%R
Load life (96 hours) ΔR ≤ ±5%
Collision resistance ΔR ≤ ±3%R
Physical Characteristics
Terminal strength (10N, 5S) No loose and fall off
Solderability (240℃, 3s) Tin layer covering area of 95%
Packaging & Delivery
100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 18 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 19 100W 50ohm Flange Resistor with ±5% Tolerance for High Power RF Applications 20
Contact Information
Contact Person: Gina
WhatsApp: 86-18010662198
Skype: Gina.zhou12
Email: Qixing_Gina@163.com
