1000W Fixed Aluminum Shell Braking Resistor High Power Resistance Device
High-performance wirewound resistors designed for demanding industrial applications with superior heat dissipation and reliability.
Product Overview
RX20 Wirewound Resistor
Coated with painted wire-wound resistors for insulation and high temperature resistance. Features high power capacity, strong overload resistance, and high voltage tolerance.
- Rated power: 10W~6KW
- Working voltage: <1.2kV
- Rated resistance: 0.1Ω~10KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift: ≤400ppm/°C
- Working temperature: -55°C~+275°C
- Application fields: simulated load, discharge equipment, industrial/automation industry

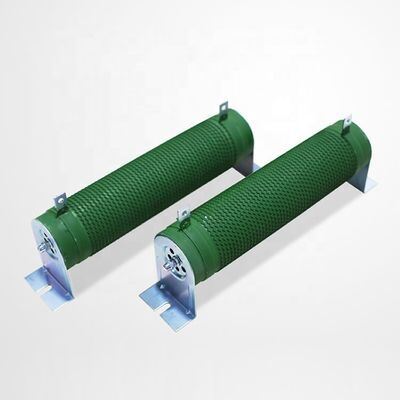

RXHG Corrugated Wirewound Resistor
Features vertical corrugation design for enhanced heat dissipation and reduced parasitic inductance. Surface coated with insulation and high temperature resistant coating.
- Rated power range: 10W~6000W
- Working voltage range: <1.2kV
- Rated resistance range: 0.1Ω~25KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+275°C
- Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking
RX20-T Adjustable Resistor
Flat-wound resistance wire design for optimal heat dissipation and reduced parasitic inductance. Coated with insulating high temperature resistant coating.
- Rated power: 50W~6000W
- Working voltage: <1.2kV
- Rated resistance: 1Ω~5KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+275°C
- Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking
RXG20 Glazed Resistor
Features moisture resistance, high insulation, strong overload capacity, excellent thermal stability and long service life.
- Rated power range: 8W~500W
- Operating voltage range: <1.5kV
- Rated resistance range: 0.1Ω~90KΩ
- Maximum withstand voltage: 3500V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Operating temperature range: -55°C~+375°C
- Application fields: large power supply, power equipment, electrical equipment, locomotives
RXG20-T Glazed Resistor
Adjustable glazed wirewound resistor with moisture resistance, high insulation, strong overload capacity, good thermal stability and long service life.
- Rated power range: 8W~500W
- Working voltage range: <1.5kV
- Rated resistance range: 0.1Ω~90KΩ
- Maximum withstand voltage: 3500V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+375°C
- Application fields: large power supply, power equipment, electrical equipment, locomotive
Technical Specifications
| Rated power(W) |
D±2 |
L1±2 |
L2±5 |
L3±3 |
N±1 |
Φ±1 |
Reference weight (KG) |
Resistance accuracy |
Temperature Coefficient |
| 10W | 14 | 40 | / | / | 5 | 3 | 0.02 | ±5% | ±250PPm |
| 15W | 14 | 45 | / | / | 5 | 3 | 0.02 |
| 20W | 16 | 50 | 85 | 100 | 6 | 3 | 0.05 |
| 25W | 20 | 50 | 85 | 100 | 6 | 3 | 0.05 |
| 30W | 20 | 70 | 105 | 120 | 6 | 3 | 0.06 |
| 40W | 20 | 90 | 125 | 140 | 6 | 3 | 0.08 |
| 50W | 28 | 90 | 130 | 150 | 9 | 4 | 0.1 |
| 75W | 28 | 140 | 180 | 200 | 9 | 4 | 0.15 |
| 100W | 28 | 170 | 210 | 230 | 9 | 4 | 0.18 |
| 150W | 28 | 215 | 250 | 270 | 9 | 4 | 0.22 |
| 200W | 28 | 267 | 300 | 320 | 9 | 4 | 0.23 |
| 250W | 28 | 267 | 300 | 320 | 9 | 4 | 0.32 |
| 300W | 40 | 267 | 287 | 307 | 12 | 6 | 0.32 |
| 400W | 40 | 300 | 320 | 240 | 12 | 6 | 0.36 |
| 500W | 50 | 300 | 320 | 340 | 14 | 6 | 0.55 |
| 600W | 50 | 300 | 320 | 340 | 14 | 6 | 0.95 |
| 800W | 60 | 300 | 330 | 335 | 16 | 6 | 1 |
| 1000W | 70 | 300 | 330 | 335 | 16 | 6 | 1.2 |
| 1200W | 70 | 360 | 390 | 415 | 16 | 6 | 1.6 |
| 1500W | 70 | 420 | 450 | 470 | 16 | 6 | 2 |
| 2000W | 60 | 510 | 540 | 560 | 16 | 6 | 2.3 |
| 2500W | 70 | 510 | 540 | 560 | 16 | 6 | 2.7 |
| 3000W | 80 | 430 | 470 | 500 | 16 | 6 | 3 |
| 4000W | 100 | 400 | 440 | 465 | 16 | 7 | 3.5 |
| 5000W | 100 | 500 | 540 | 560 | 16 | 7 | 4.5 |
| 6000W | 100 | 600 | 640 | 660 | 16 | 7 | 5.8 |
| 8000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 |
| 9000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 |
| 10KW | 150 | 600 | 690 | 740 | 25 | 15 | 18 |
Packaging & Delivery
Professional, environmentally friendly, convenient and efficient packaging services provided to ensure the safety of your goods.
Company Profile
Sichuan Qixing Electronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.
Our products under the "BONENS" brand have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.
We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, we win customers' high praise and faith!
Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.
Frequently Asked Questions
1. Are you a factory or trading company?
We are a factory, we can guarantee our price is first-hand. All products are characterized by high performance and competitive price.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Potentiometer, Resistor, EMI Filter, Knob, Switch
4. Why should you buy from us not from other suppliers?
Our company is established in 2005, which mainly develops and manufactures different types of potentiometer, AC DC noise filter, and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash; Language Spoken: English, Chinese
