400W Breaking 10ohm Aluminum Shell Resistor
Product Overview
High-performance wirewound resistors designed for demanding industrial applications with excellent power handling and thermal stability.
RX20 Wirewound Resistor
Painted wire-wound resistors with high-temperature insulation coating, featuring high power capacity, strong overload resistance, and excellent voltage withstand capability.
- Rated Power: 10W~6KW
- Working Voltage: <1.2kV
- Rated Resistance: 0.1Ω~10KΩ
- Maximum Withstand Voltage: 3000V
- Maximum Accuracy: 1%
- IP Rating: IP00
- Vibration: 0.5g
- Temperature Drift: ≤400ppm/°C
- Working Temperature: -55°C~+275°C
- Applications: Simulated load, discharge equipment, industrial/automation industry

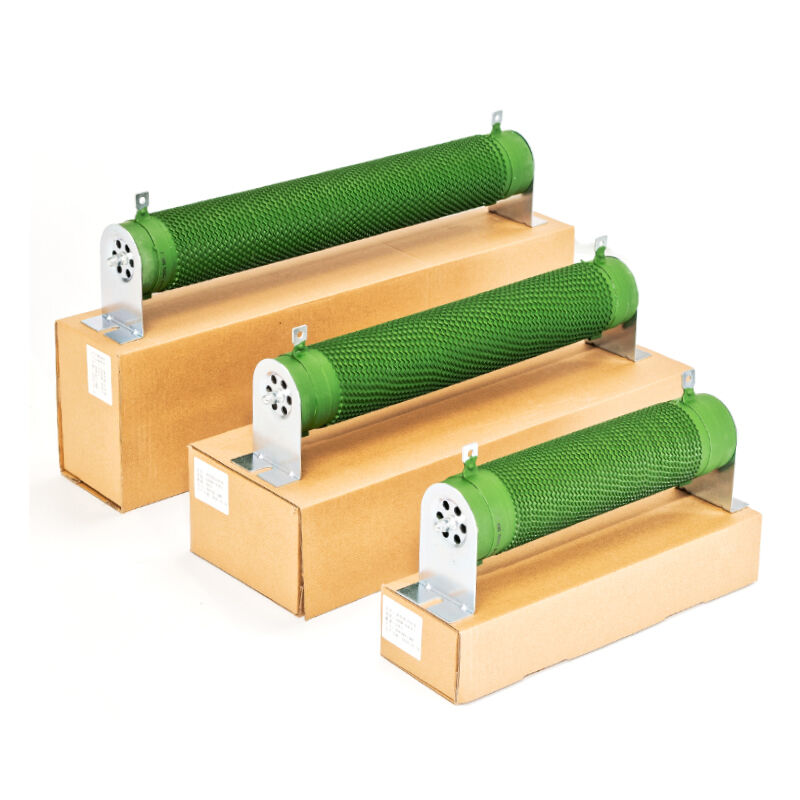

RXHG Corrugated Wirewound Resistor
Vertical corrugation design enhances heat dissipation and reduces parasitic inductance, with insulated high-temperature coating.
- Rated Power: 10W~6000W
- Working Voltage: <1.2kV
- Rated Resistance: 0.1Ω~25KΩ
- Maximum Withstand Voltage: 3000V
- Maximum Accuracy: 1%
- IP Rating: IP00
- Vibration: 0.5g
- Temperature Drift: ≤400ppm/°C
- Working Temperature: -55°C~+275°C
- Applications: Simulated load experiments, equipment discharge, automatic control, inverter energy consumption braking
RX20-T Adjustable Resistor
Flat-wound resistance wire design for optimal heat dissipation and reduced parasitic inductance.
- Rated Power: 50W~6000W
- Working Voltage: <1.2kV
- Rated Resistance: 1Ω~5KΩ
- Maximum Withstand Voltage: 3000V
- Maximum Accuracy: 1%
- IP Rating: IP00
- Vibration: 0.5g
- Temperature Drift: ≤400ppm/°C
- Working Temperature: -55°C~+275°C
- Applications: Simulated load experiments, equipment discharge, automatic control, inverter energy consumption braking
RXG20 Glazed Resistor
Moisture-resistant glazed wirewound resistor with high insulation, strong overload capacity, excellent thermal stability and long service life.
- Rated Power: 8W~500W
- Operating Voltage: <1.5kV
- Rated Resistance: 0.1Ω~90KΩ
- Maximum Withstand Voltage: 3500V
- Maximum Accuracy: 1%
- IP Rating: IP00
- Vibration: 0.5g
- Temperature Drift: ≤400ppm/°C
- Operating Temperature: -55°C~+375°C
- Applications: Large power supply, power equipment, electrical equipment, locomotives
RXG20-T Glazed Adjustable Resistor
Adjustable version of the glazed wirewound resistor with the same superior moisture resistance and thermal performance.
- Rated Power: 8W~500W
- Working Voltage: <1.5kV
- Rated Resistance: 0.1Ω~90KΩ
- Maximum Withstand Voltage: 3500V
- Maximum Accuracy: 1%
- IP Rating: IP00
- Vibration: 0.5g
- Temperature Drift: ≤400ppm/°C
- Working Temperature: -55°C~+375°C
- Applications: Large power supply, power equipment, electrical equipment, locomotive
Technical Specifications
| Rated Power (W) |
D±2 |
L1±2 |
L2±5 |
L3±3 |
N±1 |
Φ±1 |
Reference Weight (KG) |
Resistance Accuracy |
Temperature Coefficient |
| 10W | 14 | 40 | / | / | 5 | 3 | 0.02 | ±5% | ±250PPm |
| 15W | 14 | 45 | / | / | 5 | 3 | 0.02 | | |
| 20W | 16 | 50 | 85 | 100 | 6 | 3 | 0.05 | | |
| 25W | 20 | 50 | 85 | 100 | 6 | 3 | 0.05 | | |
| 30W | 20 | 70 | 105 | 120 | 6 | 3 | 0.06 | | |
| 40W | 20 | 90 | 125 | 140 | 6 | 3 | 0.08 | | |
| 50W | 28 | 90 | 130 | 150 | 9 | 4 | 0.1 | | |
| 75W | 28 | 140 | 180 | 200 | 9 | 4 | 0.15 | | |
| 100W | 28 | 170 | 210 | 230 | 9 | 4 | 0.18 | | |
| 150W | 28 | 215 | 250 | 270 | 9 | 4 | 0.22 | | |
| 200W | 28 | 267 | 300 | 320 | 9 | 4 | 0.23 | | |
| 250W | 28 | 267 | 300 | 320 | 9 | 4 | 0.32 | | |
| 300W | 40 | 267 | 287 | 307 | 12 | 6 | 0.32 | | |
| 400W | 40 | 300 | 320 | 240 | 12 | 6 | 0.36 | | |
| 500W | 50 | 300 | 320 | 340 | 14 | 6 | 0.55 | | |
| 600W | 50 | 300 | 320 | 340 | 14 | 6 | 0.95 | | |
| 800W | 60 | 300 | 330 | 335 | 16 | 6 | 1 | | |
| 1000W | 70 | 300 | 330 | 335 | 16 | 6 | 1.2 | | |
| 1200W | 70 | 360 | 390 | 415 | 16 | 6 | 1.6 | | |
| 1500W | 70 | 420 | 450 | 470 | 16 | 6 | 2 | | |
| 2000W | 60 | 510 | 540 | 560 | 16 | 6 | 2.3 | | |
| 2500W | 70 | 510 | 540 | 560 | 16 | 6 | 2.7 | | |
| 3000W | 80 | 430 | 470 | 500 | 16 | 6 | 3 | | |
| 4000W | 100 | 400 | 440 | 465 | 16 | 7 | 3.5 | | |
| 5000W | 100 | 500 | 540 | 560 | 16 | 7 | 4.5 | | |
| 6000W | 100 | 600 | 640 | 660 | 16 | 7 | 5.8 | | |
| 8000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
| 9000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
| 10KW | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
Packaging & Delivery
Professional, environmentally friendly, convenient and efficient packaging services to ensure the safety of your goods during transit.
Company Profile
Sichuan Qixing Electronics Co., Ltd is a specialized high-tech enterprise manufacturing trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG high power resistors.
Our "BONENS" brand products are widely applied in instruments, meters, post and telecommunications, electricity power, railway signals, aviation and aerospace industries.
We have attained ISO9001 certification and passed TUV and RoHS environmental standards. With excellent product quality, advanced facilities, abundant technology, strict management and good service, we have earned customers' high praise and trust.
Frequently Asked Questions
1. Are you a factory or trading company?
We are a factory, ensuring first-hand pricing. All products feature high performance and competitive pricing.
2. How can we guarantee quality?
Pre-production samples before mass production; Final inspection before shipment.
3. What can you buy from us?
Potentiometer, Resistor, EMI Filter, Knob, Switch
4. Why should you buy from us not from other suppliers?
Established in 2005, we specialize in developing and manufacturing various types of potentiometers, AC/DC noise filters, and ceramic power resistors, ensuring high quality, best services and competitive pricing.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash; Language Spoken: English, Chinese
