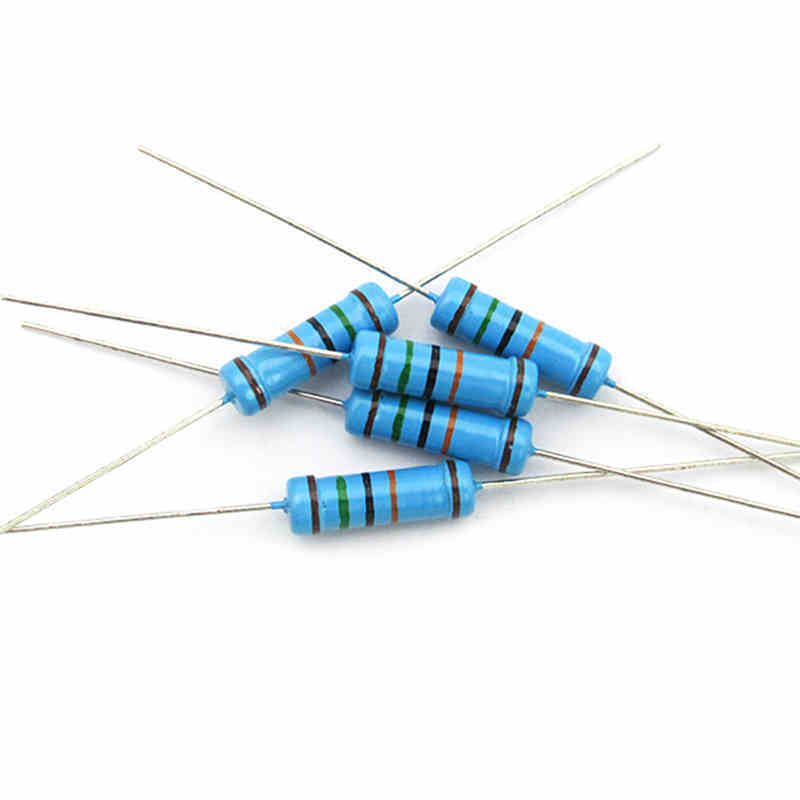

1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating

Place of Origin Sichuan, China
Brand Name BONENS
Model Number melat film resistor
Product Details
Description:
Metal Film Resistor
Resistance:
10ohm~1Mohm, 10ohm~1Mohm
Resistance Tolerance:
± 1%, ±1%
Packing:
50pcs / Box
Color:
Blue Yellow,grey,kahki
Brand:
BONENS
Media Available:
Technology:
Metal Film
Package Type:
Throught Hole
Tolerance:
± 1%
Temperature Coefficient:
15ppm,25ppm,50ppm,100ppm,250ppm
Highlight:

1% tolerance metal film resistor

,

color ring metal film resistor

,

high wattage metal film resistor

Payment & Shipping Terms
Minimum Order Quantity
1000
Product Description
Product Description
PICTURES :
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 0
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 2
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 4
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 6
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 8
DIMENSIONS:
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 10
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 12
Item
Performance
Operating Temp. Range
-55℃ ~ +155℃
Temperature Coefficient
10Ω:±100PPM/℃
<10Ω:±200PPM/℃
Short Time Overload
Within ±(0.5%+0.05Ω), no evidence of mechanical damage.
Insulation Resistance
104MΩ or more
Dielectric Withstanding Voltage
No evidence of flashover mechanical damage, arcing or insulation breakdown.
Pulse Overload
Within ±(0.5%+0.05Ω)
Terminal Strength
No evidence of mechanical damage.
Resistance to Soldering Heat
Within ±(0.5%+0.05Ω), no evidence of mechanical damage.
Solderability
Covered with new solder by 95% at least.
Resistance to Solvent
No deterioration of protective coating and markings.
Temperature Cycle
Within ±(1%+0.05Ω), no evidence of mechanical damage.
Load Life in Humidity
Within ±(1%+0.05Ω)
Load Life
Within ±(2%+0.05Ω)
1% Tolerance Metal Film Resistor with 10ohm to 1Mohm Resistance and 1/6W to 5W Power Rating 14
50pcs/box
