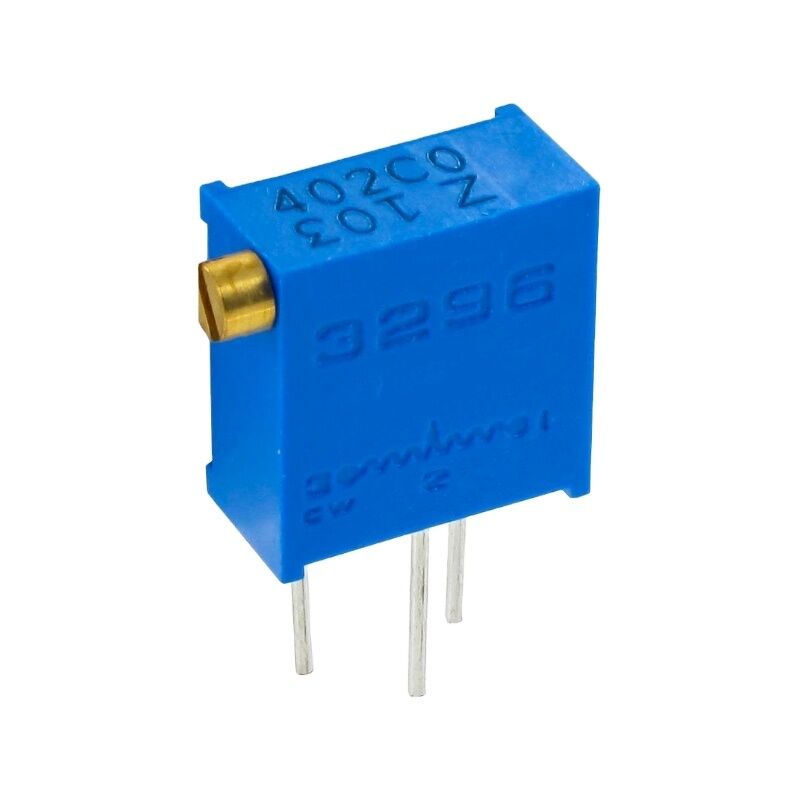

10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z
  • 10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z
  • 10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z
  • 10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z
  • 10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z
  • 10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z
  • 10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z

10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z

Place of Origin china
Brand Name Bonens
Model Number 3296Z
Product Details
Description:
Potentiomete
Resistance:
10Ω~5MΩ
Resistance Tolerance:
±10%
Product Name:
Potentiomete
Quality:
High Quanlity
Technology:
Cermet
Operating Temperature:
-55℃~+125℃
Max. Operating Voltage:
500V
Termination:
PC Pin
Advantage:
16 Years
Highlight:

10R multiturn potentiometer

,

3296Z variable resistor

,

Cermet trimmer potentiometer

Payment & Shipping Terms
Minimum Order Quantity
100
Price
$0.05-0.10
Product Description
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 0
Product Description
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 2
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 4
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 6
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 8

3296 multi-coil glass glaze adjustable potentiometer

3296 multi-coil glass glaze adjustable potentiometer, 3296 has 6 models, 3296W,3296Y,3296X,3296Z,3296P,3296X-A,3296W-B stance value is 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 250K 500K 1M 2M.
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 10
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 12
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 14
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 16
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 18
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 20
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 22
Specification
10 Ohm Cermet Technology Top Adjustment Trimmer Potentiometer Variable Resistor 3296Z 24




Electrical Characteristics
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10%
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Withstand voltage
640V (DC or AC peak value)
Effective electrical travel
≥70% of mechanical travel








Environment Characteristics
Rated power
0.25W ( 300V max)
Temperature range
-55°C~+125°C
TCR
±250×10-6/°C
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)
ΔR≤±2%R, ΔUab/Uac≤±2%R
Climate category (IEC68-2-2)
ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (0.5W, 1000h)
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ


Physical Characteristics
Total mechanical travel
12±2 lap
Starting torque
≤25mN.m
Standard package
50 pcs /tube(3296W,3296Y)
40 pcs/tube(3296X,3296Z,3296P
Product catalog
