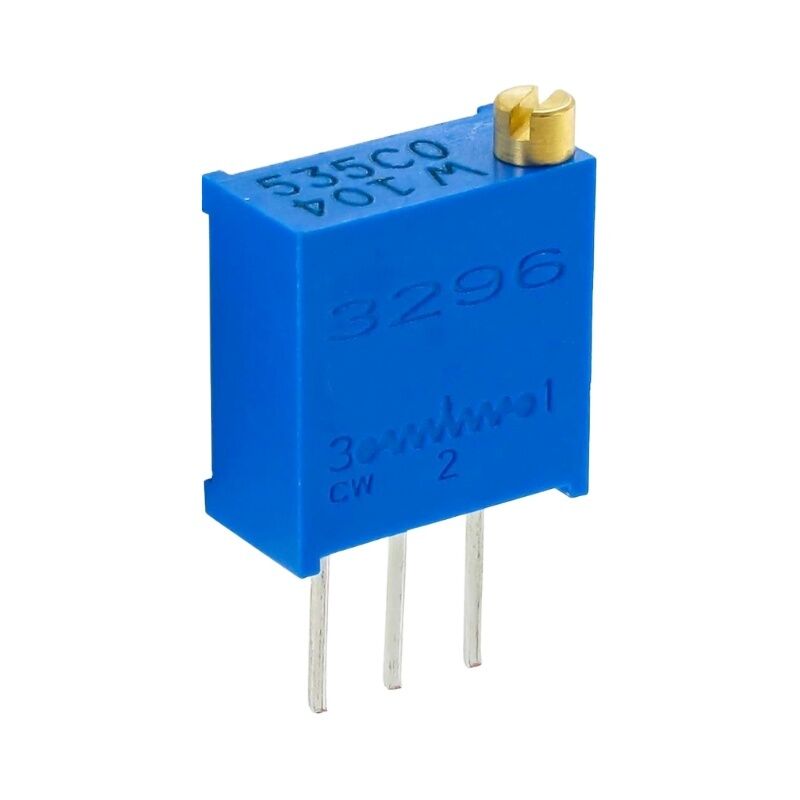

BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance
  • BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance
  • BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance
  • BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance
  • BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance
  • BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance
  • BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance

BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance

Place of Origin Sichuan, China
Brand Name Bonens
Model Number 3296W/3296Y/3296X/3296Z/3296P
Product Details
Package / Case:
See Details Page
Description:
Potentiometer For Bourns 3296, Metallic Glass Glaze Potentiometer 3296
Resistance:
10Ω~5MΩ
Resistance Tolerance:
±10%
Model::
Potentiometer For Bourns 3296
Viriation:
Linear
Technology:
Cermet
Tolerance:
±10%
Built In Switch:
None
Rotation:
360°
Resistive Material:
Cermet
Termination Style:
PC Pin
Actuator Type:
Slotted
Highlight:

10Ω~5MΩ Trimmer Potentiometer

,

Cermet Technology 3296W Potentiometer

,

±10% Tolerance Multi-Turn Potentiometer

Payment & Shipping Terms
Minimum Order Quantity
100
Product Description
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 0
Product Description
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 2
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 4
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 6
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 8

3296 multi-coil glass glaze adjustable potentiometer

3296 multi-coil glass glaze adjustable potentiometer, 3296 has 6 models, 3296W,3296Y,3296X,3296Z,3296P,3296X-A,3296W-B stance value is 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 250K 500K 1M 2M.
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 10
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 12
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 14
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 16
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 18
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 20
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 22
Specification
BONENS 3296W Multi-Turn Trimmer Potentiometer with 10Ω~5MΩ Range, Cermet Technology, ±10% Tolerance 24




Electrical Characteristics
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10%
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Withstand voltage
640V (DC or AC peak value)
Effective electrical travel
≥70% of mechanical travel








Environment Characteristics
Rated power
0.25W ( 300V max)
Temperature range
-55°C~+125°C
TCR
±250×10-6/°C
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)
ΔR≤±2%R, ΔUab/Uac≤±2%R
Climate category (IEC68-2-2)
ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (0.5W, 1000h)
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ


Physical Characteristics
Total mechanical travel
12±2 lap
Starting torque
≤25mN.m
Standard package
50 pcs /tube(3296W,3296Y)
40 pcs/tube(3296X,3296Z,3296P
