high power rf resistors
RF Resistor Dummy Load Resistor with -55℃~ +125℃ Operating Temperature 1.2~1.3 Standing Wave Ratio and Copper Nickel Plated Flange Mount
RIG RF resistor flange mount 100 ohms 50ohms dummy load resistorCustom designs available RF Attenuators and RF Resistors and RF Terminations. Product Description The following are the commonly used sizes, we can also customize the size according to your requirements Electrical Characteristics:Range of nominal resistance1 ~500Resistance tolerance5%Frequency range0~2GHzStanding wave ratio1.2~1.3Insulation resistance 1GWithstand voltage500V/1 mm (Substrate thickness
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Product Description RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR. BONENSSmall size, high power, stable and reliable performance, easy installation Electrical CharacteristicsRange of nominal resistance:1-500Resistance tolerance: 5%Frequency range: 0~2GHzStanding wave ratio: 1.2~1.3Insulation resistance: 1GWithstand voltage: 500V/1 mm (Substrate thickness) Physical CharacteristicsTerminal strength(10N,5S):
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
Aluminum Housing Resistor with Flange Mount RIG Series RIG RF Resistance, Microstrip Resistor, Microwave Attenuator BONENS high power RF resistor available in 1000W, 2000W, 800W, 500W, 250W, 100W, 60W, 40W, and 30W flange resistor models with 50 and 100 options. Features: Small size with high power capacity Stable and reliable performance Easy installation Electrical Characteristics Range of nominal resistance 1-500 Resistance tolerance 5% Frequency range 0~2GHz Standing
250 Watt 100 Ohms RF Termination Resistor with Copper Nickel Plated Heat Sink for 0~1.5GHZ Frequency and -55~+125℃ Temperature Range
Product Description 250 Watt 100 ohms RF Termination resistor Other commonly used ratings powerFor enquiries, please specify : 1.power and resistance 2. need single lead or double leads Specification ElectricalCharacteristicsRange of nominal resistance10~500Resistance tolerance2%, 5%Frequency0 ~2GHZWistand Voltage500V/1mmInsulation resistance 1GStanding wave rate1.2-1.3EnvironmentCharacteristicsRated power1-1200WTemperature range-55C~+125CTCR200PPM/CTemperature

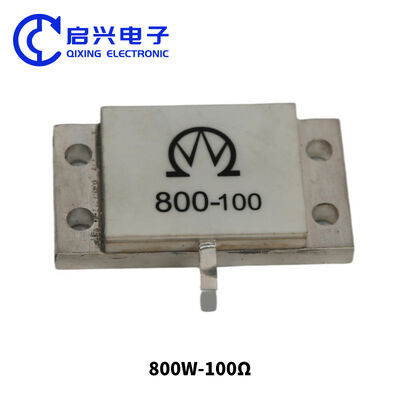

RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency
RIG High Power Flange Mount Terminations High-performance RF resistors available in 50 and 100 configurations with power ratings up to 1000W. Features compact design, stable performance, and easy installation for industrial applications. Product Specifications Electrical Characteristics Nominal resistance range: 1 - 500 Resistance tolerance: 5% Frequency range: 0-2GHz Standing wave ratio: 1.2-1.3 Insulation resistance: 1G Withstand voltage: 500V/1mm (substrate
500W 50 Ohm Flange Mount RF Resistor with High Power Termination
RF Resistor 50 Ohm 100 Ohm 500W Flange Mount Termination Resistor Product Overview Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Key Features & Applications Compact size with high power capacity Excellent high-frequency characteristics Reliable performance and easy installation Ideal for power distributors, isolation resistance, and terminal load
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor Product Overview Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Key Features Compact size with high power capacity Excellent high-frequency characteristics Reliable performance and easy installation Ideal for power distributors, isolation resistance and terminal load applications Technical Specifications
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 High Power Flange RF Resistor Series Professional-grade ceramic RF resistors offering power ratings from 20W to 1000W with resistance values ranging from 1 to 500. 800W 100 Ohms Terminal 800W 50 Ohms Terminal 800W 50 Ohms Resistors 800W 100 Ohms Resistors 800W Terminal Dimensions 800W Resistors Dimensions Product Features Compact size with high power handling capability Stable and reliable performance characteristics Easy installation and mounting Custom dimensions

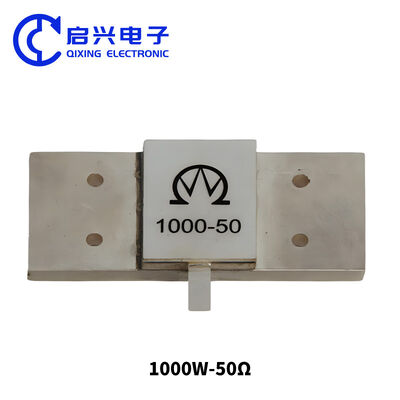

High Power 1000W Flange Resistor with ±300*10-6/℃ Temperature Coefficient and -55°C~+125°C Operating Temperature
High Power 1000W Flange Resistor 100 Ohm High Intensity Ceramic Resistor Product Features Small size with high power capacity Stable and reliable performance Easy installation process High intensity ceramic construction Electrical Characteristics Range of nominal resistance: 1-500 Resistance tolerance: 5% Frequency range: 0~2GHz Standing wave ratio: 1.2~1.3 Insulation resistance: 1G Withstand voltage: 500V/1 mm (Substrate thickness) Physical Characteristics Terminal
