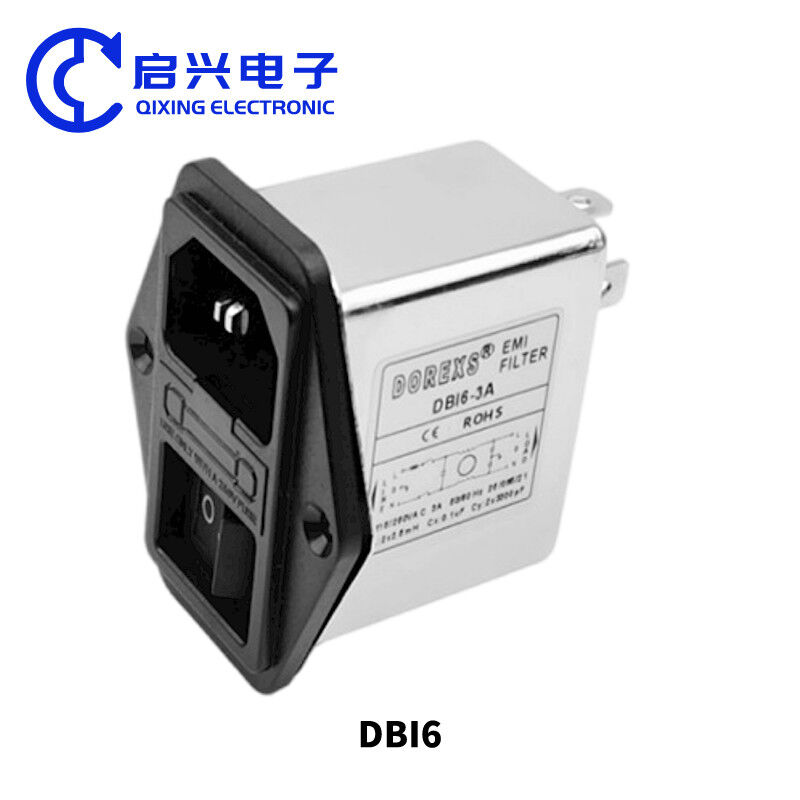

DBI6 EMI Filter AC Power Line Noise Filter 6A With IEC Socket

EMI Filter DBI6 AC Power 6A Low Pass with dual fuse and switch IEC socket power filter

PRODUCT NAME:

DBI5 with dual fuse and switch IEC socket power filter 1A 3A 6A 10A Single-phase AC 220VAC power supply noise filter (universal for AC and DC)

PRODUCT INTRODUCTION:

DBI6 comes with dual fuse and switch IEC socket power filter, single-phase AC 220VAC power noise filter (universal for AC and DC), small size, easy to install, customizable, strong anti-interference, high-performance features, AC power socket input, plug-in output connection, with fuse and switch.

The DBI6 series EMI power line noise filter adopts high-quality manganese zinc ferrite magnetic rings and capacitors, with first-class process quality and excellent performance. The series of products produced by our company have a standard IEC socket input interface. The IEC standard socket input+overcurrent fuse+filtering circuit+marine switch integrated design has small size, high cost-effectiveness, and convenient installation.

PRODUCT FEATURES

■Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
■Current 1A-10A
■IEC socket with single fuse and double fuse 3-in-1 filter module
■Standard 6.3*0.8 interface output, convenient and fast

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Product internal circuit diagram	Safety certification	Remark
DBI6-1A	1A	<0.5mA		CUL, CE ROHS	Support parameters can be customized
DBI6-3A	3A	<0.5mA
DBI6-6A	6A	<0.5mA
DBI6-10A	10A	<0.5mA

PRODUCT SIZE

INSERTION LOSS

————Common Mode----------Differential Mode

                                    DBI6-3A                                                                                DBI6-10A

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

​
